Roof Panel Forming Machine roll forming machine in Peru

Roof Panel Forming Machine roll forming machine in Peru

Packaging & Delivery

Selling Units: Single item

Single package size: 6500mm*1600mm*1800mm

Single gross weight:6500.000 kg

Package Type: nude

Lead Time :within 20-30 days

Features of Roof Panel Forming Machine:

1. More efficient and accurate execution of production orders;

2. High equipment reliability;

3. Little waste of materials and energy;

4. High productivity;

5. High quality materials, get a longer service life;

6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;

7. Customized coil processing solutions to solve all aspects of technical problems.

Technical parameter of Roof Panel Forming Machine:

Raw material GI,GL,PPGI,PPGL

Thickness of coil sheet 0.3-0.8 mm

Roller material adopt 45# steel,.And surface of rollers is grinded,polished and hard chromium plating with high precision.To ensure the smoothness of the chamfer, reduce the friction between the plate and rollers, and reduce the damage of the paint

surface of the steel coil.

Shaft material Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision.Stainless steel dust shield is mounted on the outside of the bearings.

Diameter of shaft 75mm

Main frame 350 H steel

Productivity 25m/min

Forming steps 16 rows

Middle panel 16mm

Hydraulic station power 7.5 KW

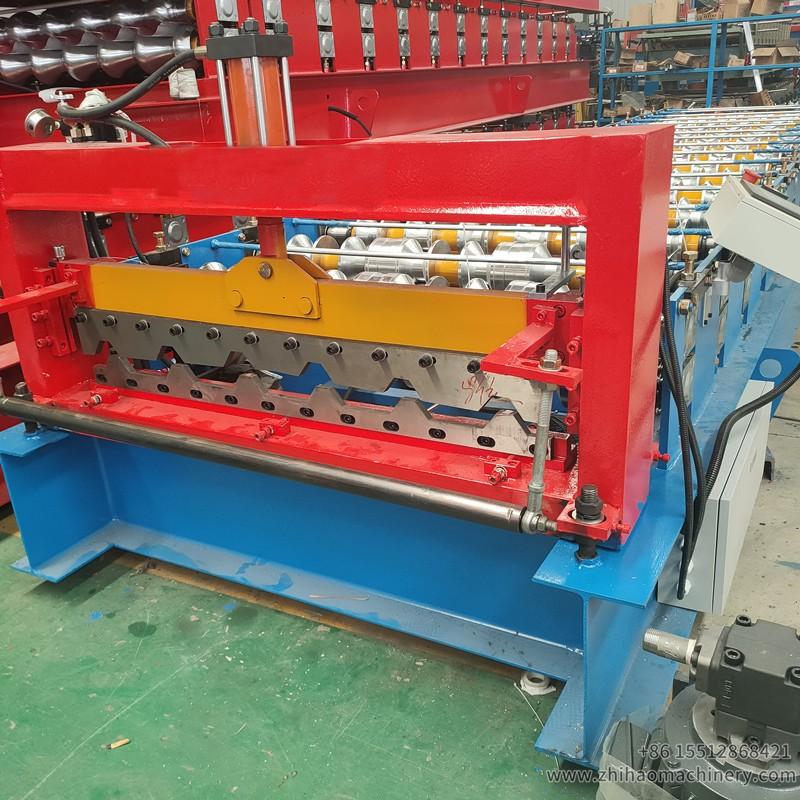

Material of cutting table Cr 12 mould steel with quenched treatment

Dimentision 8500mm*1600mm*1510mm

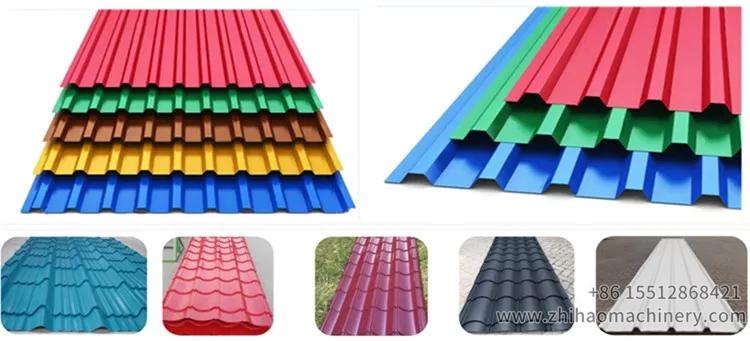

Finished product:

If have any interesting, pls contact freely. Roof Panel Forming Machine with high quality.
