máquina de valla de eslabones de cadena chain link fence machine

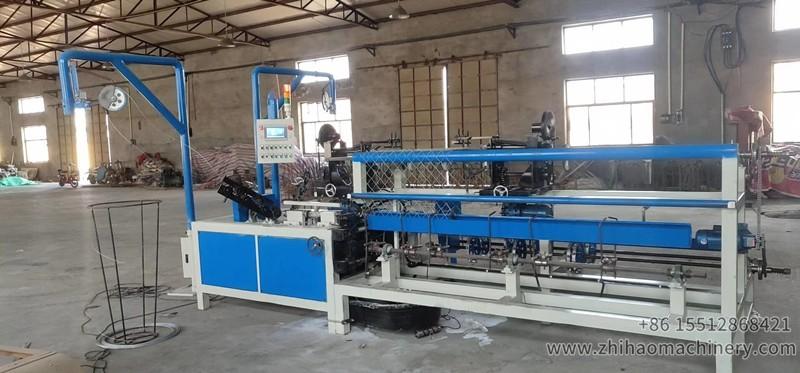

Model: 2-2000 chain link fence machine

holt sale to Mexico

máquina de valla de eslabones de cadena

Chain Link Fence Machine Description:

1.Through dies, two rods of wire become diamond-shape.

2.And then diamond-shape wire connects with wire inside the winding shaft.

3.Meanwhile, the sides of mesh can be twisted or knuckled.

4.Mesh width and mesh opening can be customized.

5.Application: extensively used as fences for playground and gardens, highway, railway and so on.

Model: 2-2000 Chain Link Fence Machine Technical Parameter:

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 2.0-4.5mm

Grid size: 25-120mm

Capacity: 50-120m2/h

Voltage: 3 phase 380v (if need other volatge, can custom made)

Power:

Major motor: 5.5kw Servo motor 1 set

Cutter: 2.2kw brake motor 1 set

lockrand: 0.75kw 3 phase motor 2 sets

rolling mesh: 0.75kw 3 phase motor 1 set (rolling mesh machine)

water pump: 30w motor 1 set

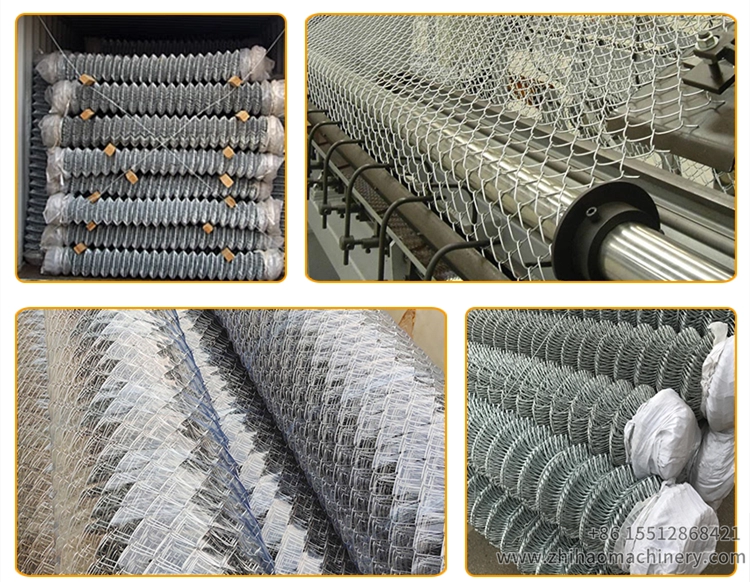

Finished work from Chain link fence machine:

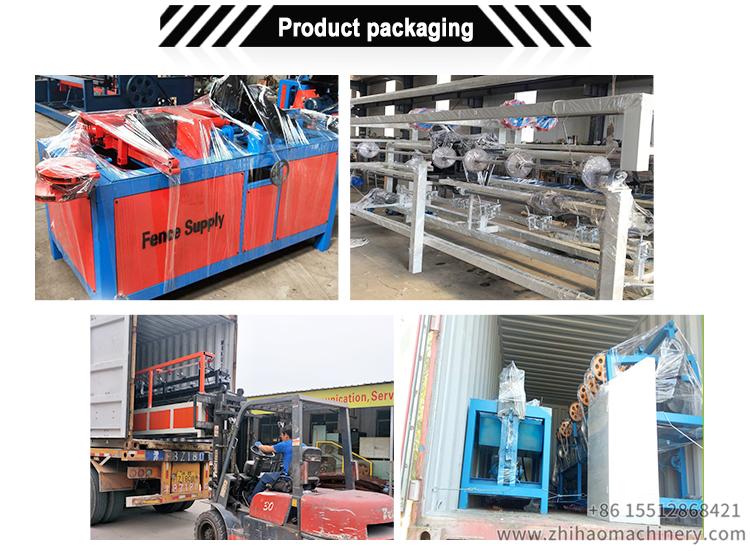

Delivery and Shippment, Chain link fence machine load in full container:

If have any interesting, pls contact us freely.
