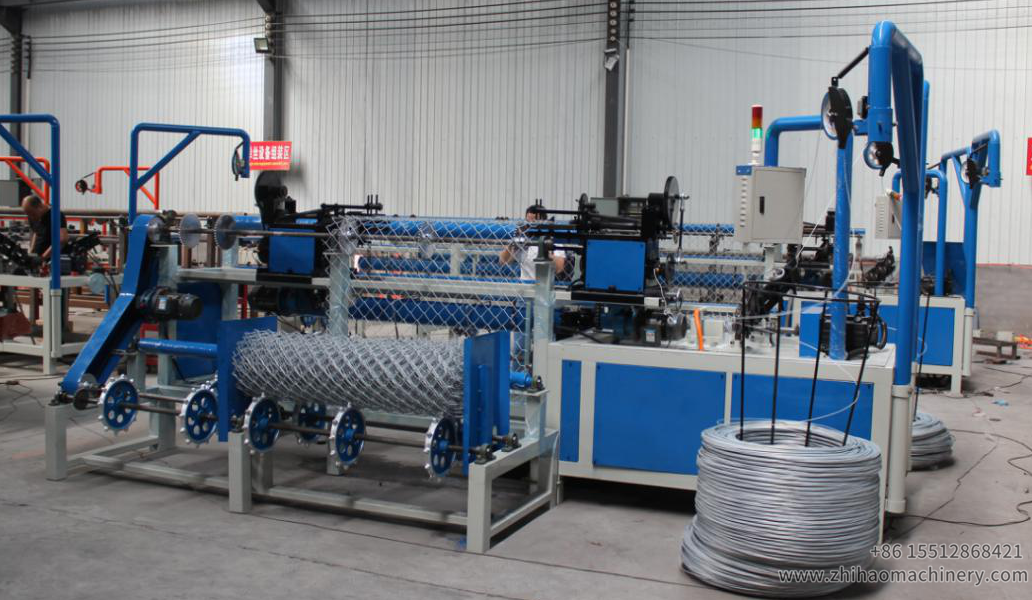

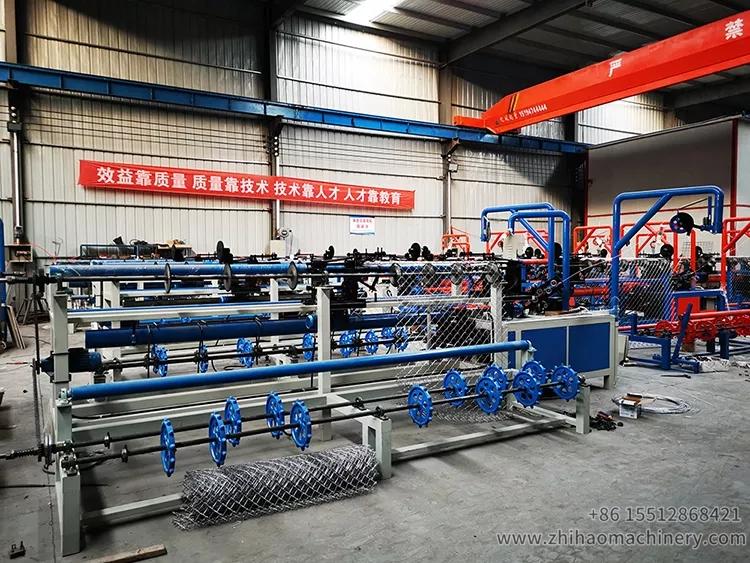

Full Automatic Double Wire Chain Link Wire Mesh Fence Machine

Full Automatic Double Wire Chain Link Wire Mesh Fence Machine

working video: https://youtu.be/Cm7okQE6lbE

The Automatic Double Wire Chain Link Wire Mesh Fence Machine is our company's advantage product. Through cooperation with German company, we have improved the technology and greatly improved the mechanical quality and output.

ThisAutomatic Double Wire Chain Link Wire Mesh Fence Machine is mainly used for animal husbandry fence. mechanical equipment protection mesh, highway guardrail, stadium fence, road green belt protection mesh. It can also be used in handicraft manufacturing.

This Automatic Double Wire Chain Link Wire Mesh Fence Machine can make galvanized wire, low carbon steel wire, aluminum alloy wire, PVC wire, etc. the mesh surface is smooth, beautiful, not easy to corrosion, long service life, beautiful and practical.

Technical parameter of Full Automatic Double Wire Chain Link Wire Mesh Fence Machine:

Model: 2-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 2.0-4.5mm

Grid size: 25-120mm

Capacity: 50-120m2/h

Voltage: 3 phase 380v   ( if need other volatge, can custom made)

Power:  Major motor: 5.5kw Servo motor 1 set   Cutter: 2.2kw brake motor 1 set

lockrand: 0.75kw 3 phase motor 2 sets
rolling mesh: 0.75kw 3 phase motor 1 set （rolling mesh machine）
water pump: 30w motor 1 set

Details parts of Full Automatic Double Wire Chain Link Wire Mesh Fence Machine:

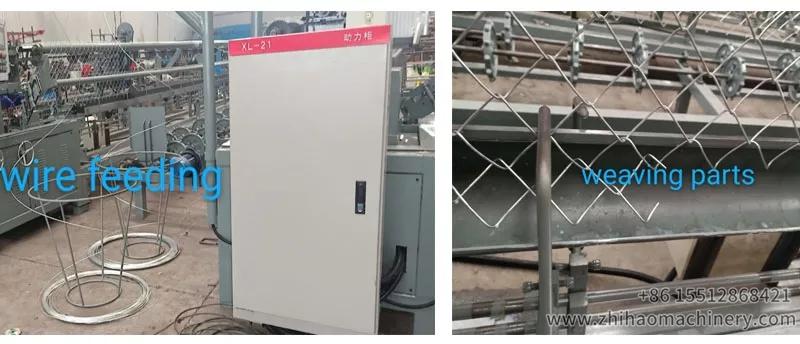

(1)Double wire feeding system

1,Double wire feeding can add speed of machine. this part can remove. It is easy for loading machine.

2,Two wires twist together,and turn into the finished mesh hole. so the production can be increased to max 180 Square Meter/ Hour.

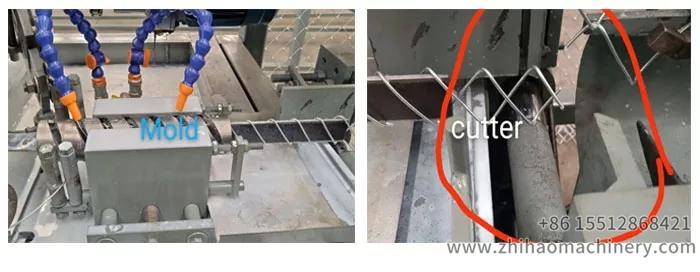

(2)Mould and Soap device

1,the material of the mould is specially treated, which increases the service life. Each machine will be equipped with three different sizes.

2,Soap water can lubricate machine & wire, which make working smoothly. the device can make soap water recycling.

(3)Mesh width adjustment

the machine increases the motor for adjusting the width of wire mesh and saves labor.

(4)Mesh Compacting system

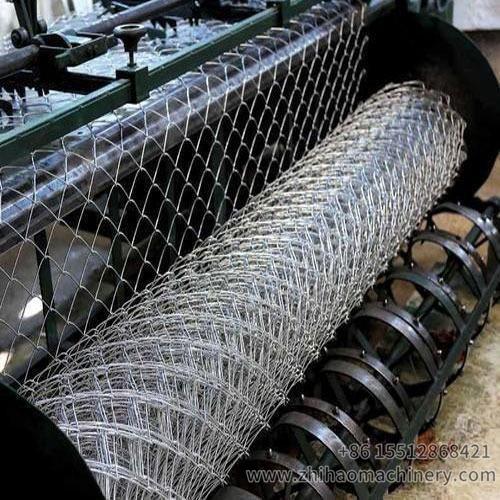

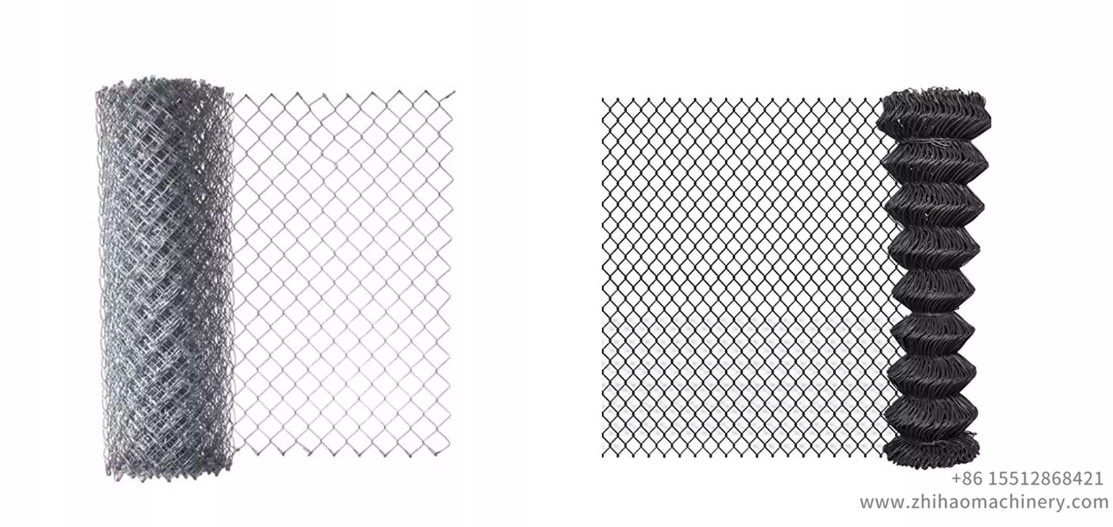

1,the finished wire mesh can be making into mesh rolls or compacted into bundles.

2,the mesh rolling machine and mesh Compacting machine, you can choose one of them.

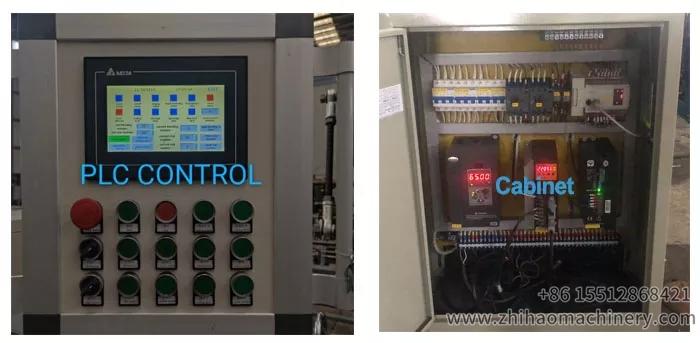

(5)Control system

the operating platform on the machine can be adjusted within a certain range, which is convenient for operation. the screen displays Chinese and English or more languages.

More details of Full Automatic Double Wire Chain Link Wire Mesh Fence Machine, pls contact zhihaomachinery freely!
