High speed screw eye hook forming making machine with threaded

High speed screw eye hook forming making machine with threaded
Specifications
1. low cost
2. fully automatic
3. protect the surface from rust and corrosion
4. produce according to customers' demand

High speed screw eye hook forming making machine with threaded

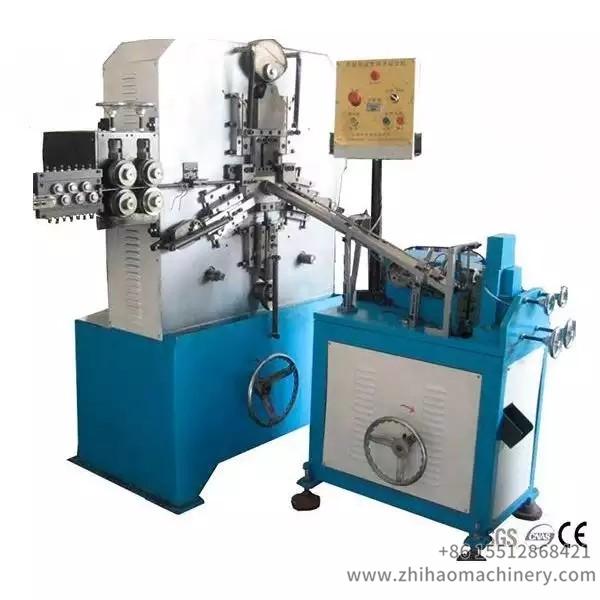

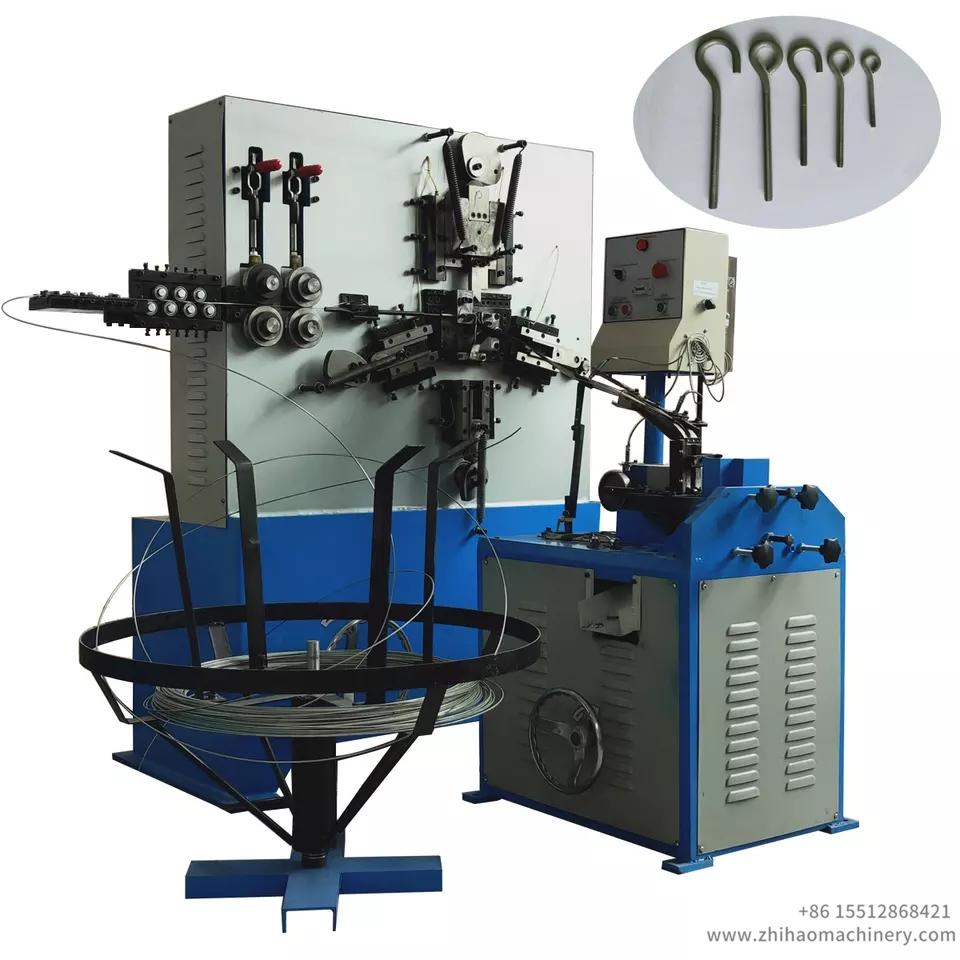

Automatic hook pin making machine is to expertly produce kinds of hooks fully automatically. This machine is with fully automatic threading. It is suitable for wire size from 2.0mm up to 5.0mm.

Its with high output and stable quality, once machine can achieve fully automatic in line, from feeding Straightening, cutting, bending, threading, labor saving and stable production.

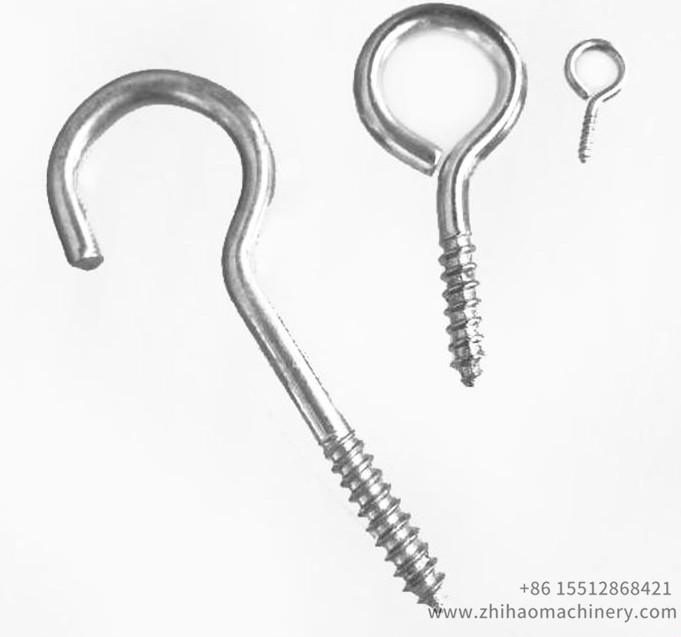

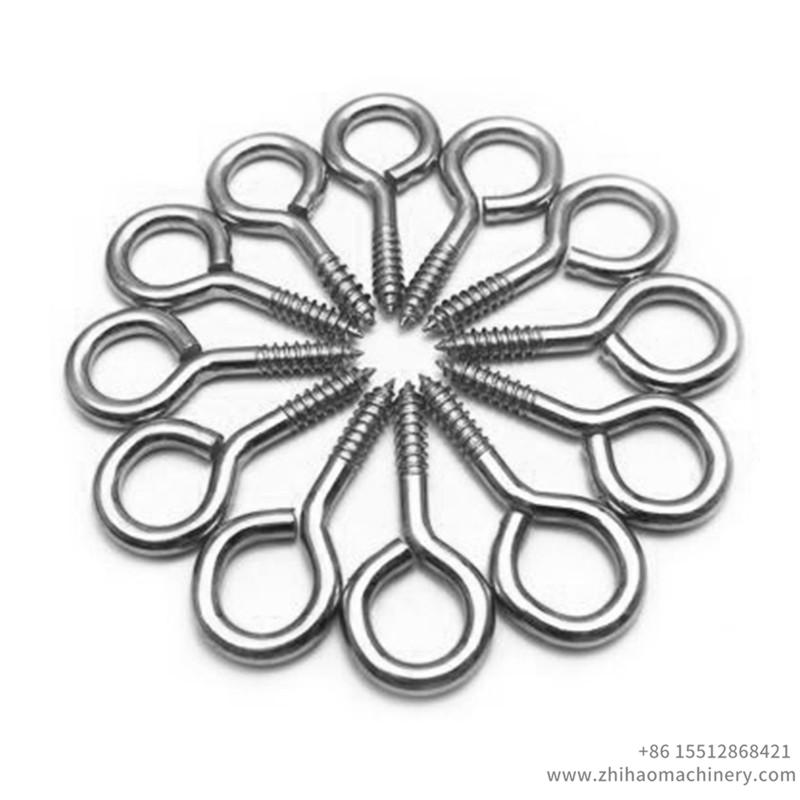

Shape: sheep eye ring, lamp hook, J hook, Hanger hook...

Technical parameter of eye hook forming making machine:

Model GT-HM-5

Line Diameter Iron:2.0-4.0mm Stls:1.5-3.5mm

Feeding Length 300mm

Motor Power 2.2kw

Production Capacity 50-60pcs/min

Threading lenght 15mm

Dimension(L*W*H) 176*130*175CM

Weight 1000kg
