Type: corrugated roof sheet making machine
Raw material: colord steel sheet or Galvanized steel sheet
Voltage: 3phase 380v 50Hz
Usage: roof, wall
Brand: ZHIHAO
Description: offered corrugated roof sheet making machine is available at market leading price.

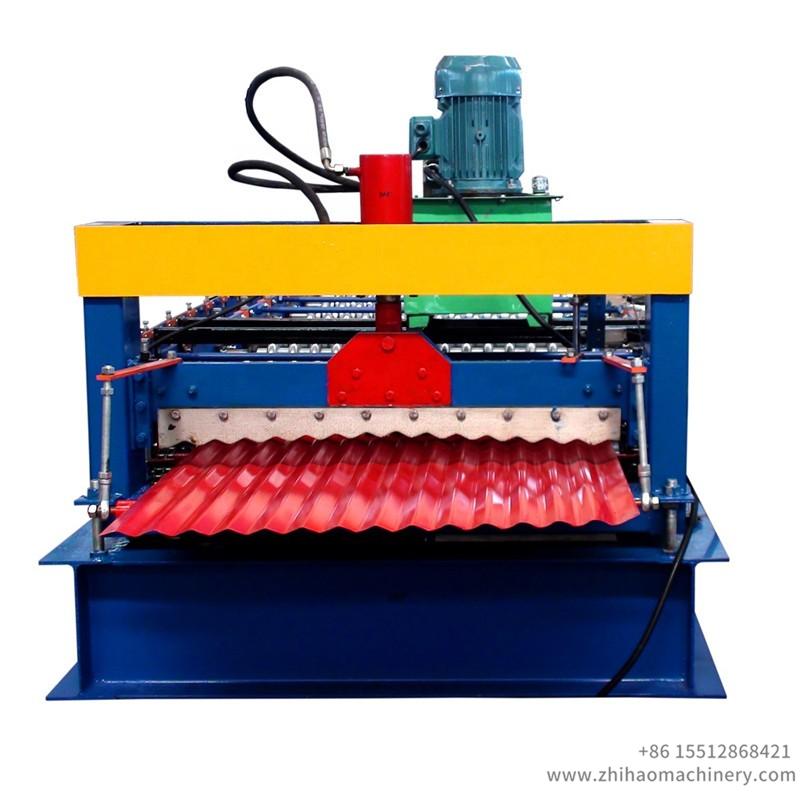

Corrugated roof sheet making machine
Suitable to process: Color steel plate
Width of the plate: 914mm/1000mm/1200mm/1220mm/1250mm
Thickness of the plate: 0.3-0.8mm
De-coiler: Manual one, can load 5 tons raw material

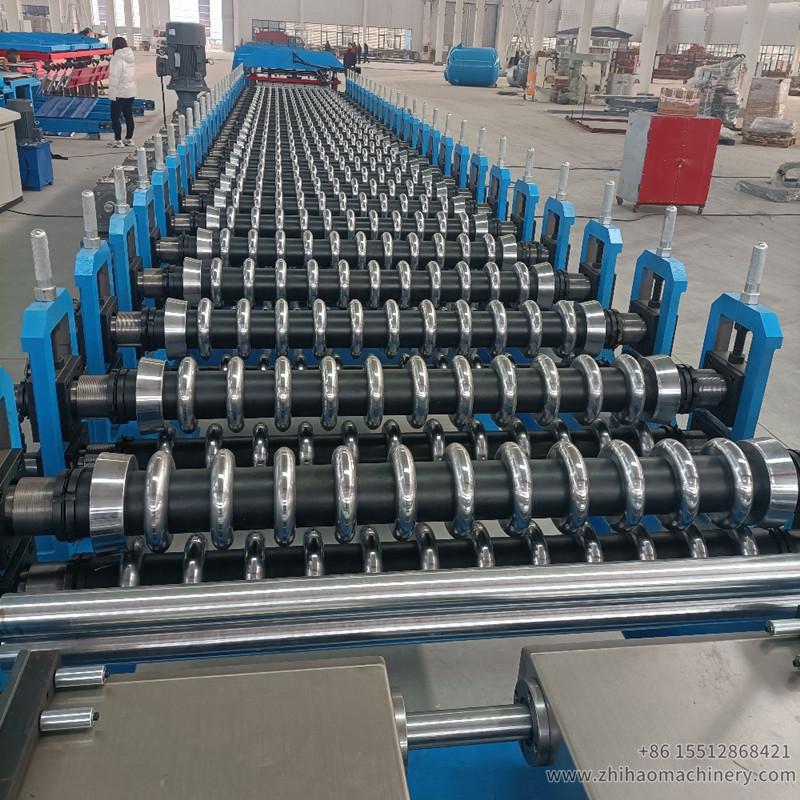

Rollers for forming: 16 rows
Diameter of the roller: 80mm
Rolling material: Carbon Steel 45#
Main motor power: 5.5kw
Material of the cutting blade: Cr12 mov
Hydraulic cutting power: 4kw
Processing precision: Within 1.00mm
Control system: Delta PLC control
Side panel of machine: 16mm
Main structure of the machine: 350 H steel
Weight: About 5T
Dimensions: 8.5*1.6*1.6m
Voltage: 380V 50Hz 3phases(changeable as needs)
Certificate: CE/ISO
Custom: According to customer's requirements
More details for Corrugated roof sheet making machine, pls contact zhihaomachinery freely.
