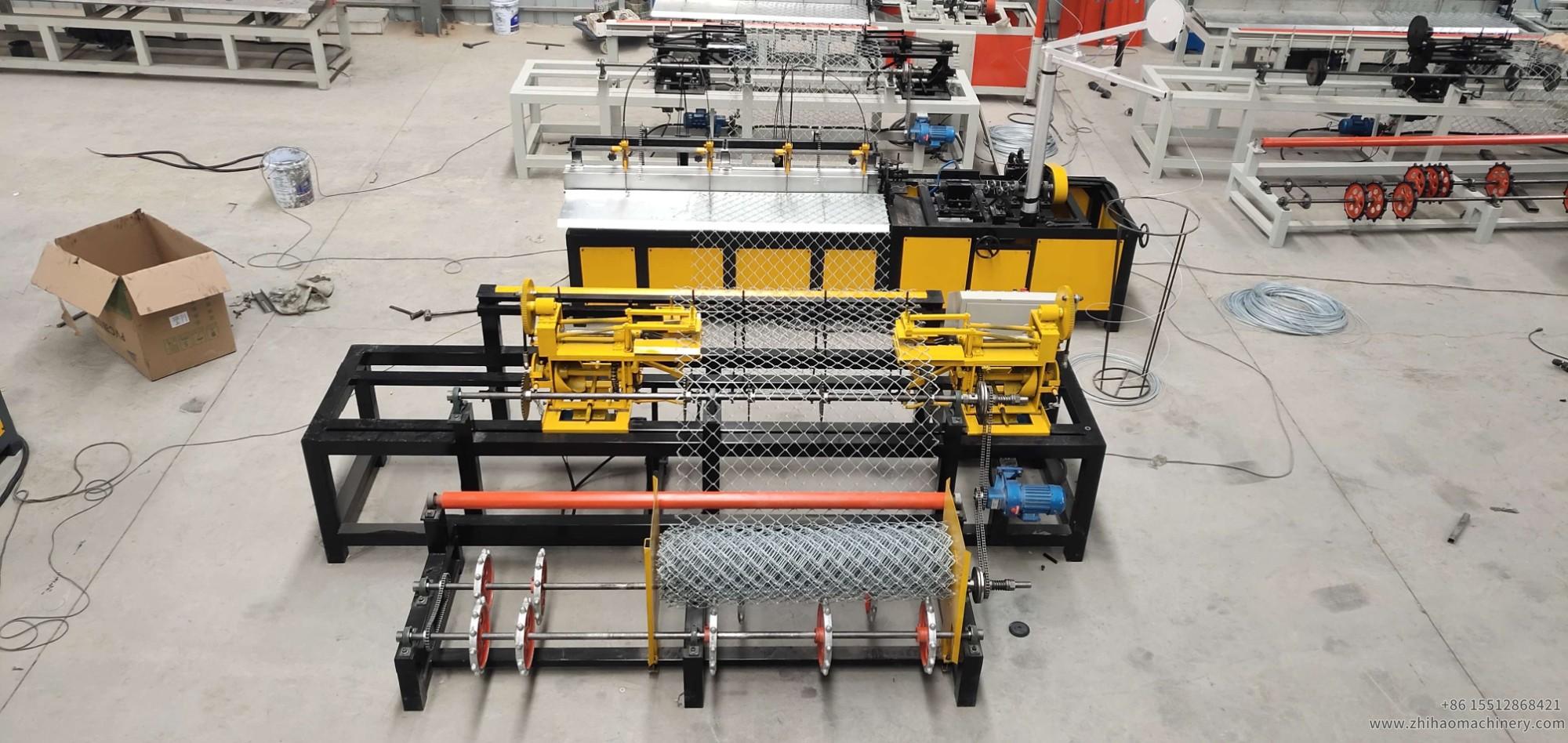

Galvanized wire single spiral chain link fence machine

Model: 1-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Brand: ZHIHAO
Description: The galvanized wire single spiral chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable. Easy operation and high-speed efficiency.

Galvanized wire single spiral chain link fence machine

Model: 1-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension: netting 3.8m *1m *2.2m, lockrand 3.7m *1m *1.4m, rolling mesh 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 1.2-4.5mm

Grid size: 25-120mm

Capacity: 30-100m2/h

Voltage: 3 phase 380v ( if need other volatge, can custom made)

Power:

Major motor: 3.8kw Servo motor 1 set

Flap: 1.1kw brake motor 1 set
Cutter: 0.75kw 3 phase motor 1 set
Lockrand: 0.75kw 3 phase motor 2 sets
Rolling mesh: 0.75kw 3 phase motor 1 set（rolling mesh machine）
water pump: 30w motor 1 set

Galvanized wire single spiral chain link fence machine with factory price.
