Chain Link Fence Machine for sale

Chain Link Fence Machine for sale

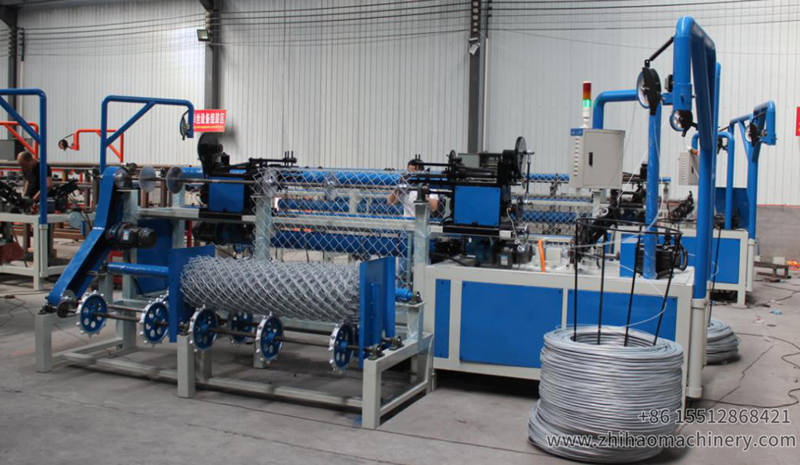

Single wire full automatic chain link fence machine is single wire feeding, it can work with wire diameter from 1.3mm to 4.5mm and hole size from 25*25mm to 120*120mm

Single wire machine has less requirements about wire softness, so it can work with hard wire, especially wire made in India.

What is the technical parameter of the chain link fence machine:

Model: 1-2000

Machine width: 2m

Wire mesh width: 0.5-2m

Overall dimension:  netting 3.8m *1m *2.2m, lockrand 3.7m *1m *1.4m, rolling mesh 2.7m *1m *0.7m

Machine weight: 1700kg

Wire diameter: 1.2-4.5mm

Grid size: 25-120mm

Capacity: 30-100m2/h

Voltage: 3 phase 380v   ( if need other volatge, can custom made)

Power: Major motor: 3.8kw Servo motor 1 set

Flap: 1.1kw  brake motor 1 set

Cutter: 0.75kw 3 phase motor 1 set

Lockrand: 0.75kw 3 phase motor  2 sets

Rolling mesh: 0.75kw 3 phase motor 1 set （rolling mesh machine）

water pump: 30w motor 1 set

More details of chain link fence machine, pls contact zhihaomachinery freely!

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421
