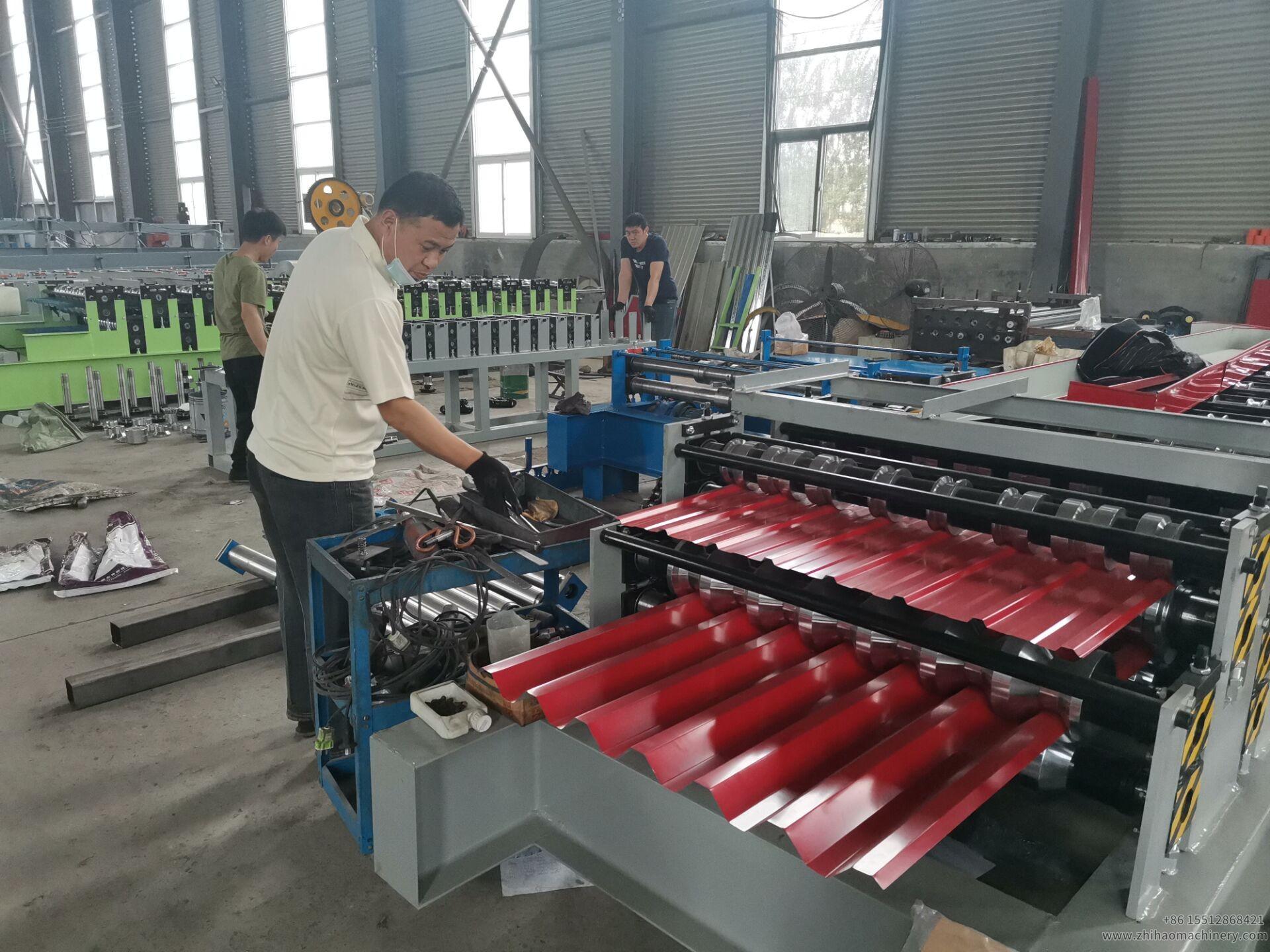

Trapezoidal steel sheet profile roll forming machine

Trapezoidal steel sheet profile roll forming machine

Features of sheet profile roll forming machine:

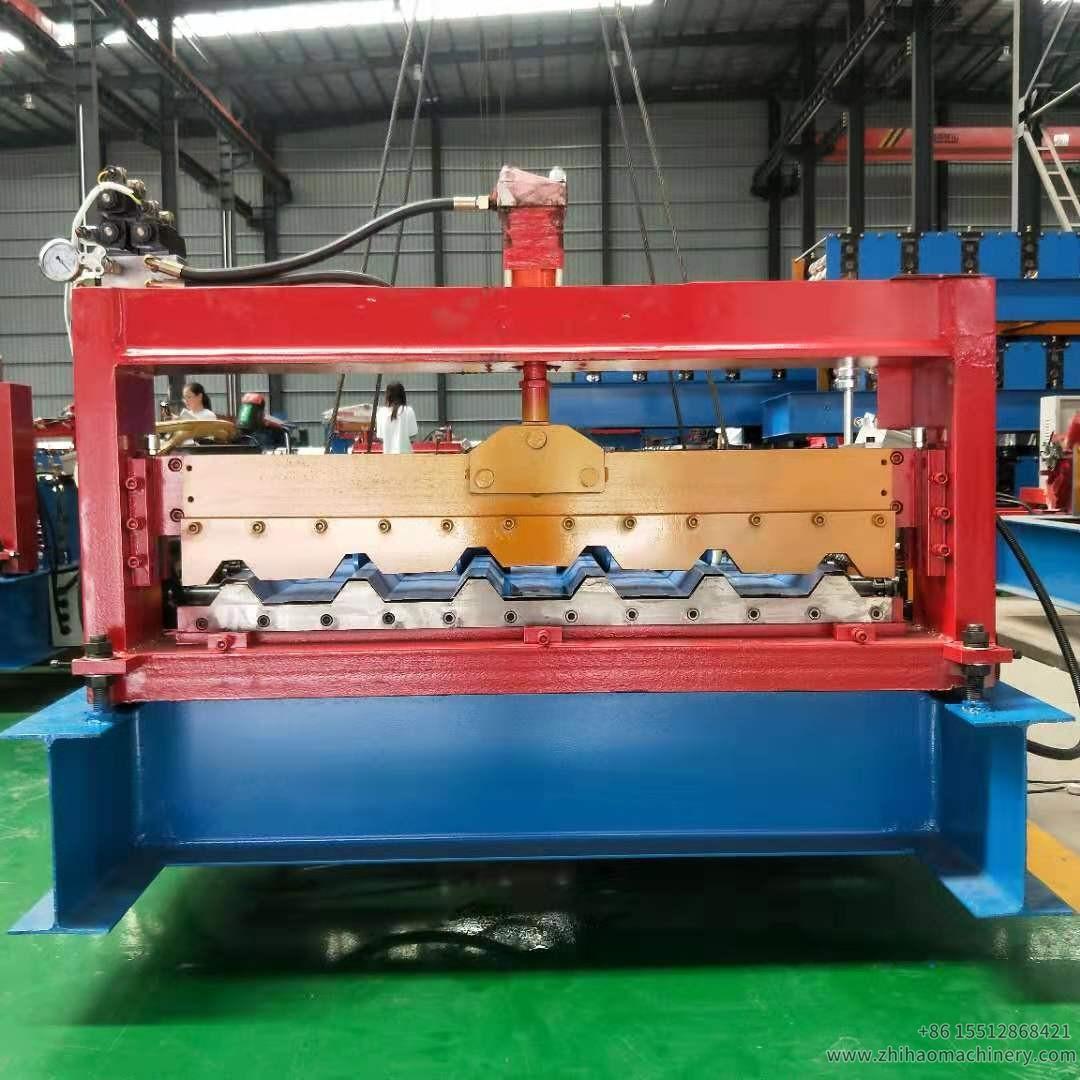

Hydraulic shearing adopts vertical punching shearing, with large shearing force and no burr.

It adopts the hydraulic driven and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,quenching treatment.

The shear adopts the vertical punching type, the overall frame structure, the slide positioning type.Shear strength is strong, convenient maintenance.

Machine language can be set as your requirement.

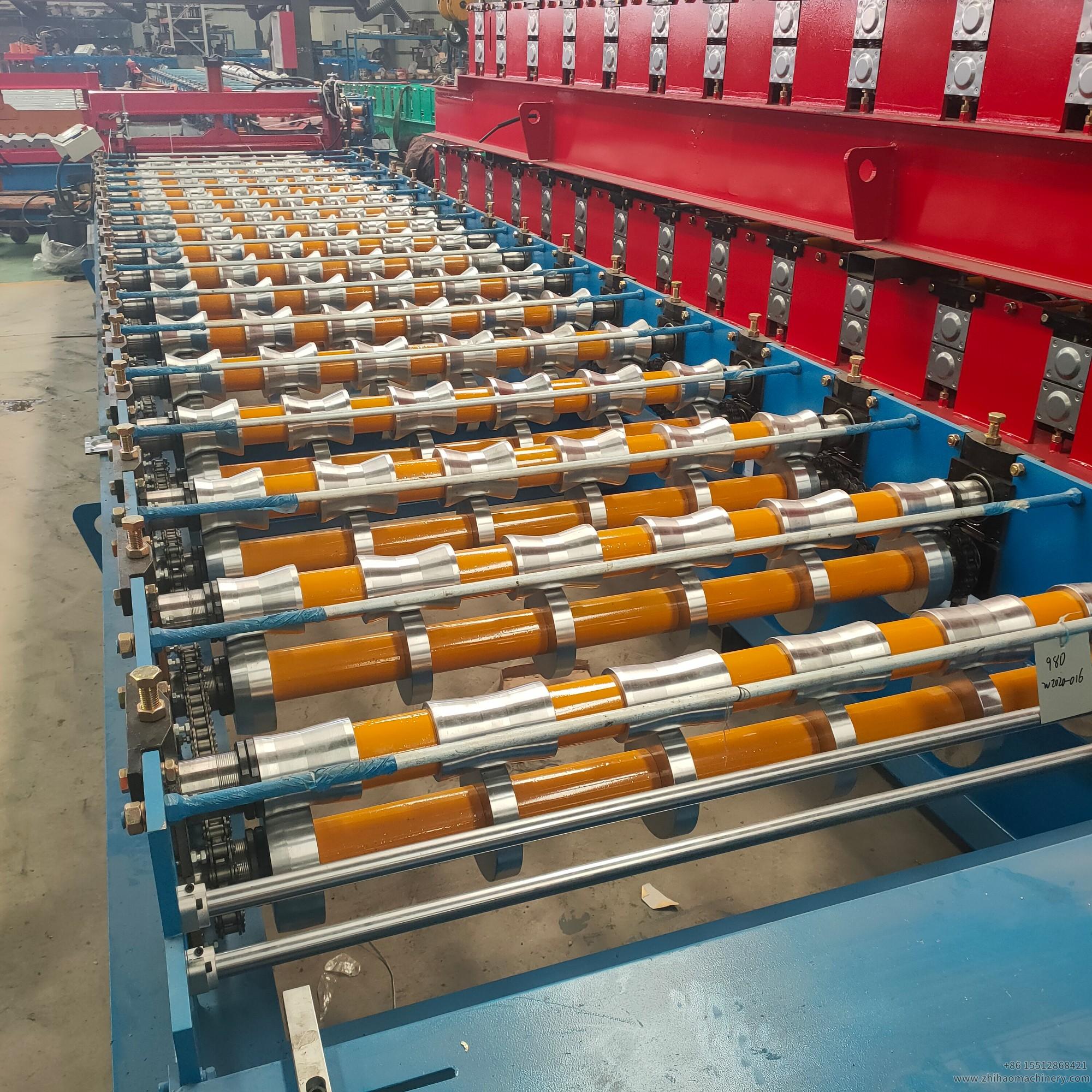

Material of rollers:45# steel, roller surface polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Design safety cover for machine according to customer requirement.

Ensure the safety of operators.

Technical parameter of Trapezoidal steel sheet profile roll forming machine:

Raw material GI,GL,PPGI,PPGL

Thickness of coil sheet 0.3-0.8 mm

Roller material adopt 45# steel,.And surface of rollers is grinded,polished and hard chromium plating with high precision.To ensure the smoothness of the chamfer, reduce the friction between the plate and rollers, and reduce the damage of the paint

surface of the steel coil.

Shaft material Shafts of forming adopt 45# steel,after balance correction,are grinded,polished with high precision.Stainless steel dust shield is mounted on the outside of the bearings.

Diameter of shaft 75mm

Main frame 350 H steel

Productivity 25m/min

Forming steps 16 rows

Middle panel 16mm

Hydraulic station power 7.5 KW

Material of cutting table Cr 12 mould steel with quenched treatment

Dimentision 8500mm*1600mm*1510mm

Application of Trapezoidal steel sheet profile roll forming machine:

More details for Trapezoidal steel sheet profile roll forming machine, pls contact zhihaomachinery freely.
