High speed thread making machine pipe thread roller machine

High speed thread making machine pipe thread roller machine

Advantages

1.Designed specially for full-thread tube-type parts, easy to operate.

2.The spindle is controlled by frequency converter, the rotation speed can be adjusted as you want.

3.Adopt hydraulic circuit control for feeding, so the tool forward smoothly,easy to operate.

4.With heating treatment for driving gear with lower noise and high wear resistance

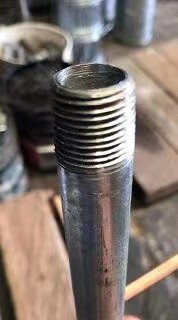

5.Suitable for the industries like connector, bicycle, auto fittings and oil tube joint, etc

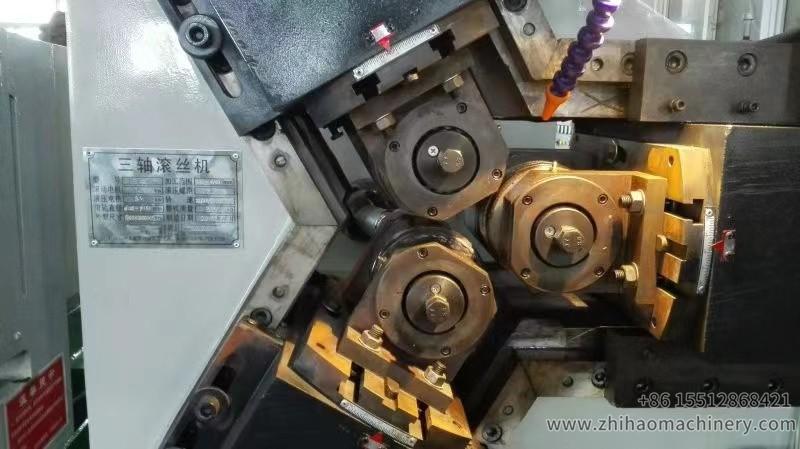

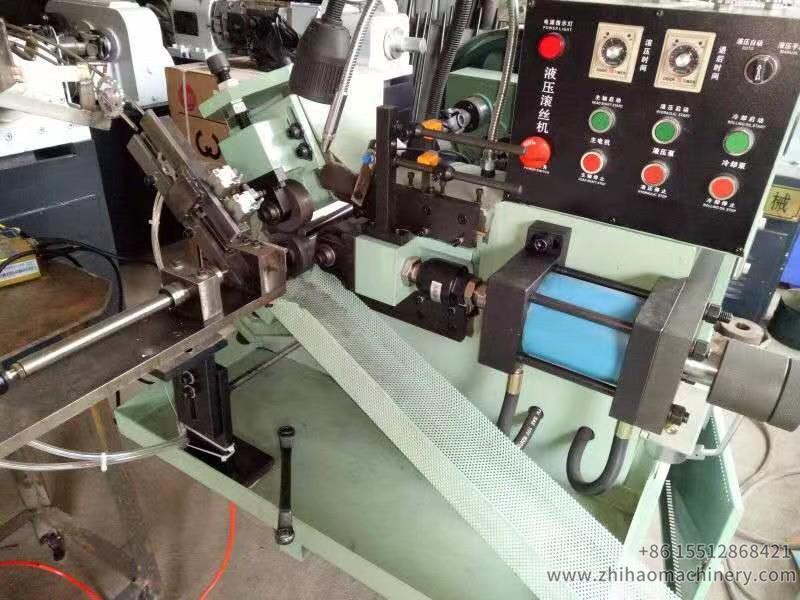

Model ZP28-40 High speed thread making machine pipe thread roller machine

Technical parameter

Rolling thread range Diameter 50mm

Max thread pitch 6mm

Spindle angle ±5°

Max rolling pressure 120kn

Spindle RPM CVT

Roller size range Outside diameter 65-140mm

Hole 35/45mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 4.0kw

Hydraulic transmission power 1.5kw

Dimension 1400*1400*1500mm

Weight 1350kg
