Hydraulic three roll thread rolling machine scaffolding threading machine

Hydraulic three roll thread rolling machine scaffolding threading machine

Model: ZP28-65
Max rolling diameter: 80mm
Max rolling thread pitch: 8mm
Rolling pressure: 250kn
Brand: ZHIHAO
Description: This pipe thread rolling machine is mainly used for a variety of external threads, including ordinary screw, trapezoidal thread and module thread. In addition, It is also capable of forming, rolling light, knurling and other machining processes.

Hydraulic three roll thread rolling machine scaffolding threading machine

Model ZP28-65 automatic pipe thread rolling machine

Rolling thread range Diameter 80mm

Max thread pitch 8mm

Spindle angle ±6°

Max rolling pressure 250kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 180mm

Hole 54mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss

Spindle drive power 11kw

Hydraulic transmission power 3.0kw

Dimension 1800*2200*1800mm

Weight 3100kg

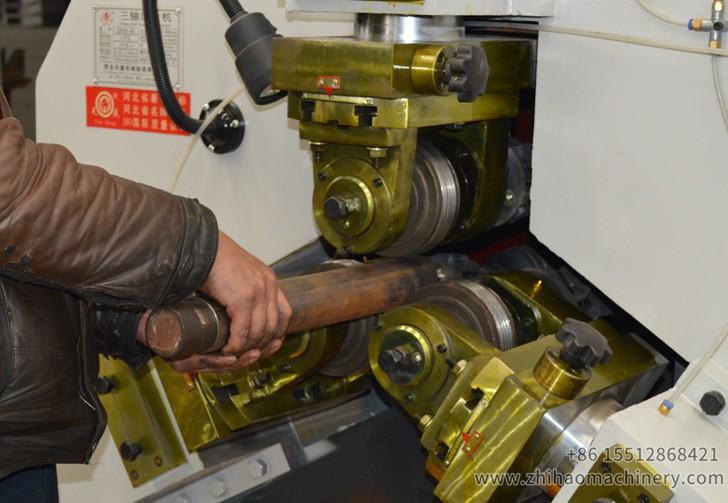

1.Three spindle of the automatic pipe thread rolling machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Three rolling wheels make the work as required and other thread shape by rolling.

2.This hydraulic pipe thread rolling machine is mainly composed of an organism, rotating box,fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seatmain function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This pipe screw thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
