Automatic Scaffolding Machine

Model: ZP28-65
Max rolling diameter: 80mm
Max rolling thread pitch: 8mm
Rolling pressure: 250kn
Brand: ZHIHAO
Description: The equipment adapt to all kinds of materials, such as carbon steel, alloy steel and non-ferrous metals.These material extension rate is greater than 10% and the compressive strength is less than 100kgf/m²

Automatic Scaffolding Machine

working video: https://youtu.be/F6vGe4BclfM

technical parameter, zhihaomachinery

description, zhihaomachinery

Automatic scaffolding machine Thread rolling machine is a kind of multi-function cold extrusion forming machine, and the spinning function can process the thread, straight grain and twill rolling in the cold state within the range of the rolling pressure.Rolling of straight teeth, oblique teeth and helical spline gear;Straightening, reducing, rolling and all kinds of forming rolling.The machine has a safe and reliable electrical - hydraulic execution and control system that allows each working cycle to be selected in three ways: manual, semi-automatic and automatic.The cold rolling process of rolling wire is an advanced non-cutting process, which can effectively improve the internal and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsion strength of the workpiece. It is an ideal process with high efficiency, energy saving and low consumption.

pipe thread rolling machine, zhihaomachinery

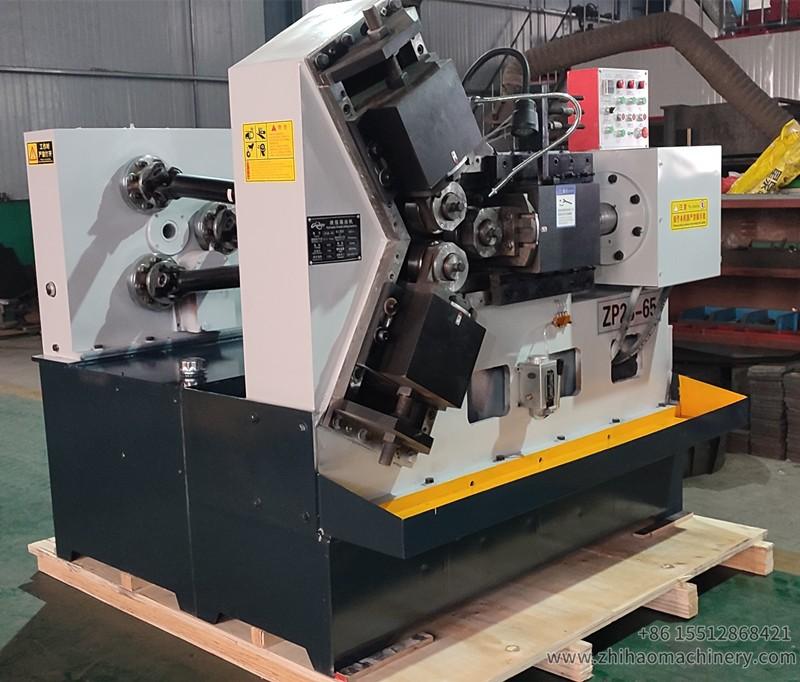

1.Three spindle of the pipe thread rolling machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Three rolling wheels make the work as required and other thread shape by rolling.

2.This Automatic Scaffolding Machine pipe thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This automatic pipe thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

photos, zhihaomachinery
