steel rebar stirrup bending hoop machine in Colombia

Model: KT6 steel rebar stirrup bending hoop machine in Colombia
Max single bending diameter: 16mm
Max double bending diameter: 12mm
Total power: 52.5kw
Brand: ZHIHAO
Dimension: 4000*2000*2200mm
Weight: 3000kg
Average power: 12kw/h

steel rebar stirrup bending hoop machine in Colombia

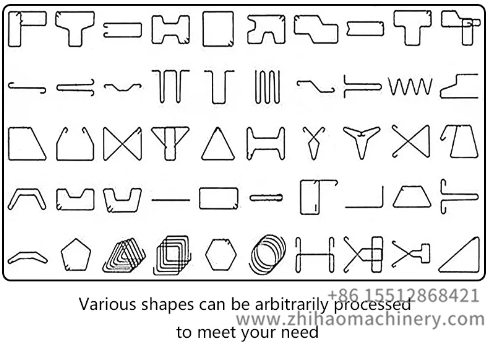

1.CNC control, the machine can process more than 500 types stirrup.

2.Bend in two directions and two end bend ,meet you various need.

3.Large Inclined plane design can process maximum 2000*2000mm big size.

4.Widened machine body, more stable when working.

5.INVT brand servo motor, guarantee high quality of machine.

Technical parameter:

Model KT6 double bending way

Single wire 5-16mm

Double wire 5-12mm

Max bending angle ±180°

Max traction speed 75m/min

Max bending speed 800°/sec

Dimension 4000*2000*2200mm

Machine color Yellow (customized)

Total power 52.5kw(include air compressor)

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 12kw/h

Weight 3000kg

Optional with long platform

stirrup bending hoop machine, zhihaomachinery

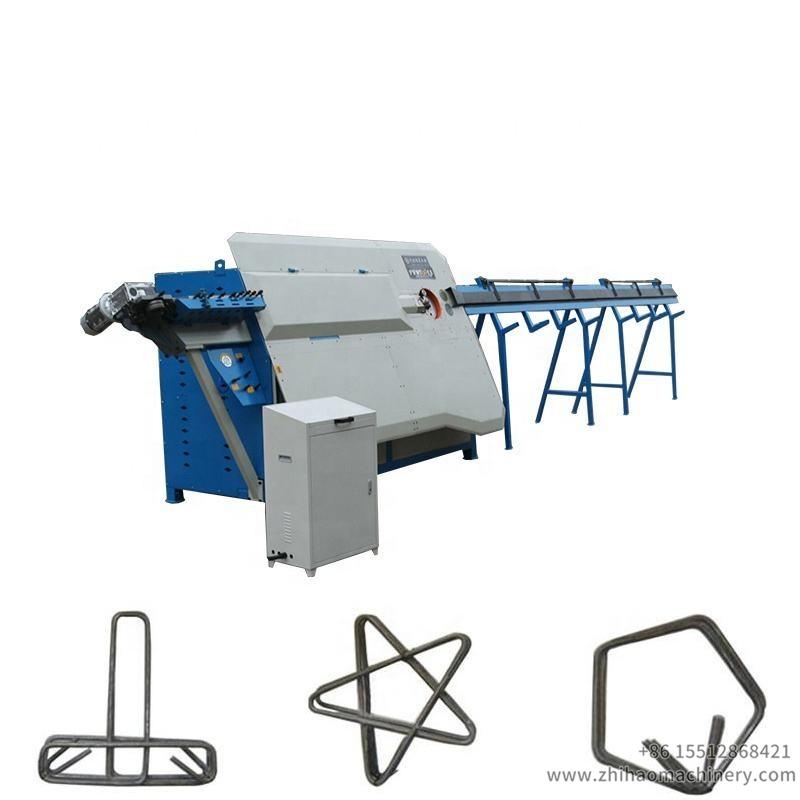

Detailed photos of steel rebar stirrup bending hoop machine:

rebar stirrup bending machine, zhihaomachinery

Application of steel rebar stirrup bending hoop machine:

Widely used in construction industry and rebar manufacturing enterprise; for steel wire rod, steel bar, steel rebar, ribbed bar, round coil bar, etc.
