Rebar stirrup bending machine make stirrups for concrete slabs, floors, walls, footings

Rebar stirrup bending machine make stirrups for concrete slabs, floors, walls, footings

Technical parameter:

Model KT5 double bending way

Single wire Straight rebar 14mm Ribbed steel bar 5-12mm

Double wire 5-10mm

Max bending angle ±180°

Max towing speed 75m/min

Max bending speed 1000°/sec

Dimension 3850*1200*2200mm

Machine color Yellow (customized)

Process piece ≤ 2

Total power 32kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 2200kg

Long platform 3460*900*2000mm

Description of rebar stirrups bending machine:

1.The equipment adopts CNC servo control system can automatically complete the straightening, sizing, bending, cutting, and other processes.

2.Develop No.3 use Schneider electric parts ,international famous brand, good quality.

3.The machine can bend maximum diameter 14mm deformed bar.

4.Develop No.3 uses a plastic spraying process,more wear resistant.

5.No.3 can bend in two directions ,more than 500 types shapes.

6.The device is widely used in the construction industry, large steel processing plants and other fields.

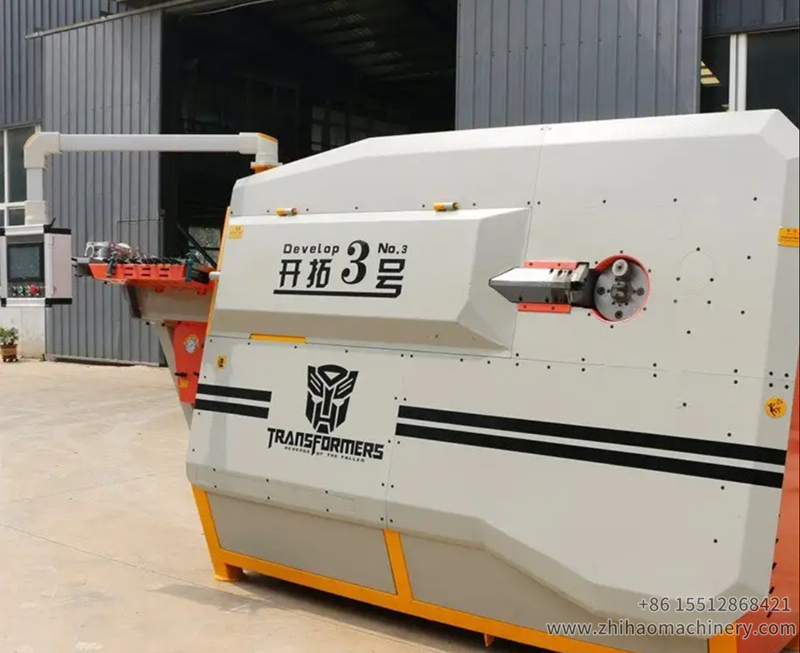

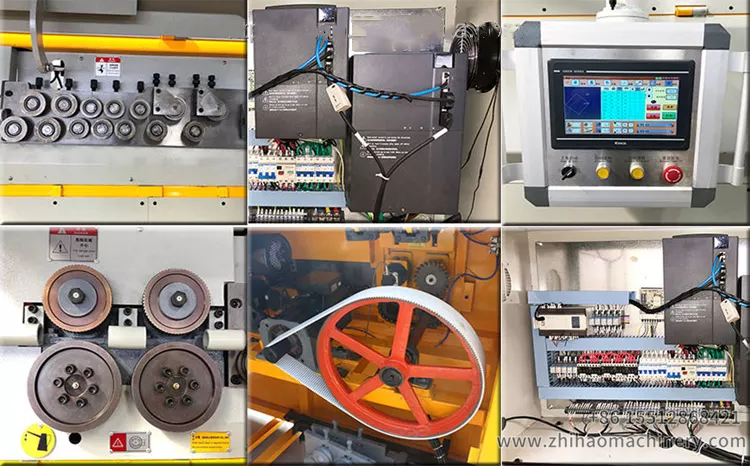

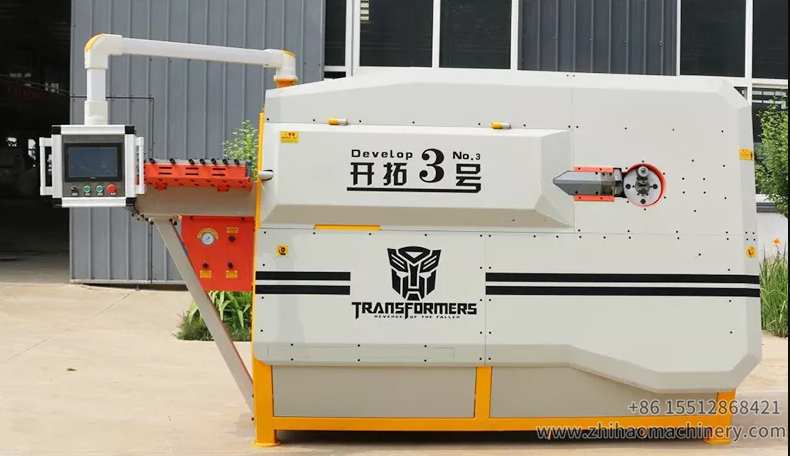

Detailed photos of Construction tool cnc automatic rebar stirrup bending machine:

If have any interesting fo rebar bending stirrups machine, pls contact us freely!
