Automatic stirrup benders

Automatic stirrup benders

Advantages of automatic stirrup benders:

1, combine with horizontal and vertical straightening wheels, drive by Invance brand 52.5kw servo motor, make sure best accuracy

when straightening rebar.

2, bending spindle could rotating and telescope in high speed, could cut rebars very quick with high bending precision.

3, large storage capacity can save many processing graphics,

4, Fatek or Simens control system, touchscreen, Inovance servo motor.

5, straightening, measure length, bending, shear at same time, processing in high efficiency.

Technical parameter of automatic stirrup benders:

Model KT6 double bending way

Single wire 5-16mm

Double wire 5-12mm

Max bending angle ±180°

Max traction speed 75m/min

Max bending speed 800°/sec

Dimension 4000*2000*2200mm

Machine color Yellow (customized)

Total power 52.5kw(include air compressor)

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 12kw/h

Weight 3000kg

Optional with long platform

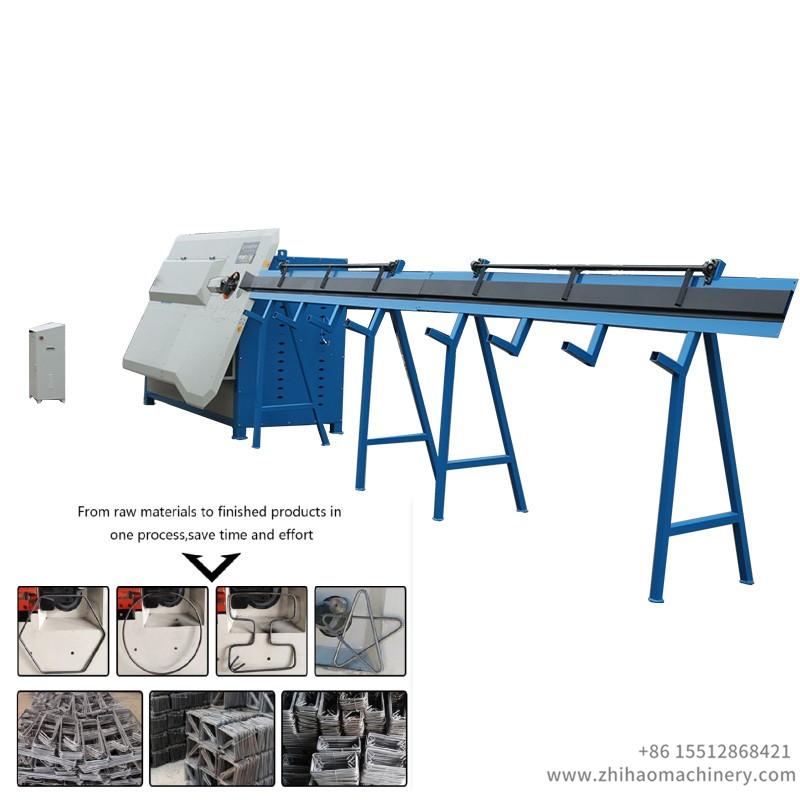

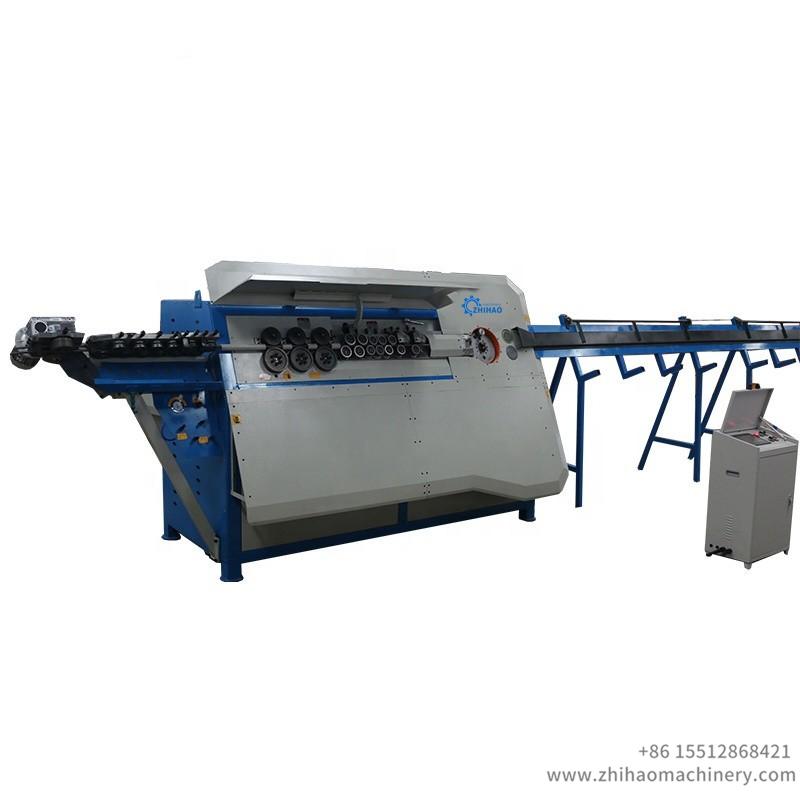

Detailed photos of automatic stirrup benders:

Application of automatic stirrup benders:

Widely used in construction industry and rebar manufacturing enterprise; for steel wire rod, steel bar, steel rebar, ribbed bar, round coil bar, etc.

If have any interesting for automatic stirrup benders, pls contact us freely.
