Hydraulic rebar thrufeed thread rolling machine

Hydraulic rebar thrufeed thread rolling machine

working video: https://youtu.be/nVE42vJqS-o

Application of thread making machine:

1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.

2.This threading rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This threaded rod rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

China zhihaomachinery - hydraulic rebar thrufeed thread rolling machine can rolling many threads.

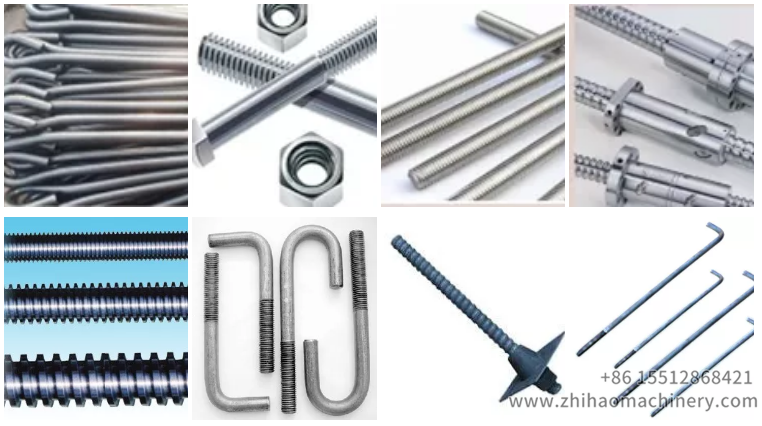

The below photos are parts of samples. And we can customized any type thread & full thread roller and partical thread roller.

For example:

1 1/2 '----- 8 UN

2' ----  4.5 UNC

3/4 ' --- 10UNC

1 1-2  -----6 UNC

3/4' ---- 16 UNF

M24*3

M30*3.5

M36*4

M42*4.5

3/4' -- 10 UNC

1'---8 UNC

1 1/4' --7 UNC

1 1/2' --6 UNC

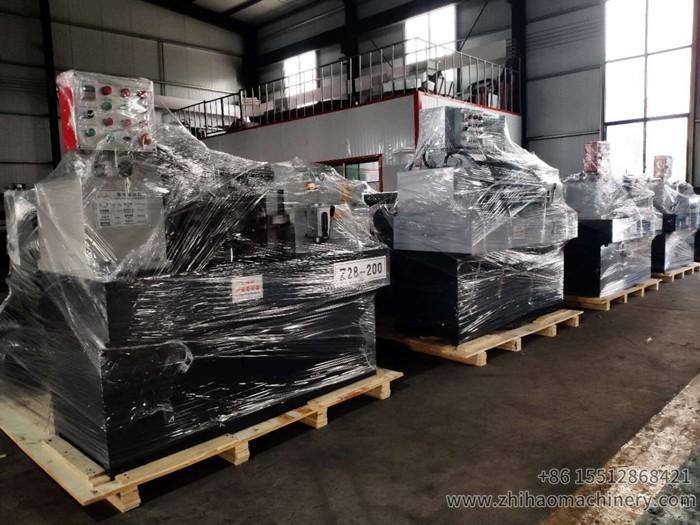

Model Z28-200 threaded rod thread rolling machine technical parameter:

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg

If have more questions for hydraulic rebar thrufeed thread rolling machine, pls contact zhihaomachinery freely.
