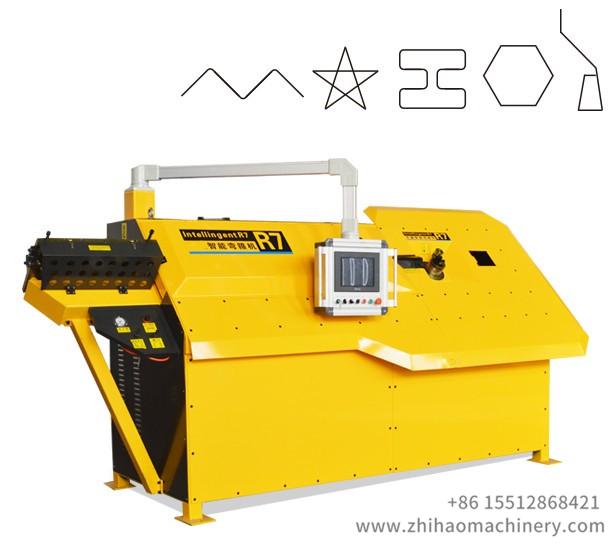

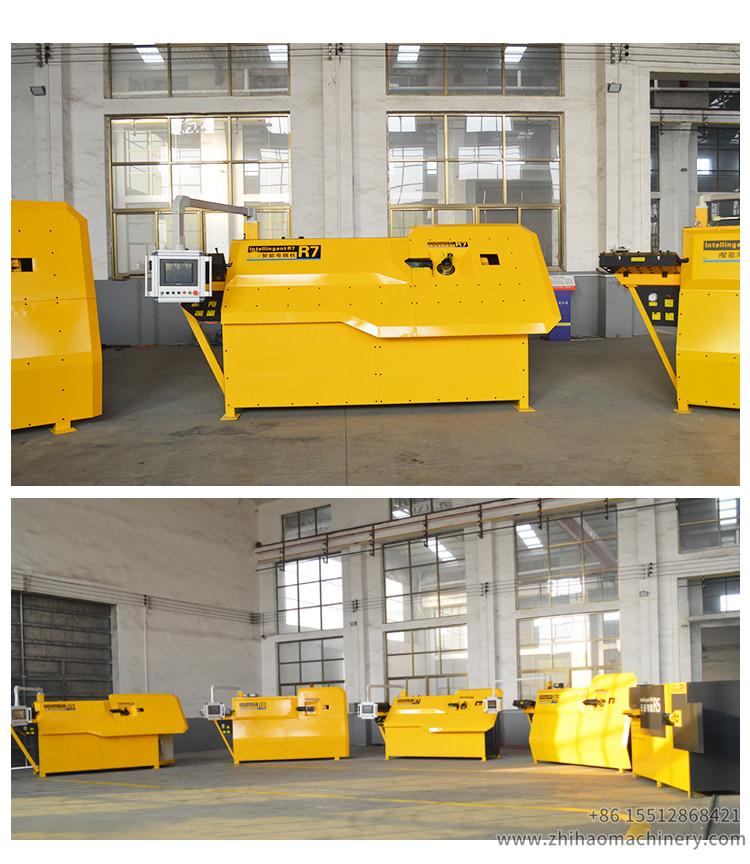

Model: R7 cnc stirrup bending machine
Max single bending diameter: 10mm
Max double bending diameter: 8mm
Total power: 21kw
Brand: ZHIHAO
Dimension: 3.3*1*1.98m
Weight: 2000kg
The equipment adopts PLC controller ,can process all kinds of stirrup and hook stirrup,it can automatically complete straighten,size,bend and cut.
R7 cnc stirrup bending machine vietnam
working video: https://youtu.be/m74OX7rfqgg
The equipment adopts PLC controller, can process all kinds of stirrup and hook stirrup, it can automatically complete straighten, size, bend and cut.

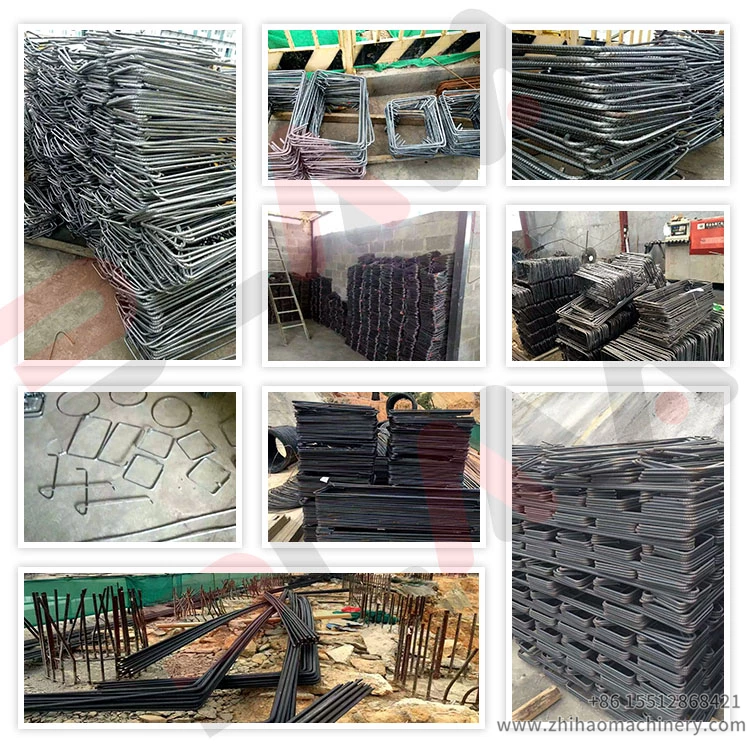

The maximum diameter can be bent is 10mm,It can process any 2D shapes, widely used in construction site and processing plants.
Technical parameter for cnc stirrup bending machine:
Model: R7 double direction way cnc stirrup bending machine
Single processing capacity: 4-10mm
Double processing capacity: 4-8mm
Max Bending Angle: 180°
The angle of the degree of accuracy: ±1°
Total power: 21kw
Servo –motor: 9.5kw
Bending motor: 3.7kw
Cutting and air pump power: 4kw
Weight:2000kg
Dimensions: 3.3*1*1.98m
More details of R7 cnc stirrup bending machine, pls contact zhihaomachinery freely!
