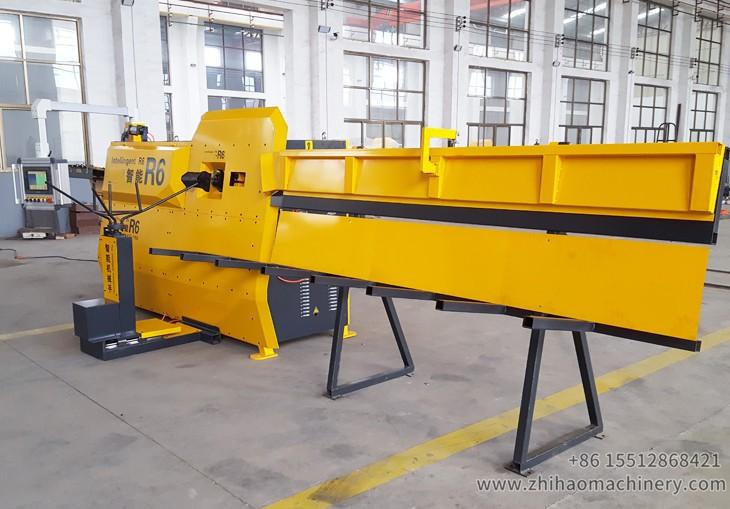

Automatic CNC Carbon Steel Rebar Stirrup Bender

Automatic CNC Carbon Steel Rebar Stirrup Bender

Model: R6 Automatic CNC Carbon Steel Rebar Stirrup Bender
Max single bending diameter: 10mm
Max double bending diameter: 6mm
Total power: 21kw
Brand: ZHIHAO
Dimension: 3.3*1*1.98m
Weight: 1900kg

Automatic CNC Carbon Steel Rebar Stirrup Bender

stirrups bending machine, zhihaomachinery

What Is Rebar Stirrup Bender?

Building and construction industries can use this stirrup bending machine in a wide range of ways. A stirrup-making machine is like a bar bending machine in some ways, but it has some features that a normal bending machine doesnt.

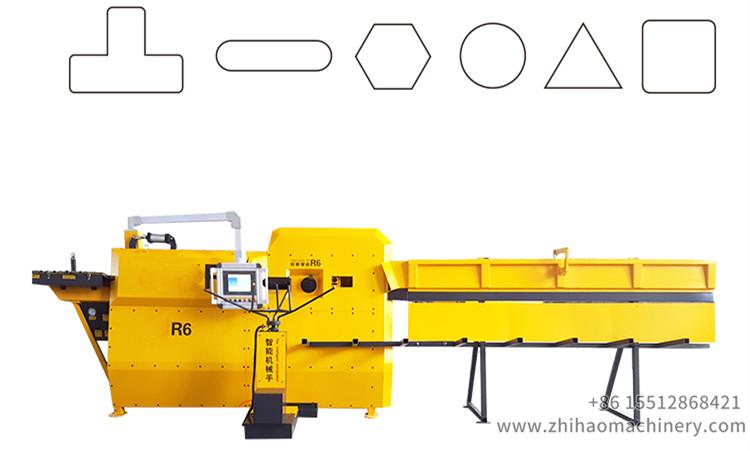

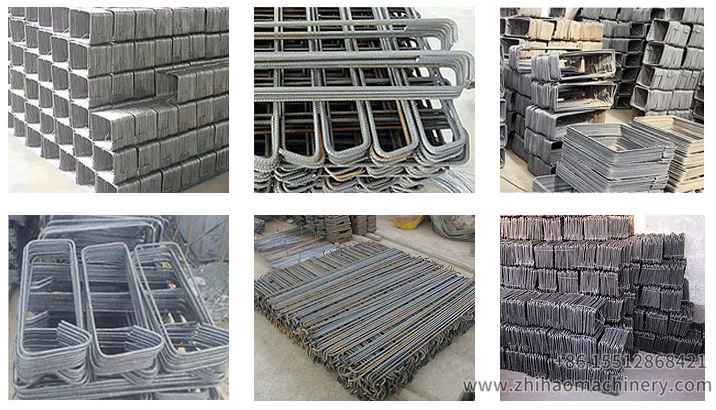

The rebar stirrup bender can bend bar, rebar, reinforcing bar, and steel within 180° into different shapes according to various settings, for example, triangle, quadrangle, pentagon, polygon, and ring.

Additionally, this stirrup bender machine can bend metal into a “U” shape. Because of this, stirrup bending machines are also called U-bending machines.

Technical parameter for Automatic CNC Carbon Steel Rebar Stirrup Bender

Model: R6 single direction way bending

Single processing capacity: 4-10mm

Double processing capacity: 4-6mm

Max Bending Angle: 180°

The angle of the degree of accuracy: ±1°

Total power: 21kw

Servo –motor: 7.5kw

Bending motor: 3.7kw

Cutting and air pump power: 4kw

Weight: 1900kg

cnc stirrups bending machine, zhihaomachinery
