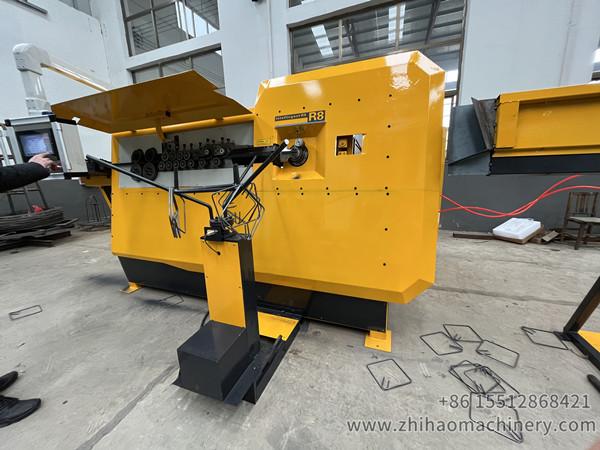

R8 coil bar stirrup bending machine

R8 coil bar stirrup bending machine

working video: https://youtu.be/Fm9w7sRWjPw

1, Combine with horizontal and vertical straightening wheels, drive by Vector brand servo motor, make sure best accuracy when straightening rebar.

2, Bending spindle could rotating and telescope in high speed, could cut rebars very quick to get high bend precision.

3, Large storage capacity can save many processing graphics,

4, Straightening, measure length, bending, shear at same time, processing in high efficiency.

Technical parameter for R8 coil bar stirrup bending machine:

Model: R8 double direction way bending

Single processing capacity: 4-12mm

Double processing capacity: 4-10mm

Max Bending Angle: 180°

The angle of the degree of accuracy: ±1°

Total power: 23kw

Servo –motor: 11kw

Bending motor: 5.5kw

Cutting and air pump power: 4kw

Weight:2200kg

Dimensions: 4*2.3*1.5m

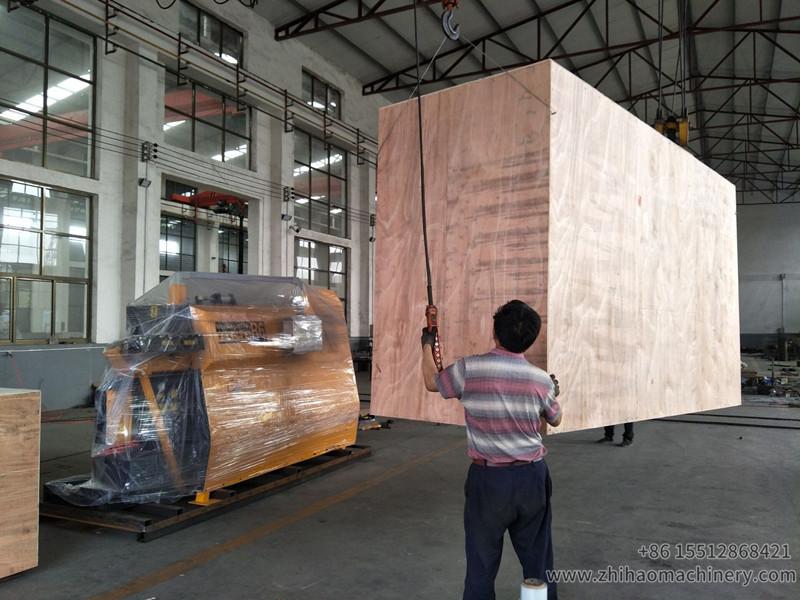

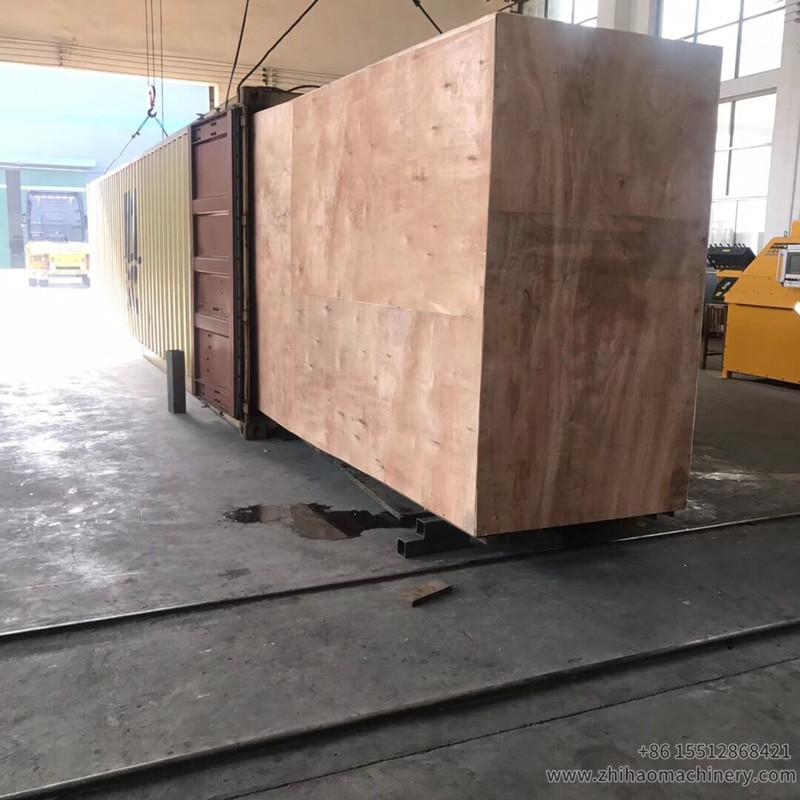

Packing and Delivery of R8 coil bar stirrup bending machine:

More details of R8 coil bar stirrup bending machine, pls zhihaomachinery freely!
