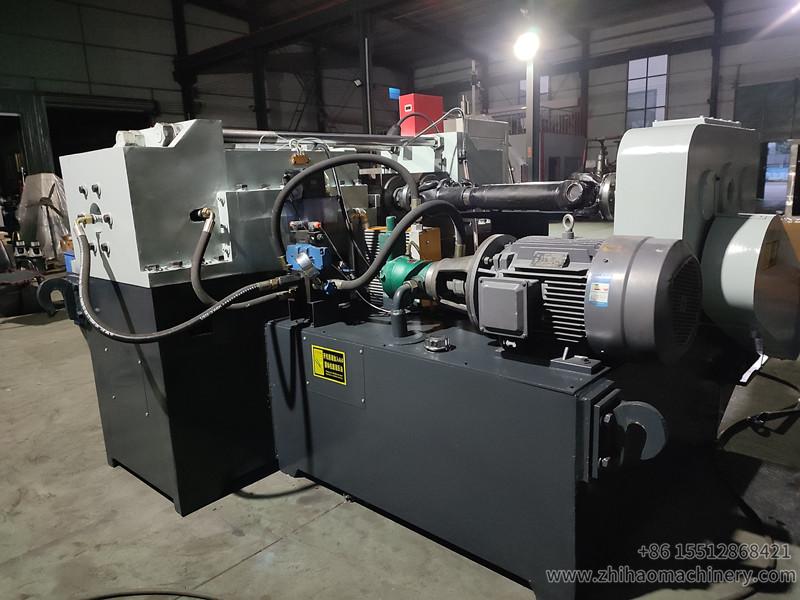

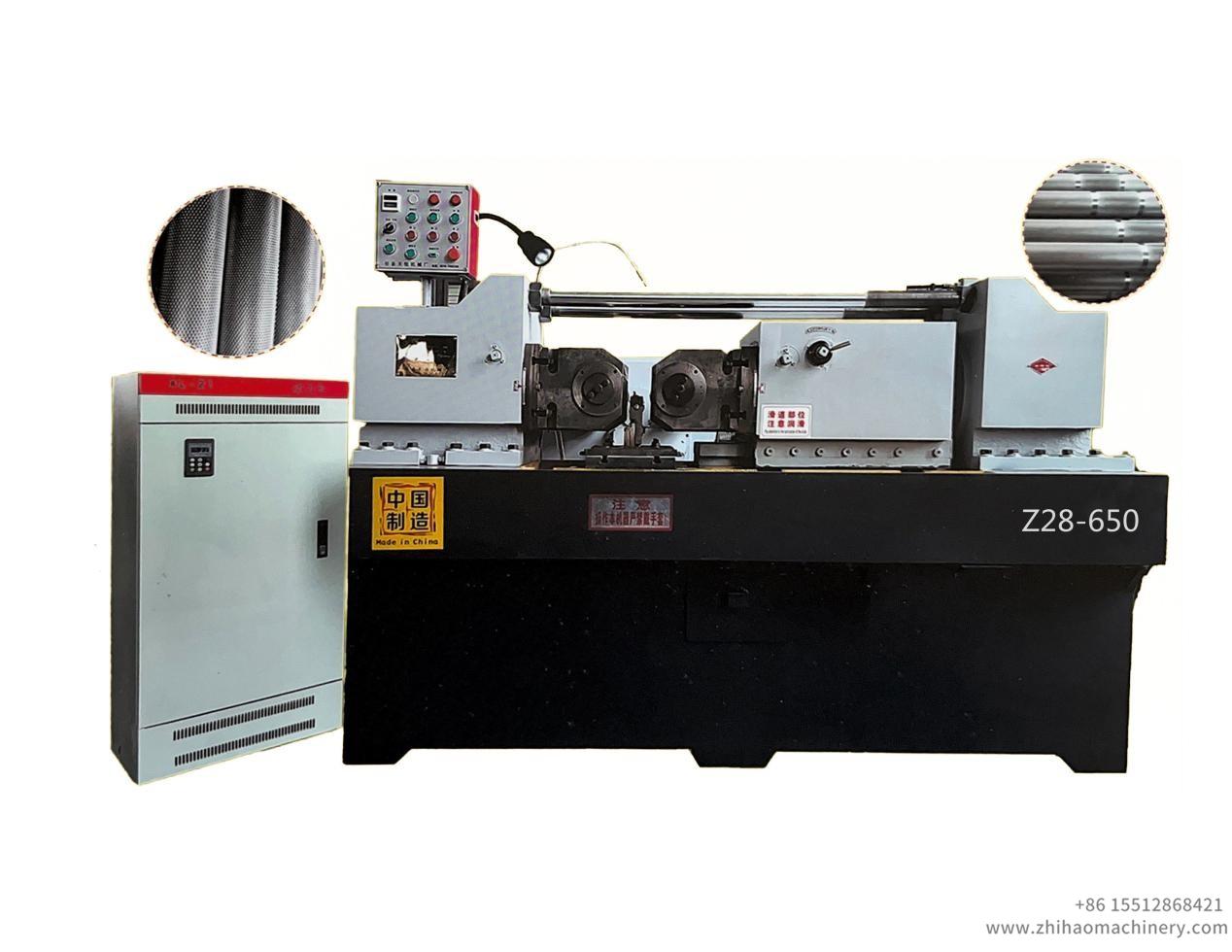

Model: Z28-650 Heavy duty thread rolling machine for worm gears
Max rolling diameter: 120mm
Max rolling thread pitch: 12mm
Max rolling pressure: 650kn
Brand: ZHIHAO
Description: This product is a hydraulic thread rolling machine, which is well received by users for its sturdy structure, sophisticated manufacture and strong power. Z28-650 thread rolling machine is mainly used for rolling various high-strength materials (45#, 40cr, 42crmo, stainless steel, etc.) Standard parts, large-thread and large-diameter workpieces, including ordinary threads, trapezoidal threads, modular threads and such heterosexual parts.
Heavy duty thread rolling machine for worm gears
Model Z28-650 thread rolling machine for worm gears
Rolling thread range Diameter 120mm
Max thread pitch 12mm
Spindle angle ±10°
Max rolling pressure 650kn
Spindle RPM CTV
Roller size range Outside diameter 310mm
Hole 75/100mm
Max width 260mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9s
Spindle drive power 18.5kw
Hydraulic transmission power 11kw
Dimension 2300*2400*1700mm
Weight 6000KG

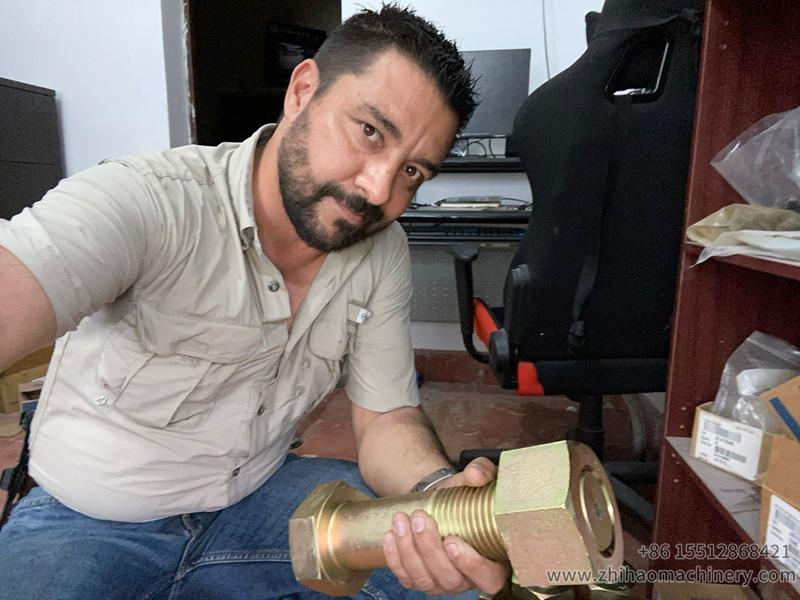

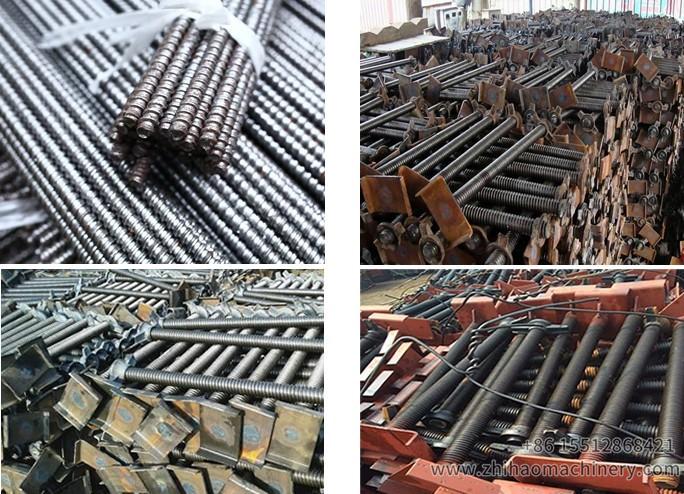

what is the finished workpieces of thread rolling machine?
Any more questions of Heavy duty thread rolling machine for worm gears, pls contact us freely.
