Concrete nail making machine in Kenya

Concrete nail making machine in Kenya

Concrete nail making machine details

2C nail making machine

Dia of nail : 1.2-2.8mm

Length of nail : 1/2-2inch

designed capacity : 350 pcs/min

Motor power : 2.2 kw/h

Weight 750 kg

dimensions :1670*1240*1380mm

3C nail making machine

Dia of nail : 1.8-3.4mm

Length of nail : 30-75mm

designed capacity : 320 pcs/min

Motor power : 3 kw/h

Weight :1050 kg

dimensions :1990*1200*1250mm

4C nail making machine

Dia of nail : 2.8-4.5mm

Length of nail : 2-4inch

designed capacity : 280 pcs/min

Motor power :5.5kw

Weight : 2000 kg

dimensions: 2130*1560*1580mm

5C nail making machine

Dia of nail : 3.0-5.5mm

Length of nail : 70-150mm

designed capacity : 240 pcs/min

capacity: 150kg/h

Motor power : 5.5 kw/h

Weight :2100 kg

Dimensions :2.3×1.6×1.5m

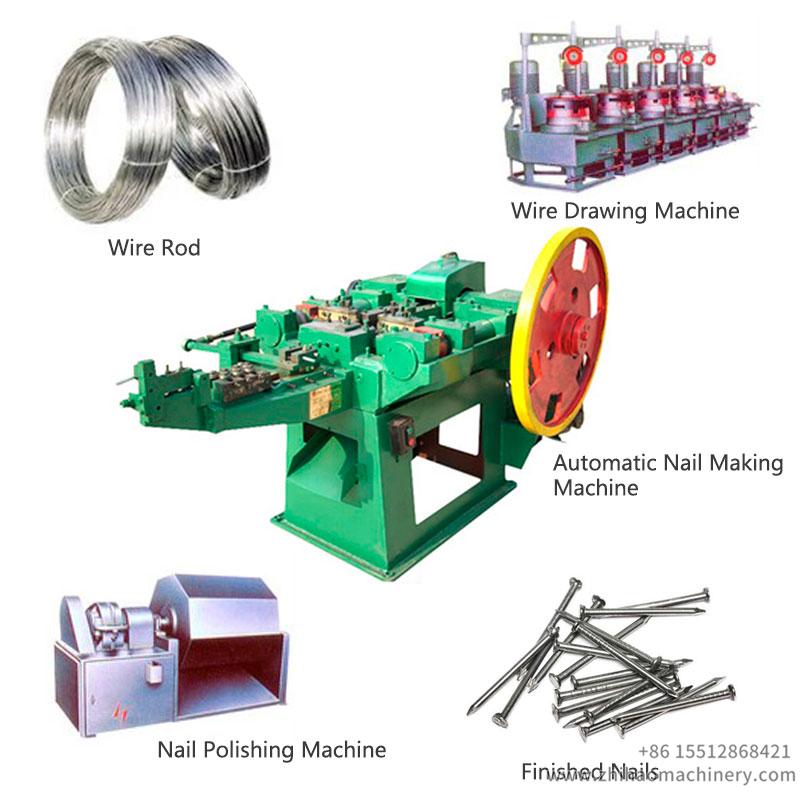

The processing flow is based on your original material:

1, Scrap Wires→ Scrap Wire Drawing Machine → Nail Forming → Nail Polishing → Finished Nails → Package

2, New Wire Rod→ Wire Drawing Machine→ Nail Making → Nail Polishing → Finished Nails → Package
