Model: Z28-650 Railway spikes thread rolling machine mining equipment
Max rolling diameter: 120mm
Max rolling thread pitch: 12mm
Max rolling pressure: 650kn
Brand: ZHIHAO
Description: This product is a automatic screw thread rolling machine, which is well received by users for its sturdy structure, sophisticated manufacture and strong power. Z28-650 thread rolling machine is mainly used for rolling various high-strength materials (45#, 40cr, 42crmo, stainless steel, etc.) Standard parts, large-thread and large-diameter workpieces, including ordinary threads, trapezoidal threads, modular threads and such heterosexual parts.

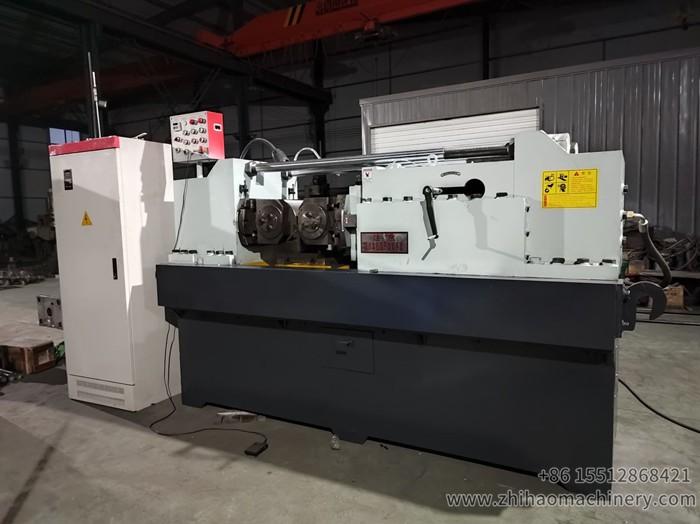

Z28-650 Railway spikes thread rolling machine mining equipment
Our machines ideally conformed to thread ISO, ACME, TPN and WORM threads in cold or hot forming process.
Thread Rolling Machines are used in the production of bolt, screw, anchor, spline, ball joint, shaft, or support for scaffolding industry.
Model Z28-650
Rolling thread range Diameter 120mm
Max thread pitch 12mm
Spindle angle ±10°
Max rolling pressure 650kn
Spindle RPM CTV
Roller size range Outside diameter 310mm
Hole 75/100mm
Max width 260mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9s
Spindle drive power 18.5kw
Hydraulic transmission power 11kw
Dimension 2300*2400*1700mm
Weight 6000KG

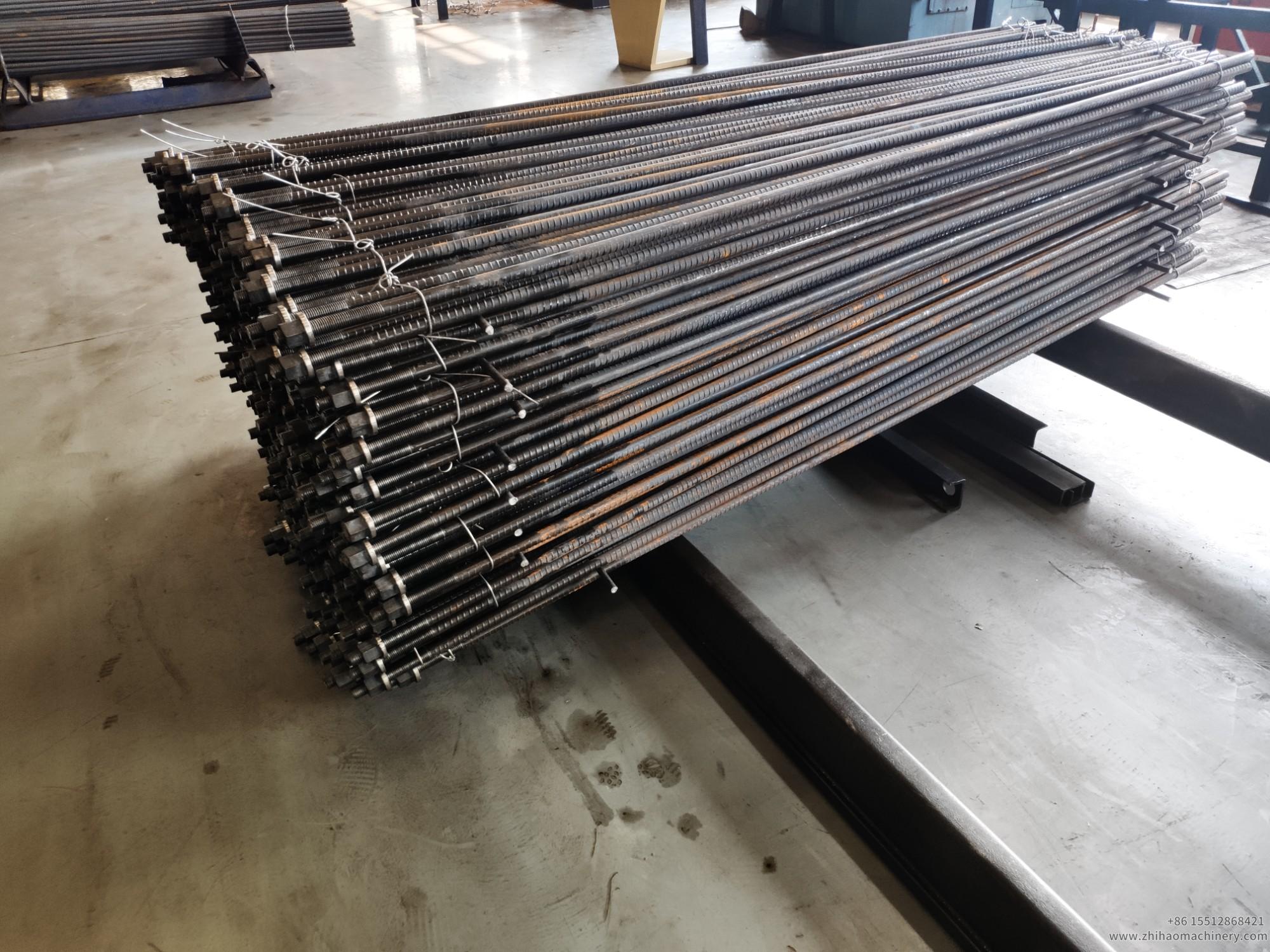

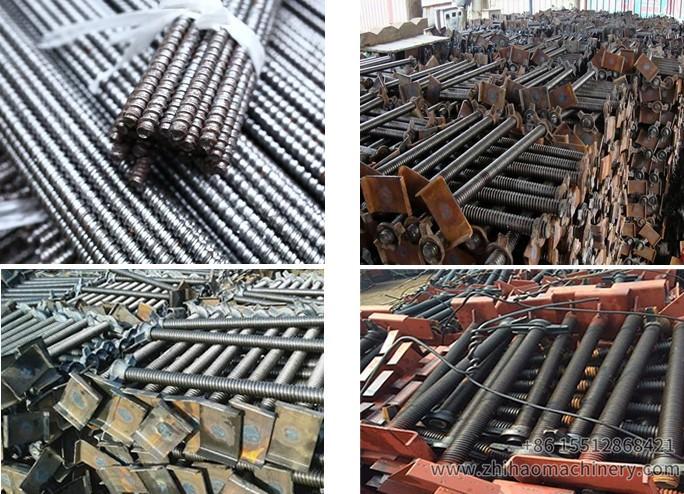

Finished workpieces of two roll rebar thread rolling machine
Any more questions of Z28-650 rebar screw thread rolling machine, pls contact zhihaomachinery freely.
