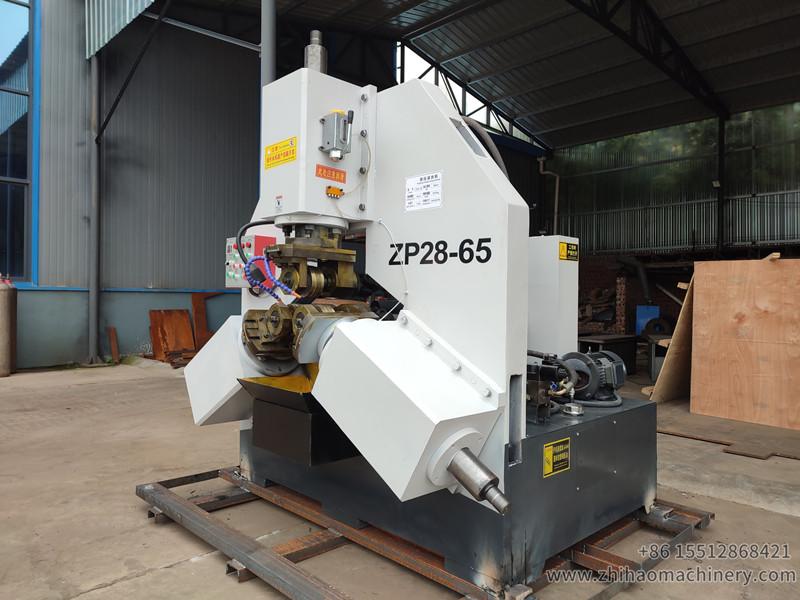

ZP28-65 Three Roller Automatic Pipe Screw Thread Rolling Machine in Egypt

ZP28-65 Three Roller Automatic Pipe Screw Thread Rolling Machine in Egypt

Model: ZP28-65 Three Roller Automatic Pipe Screw Thread Rolling Machine in Egypt
Max rolling diameter: 80mm
Max rolling thread pitch: 8mm
Rolling pressure: 250kn
Brand: ZHIHAO
Description: The equipment adapt to all kinds of materials, such as carbon steel, alloy steel and non-ferrous metals.These material extension rate is greater than 10% and the compressive strength is less than 100kgf/m²

ZP28-65 Three Roller Automatic Pipe Screw Thread Rolling Machine in Egypt

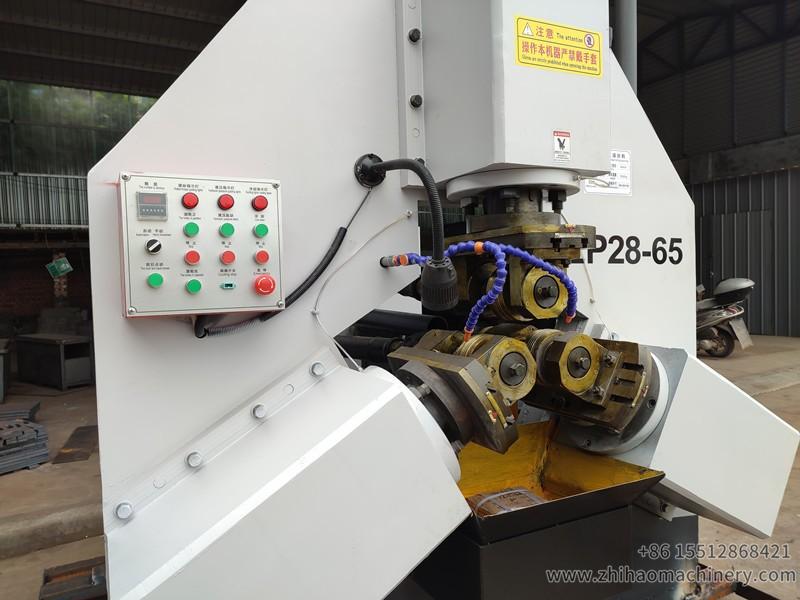

The pipe screw thread rolling machine is a kind of multi-function cold extrusion forming machine, and the spinning function can process the thread, straight grain and twill rolling in the cold state within the range of the rolling pressure. Rolling of straight teeth, oblique teeth and helical spline gear; Straightening, reducing, rolling and all kinds of forming rolling.

The machine has a safe and reliable electrical - hydraulic execution and control system that allows each working cycle to be selected in three ways: manual, semi-automatic and automatic egypt thread rolling machines is mainly used in the construction of ribbed steel bar straight screw thread processing, is to achieve reinforced straight thread connection process of key equipment.

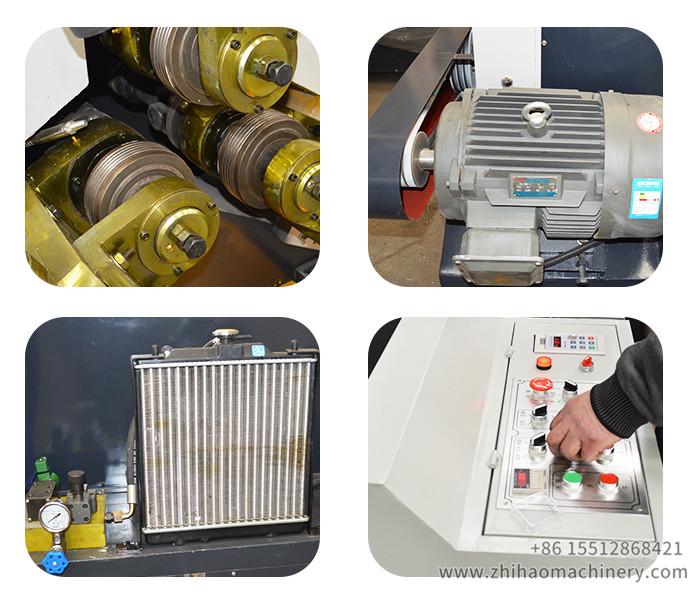

Pipe screw thread rolling machine consists of frame, clamp, guide, slide, reducer, stripping rib rolling head, feeding mechanism, automatic opening and closing mechanism, stroke limit structure, cooling system, electrical control box and control system.

Technical parameter of three rollers thread rolling machine:

Items ZP28-65

Rolling thread range Diameter 80mm

Max thread pitch 8mm

Spindle angle ±6°

Max rolling pressure 250kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 180mm

Hole 54mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss
