Z28-360 metal steel thread rolling machine, foundation bolt screw thread rolling machine

Z28-360 metal steel thread rolling machine, foundation bolt screw thread rolling machine

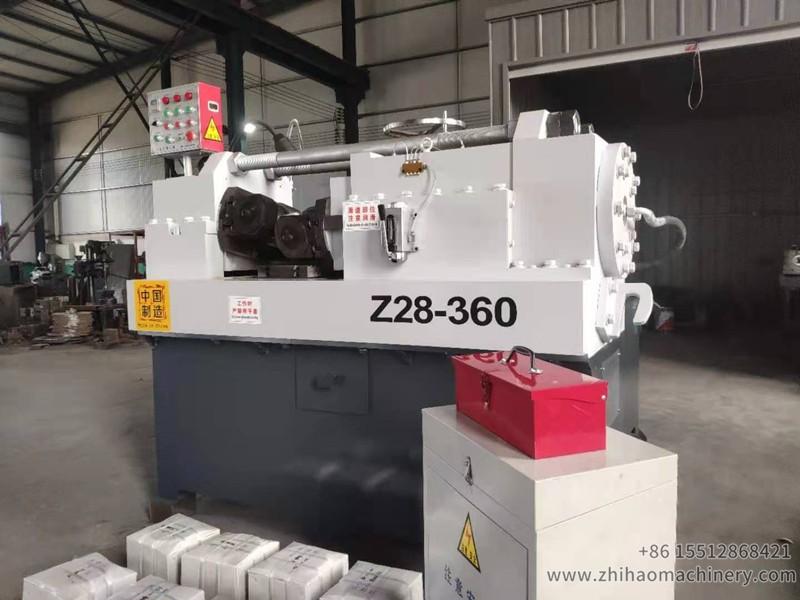

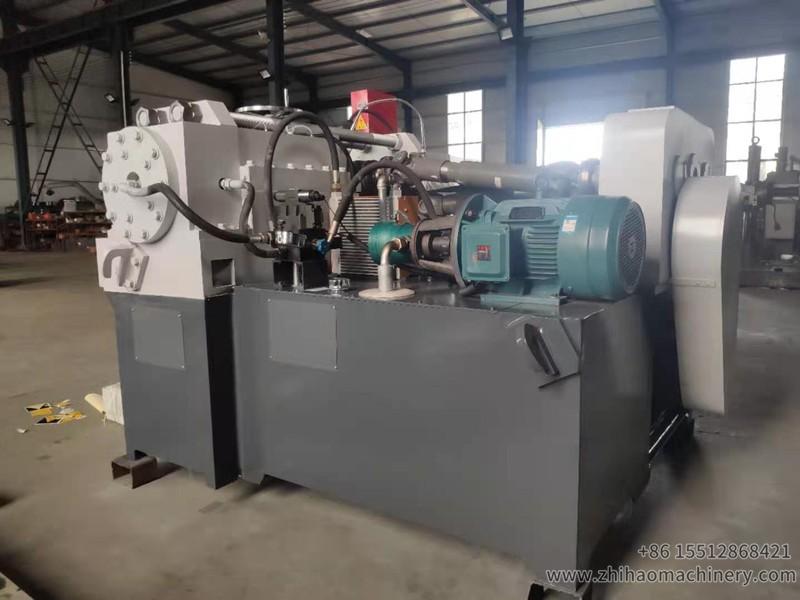

Model: Z28-360 metal steel thread rolling machine,foundation bolt screw thread rolling machine
Max rolling diameter: 100mm
Max rolling thread pitch: 10mm
Max rolling pressure: 450kn
Brand: ZHIHAO

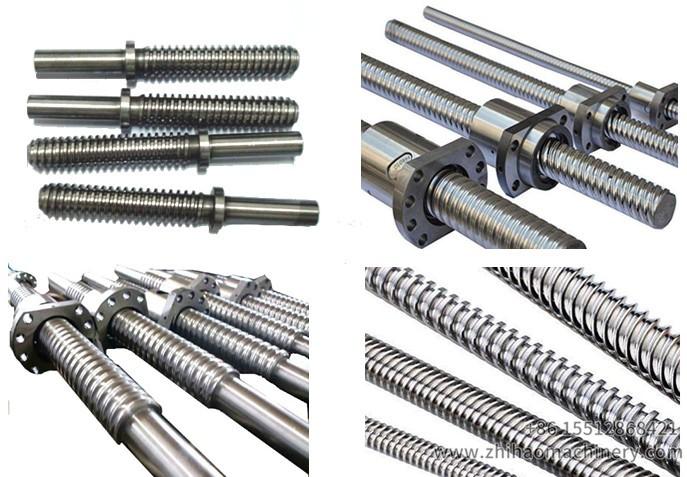

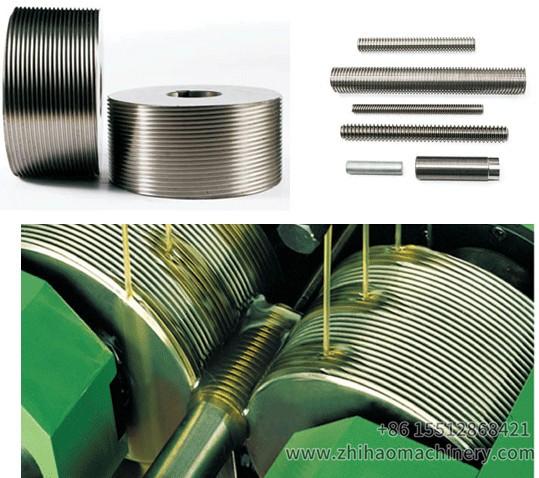

Description: Z28-360 metal steel hread rolling machines are used to produce screws, bolts, and studs. Thread rolling is a cold-form forming operation used to form external screw threads in a blank. During the thread rolling process, a hard die is pressed onto a rotating workpiece (also called a blank) that is attached to the tie rod thread rolling machine.

Z28-360 metal steel thread rolling machine, foundation bolt screw thread rolling machine

Based on over than twenty years experience in producing small thread rolling machine and large-scale rolling equipment, we are sure our outstanding design and competitive price will help you winning your marketing share.

Technical parameter of metal steel thread rolling machine:

Items Z28-360

Rolling thread range Diameter 100mm

Max thread pitch 10mm

Spindle angle ±10°

Max rolling pressure 450kn

Spindle RPM CVT

Roller size range Outside diameter 230mm

Hole 75/85mm

Max width 200mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss
