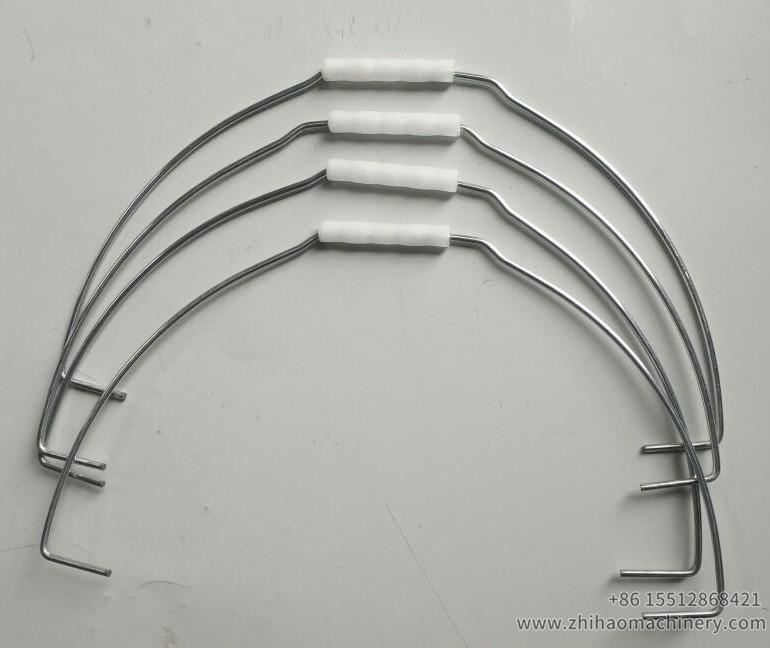

Hydraulic metal bucket hook machine with plastic handle

Hydraulic metal bucket hook machine with plastic handle
Specifications:
Wire Diameter: 1-6mm
Wire Feeding Length: based on needs
Motor Power: 8KW
Production Speed: 15pcs/minute
Machine Cooling: Air Cooling or Water Cooling, chosen by customer.
Control: computer control+PLC
Language in the computer: English and Chinese.
Machine Dimension: L2300mm*W1600mm*H2000mm.
Machine Weight: 1380kgs
Driven Power: Hydraulic
Power Supply: 3Phases, 380V, 50HZ, can be custom made if customer's power supply is different.
Mold making: according to customer's product drawing or samples.
One machine can make multiple products, each product needs one mold.

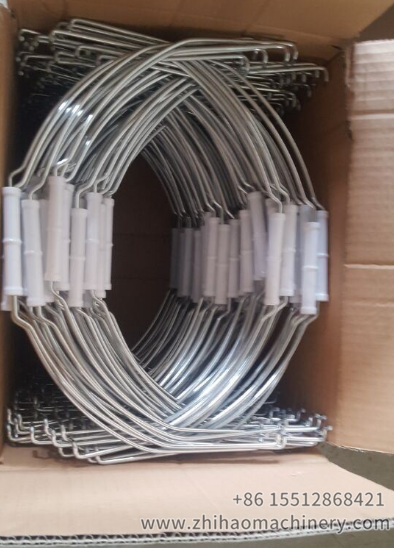

Automatic plastic tube feeding and putting on.

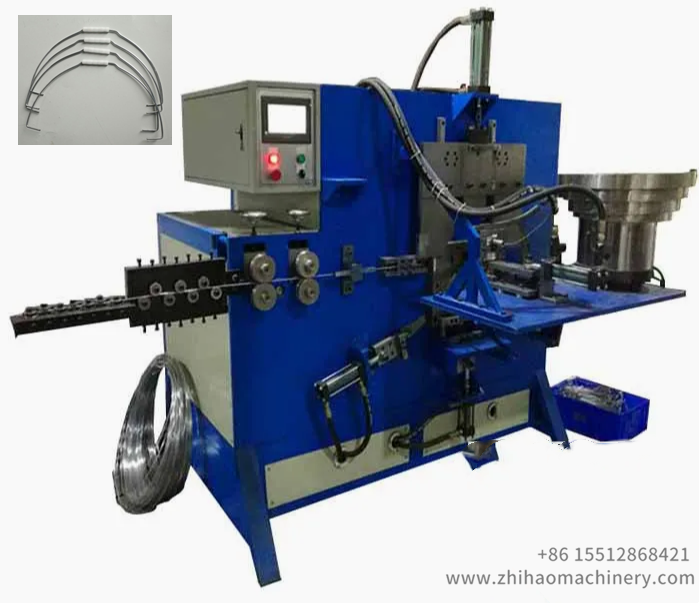

Hydraulic metal bucket hook machine with plastic handle

Model ZH-2D308Bucket handle machine with rivet end And automatic plastic pipe feeder

1) Dimensions: length (215 meters) * width (1.2 meters) * height (1.8 meters)

2) Power supply voltage: 380V/50HZ

3) Motor power (hydraulic horse) 5.5KW

4) Applicable wire diameter: ø2-ø8MM

5) Wire feeding length: 0-unlimited

6) Production capacity: 8-12 pieces/minute

7) Workstations: 9 (robot) (can work continuously)

8) Forming area: 800*500mm

9) Hydraulic system: a) P-23 pump (double pump) 1 set b) Pressure regulating valve 2 pcs c) Pressure relief valve 1 pc d) Solenoid valve 9 pcs e) Pressure gauge 2 pcs f) One set of oil circuit substrate g) One set of air cooler

10) Computer system a) One set of wire feeding stepper motor (50N)

Application:

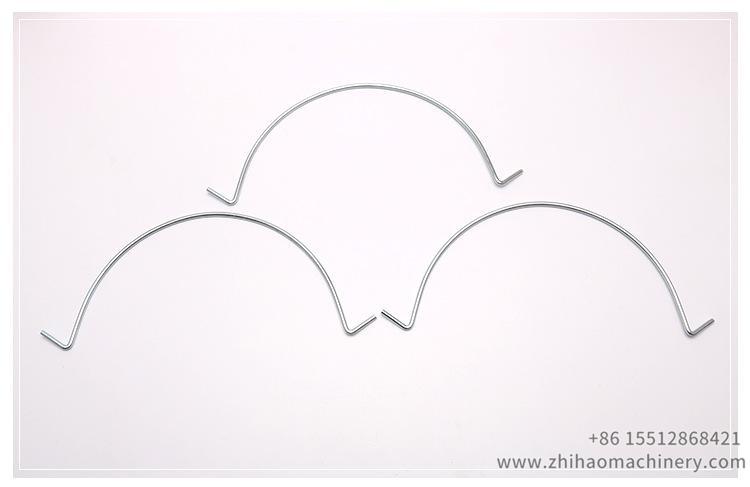

1) The bucket hook making machine is available for the wire rod of copper, iron, carbon steel, stainless steel, etc.

2) The metal wire bucket handle bending machine is available for the linear shape of round wire, semicircle wire, triangle wire, etc.
