Thread roller thread screw rolling machine production

Thread roller thread screw rolling machine production Z28-260
Rolling thread range Diameter 80mm
Max thread pitch 8mm
Spindle angle ±10°
Max rolling pressure 380kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 220mm Hole 75mmMax width 150mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9s
Spindle drive power 15kw
Hydraulic transmission power 7.5kw
Cooling pump power 90w
Dimension 2050*1750*1550mm
Weight 3100kg

EMAIL

Thread roller thread screw rolling machine production


The advantanges of thread screw rolling machine:

Used for making thread on bolts,screws,fasteners,threaded rods

Diameter range : 6mm-56mm

Length of thead : unlimited

Can be designed with antomatic feeding device


1) Control panel easy to operate simple and convenient

2) Support seat putting thread rollers

3) Main spindel high tensile performance

4) Oil station storage hydraulic oil


Technical Parameter for thread roller machine:

Model Z28-260 hydraulic thread rolling machine

Rolling thread range Diameter 80mm

Max thread pitch 8mm

Spindle angle ±10°

Max rolling pressure 380kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 220mm Hole 75mmMax width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 15kw

Hydraulic transmission power 7.5kw

Cooling pump power 90w

Dimension 2050*1750*1550mm

Weight 3100kg

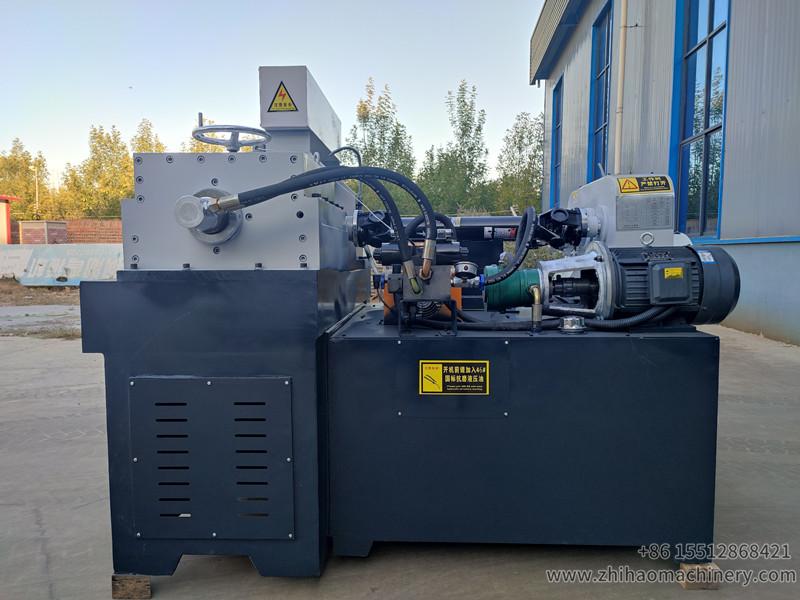

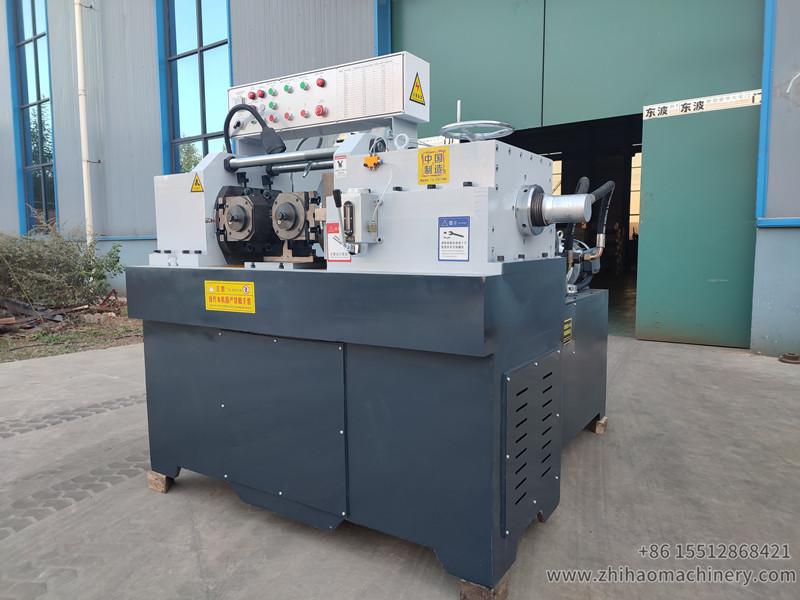

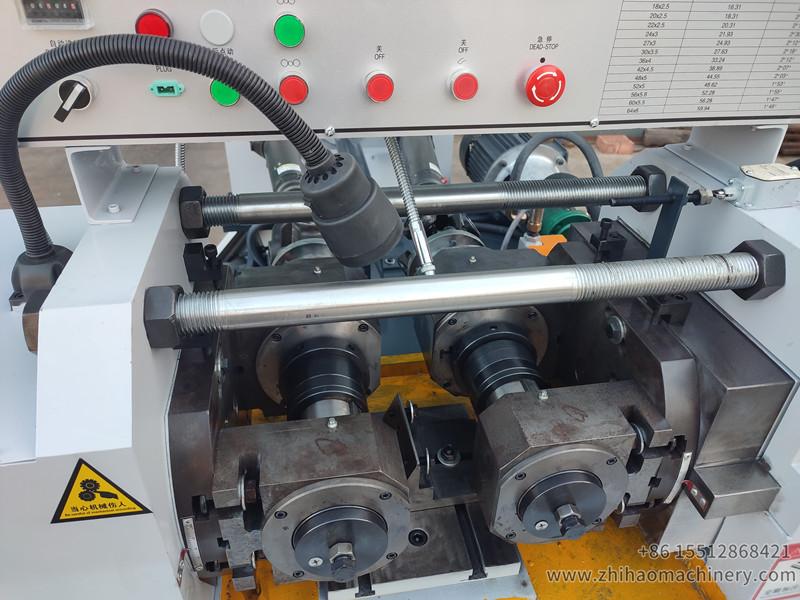

Detailed photos of thread screw rolling machine:

thread roller, zhihaomachinery

screw rolling machine, zhihaomachinery

thread screw rolling machine, zhihaomachinery


Finished workpiece by hydraulic thread rolling machine:


1)jacking, use for construction work

2)bolts, made by thread rolling machine, can customized automatic feeder

3)anchor, used for machinery installate and fixed the cnc lathe etc

anchor bolts thread rolling machine, zhihaomachinery

4)railroad spike, always made by three rolls thread rolling machine

5)scaffold, used for construction work

scaffold, zhihaomachinery

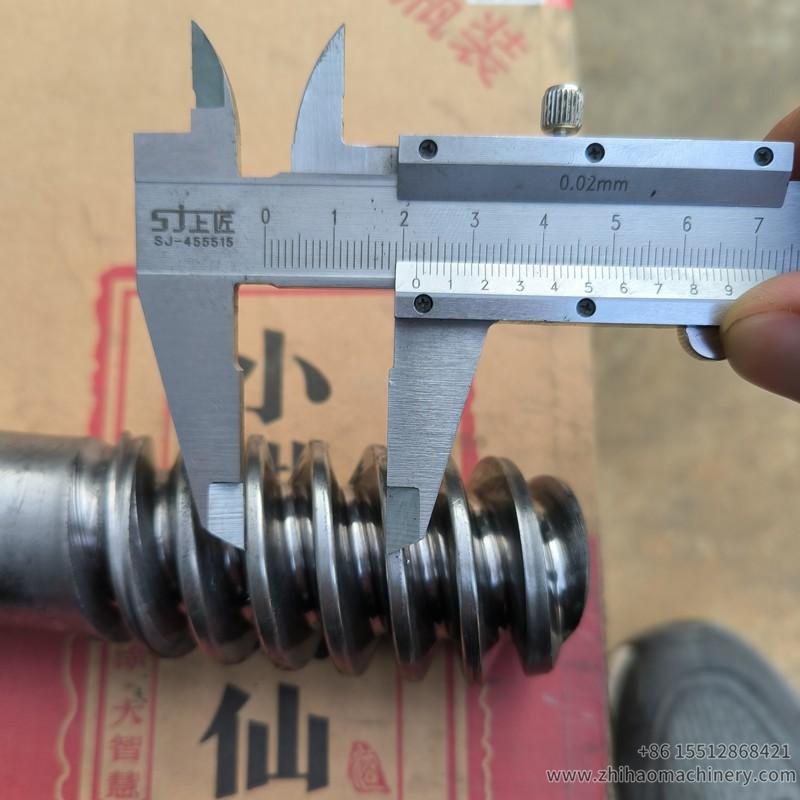

6) Trapezoidal thread, made by thread rolling machine,like ACME thread

7)Metric standard thread pitch, M6 M10 M12........etc


Hydraulic thread rolling machine production workshop


XINGTAI ZHIHAO TECHNOLOGY CO.,LTD

WHATSAPP +8615512868421

EMAIL sales@zhihaomachinery.com

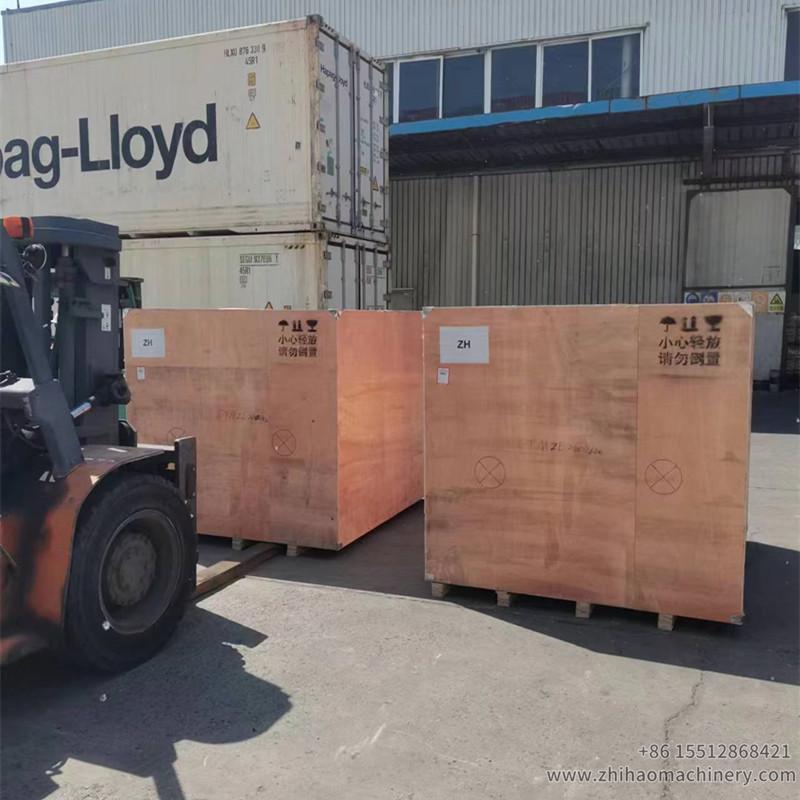

Packing anchor bolt thread rolling machine and thread rolling wheels

zhihao thread rolling machine, zhihaomachinery
