construction cnc stirrup bending machine

construction cnc stirrup bending machine

Automatic construction cnc stirrup bending machine is composed of PLC control system, traction system, straightening system, shearing system, etc. It can automatically complete traction, straightening, sizing, cutting, etc. The control system adopts domestic and foreign mature control systems with high reliability and has fault identification and alarm functions; The machine is composed of two sets of horizontal and vertical automatically adjustable straightening wheels, combined with 4 traction wheels, driven by a servo motor, to ensure the best accuracy of the straightening of the steel bars; The bending is driven by servo motor, and the bending part can be extended and contracted, saving raw materials to the greatest extent. Compared with the traditional process, the CNC stirrup bending machine is more efficient, occupies less space, and saves raw materials. One machine can replace 10-15 manual labor, widely used in construction site.

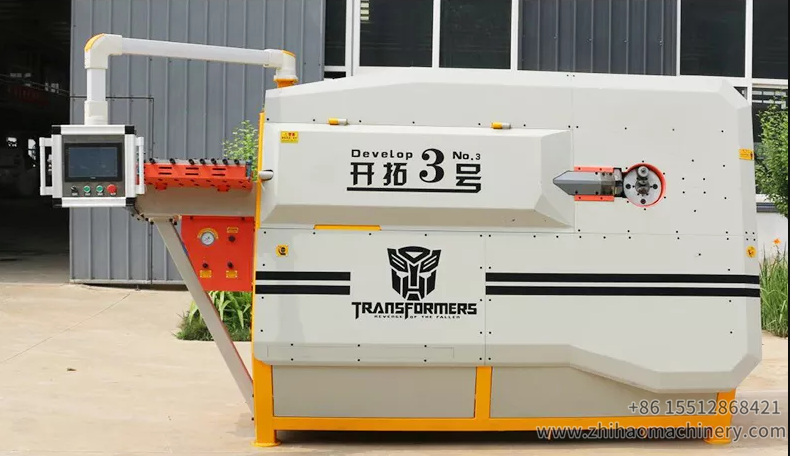

Model KT3 construction cnc stirrup bending machine

Model KT3 double bending way

Single wire Straight rebar 14mm Ribbed

steel bar 5-12mm

Double wire 5-10mm

Max bending angle ±180°

Max towing speed 75m/min

Max bending speed1000°/sec

Dimension 3850*1200*2200mm

Machine color Yellow (customized)

Total power 32kw

Average power 5kw/h

Weight 2200kg

Function:

1) automaticly straightening

2) automaticly measure

3) automaticly bending (to different shapes used in construction projects)

4) automaticly cutting

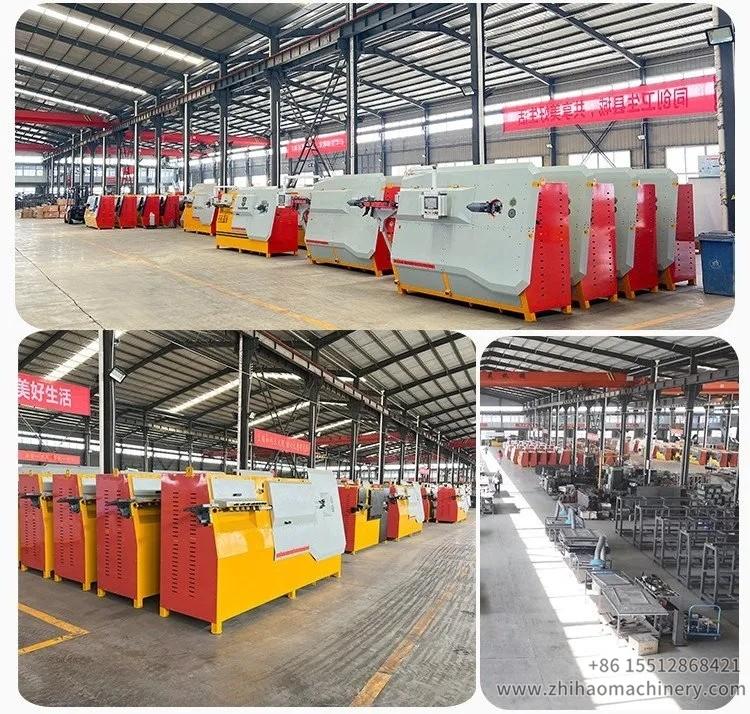

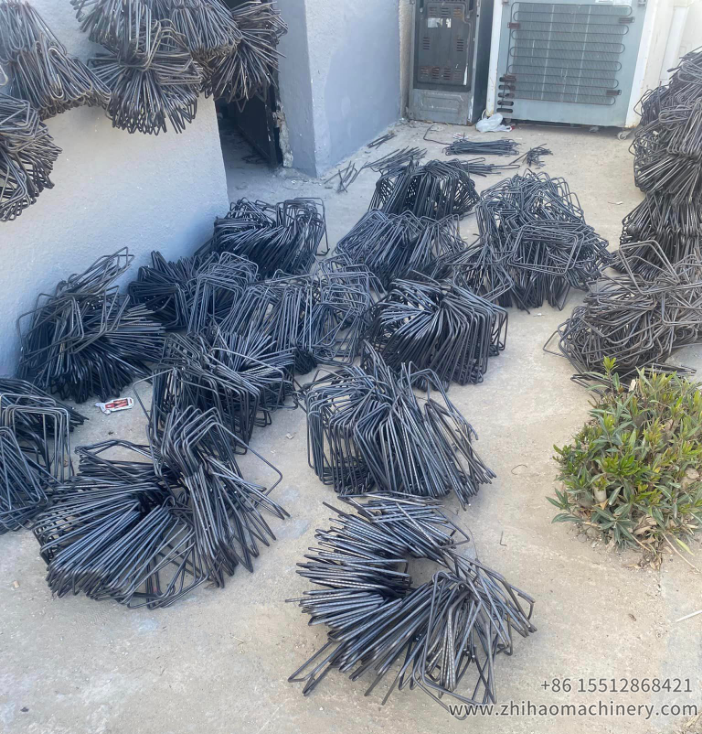

Detailed photos of consruction cnc stirrup bending machine:

More details of construction cnc stirrup bending machine, pls contact zhihaomachinery freely!
