stirrup bending machine factory price

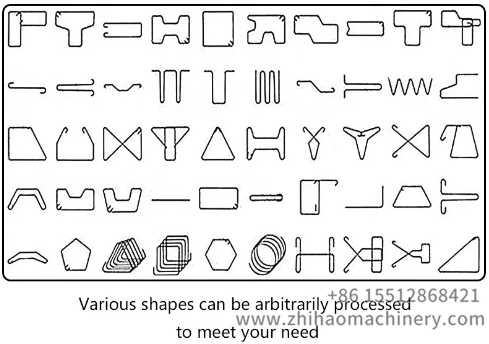

stirrup bending machine with factory price, Reinforced steel stirrups come in many shapes: bent on one side or on several sides, closed or open. Rebar stirrups can be subsequently processed in an intertwining or fastening process or welded into mesh and cages.

Stirrups are used as spacers between wall and ceiling elements, in the connection between two walls and in pillars, girders, strip foundations or lintels. They are decisive for the statical properties of the precast concrete element.

KT6 cnc stirrup bending machine working video from Australia customer. 12mm ribbed bar bending for circle shape.

If have any interesting, pls contact freely.

whatsapp/wechat: +8615512868421

Email: sales@zhihaomachinery.com

Technical parameter as below:

Model KT6 double bending way

Single wire 5-16mm

Double wire 5-12mm

Max bending angle ±180°

Max traction speed 75m/min

Max bending speed 800°/sec

Dimension 4000*2000*2200mm

Machine color Yellow (customized)

Total power 52.5kw(include air compressor)

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 12kw/h

Weight 3000kg

Optional with long platform
