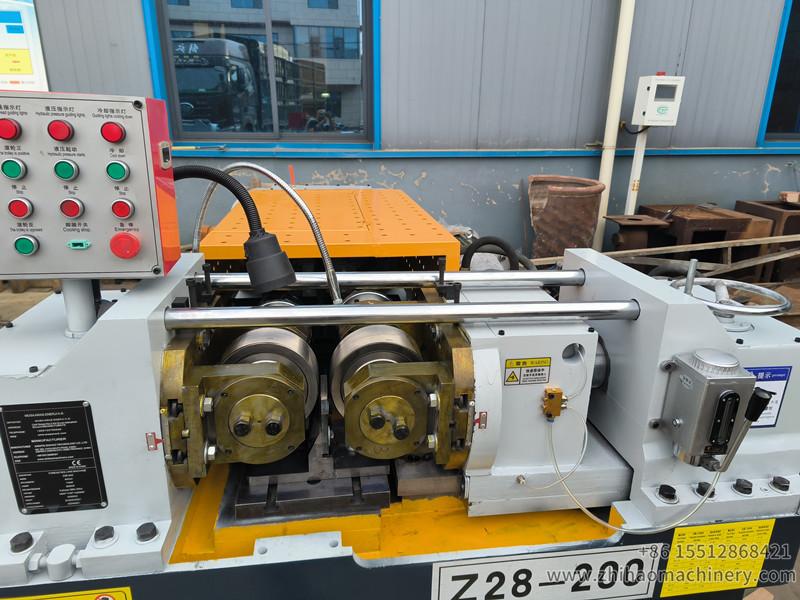

The Z28-200 bolt thread rolling machine is maily used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile srength less than 100kgf/mm²
Z28-200 hydraulic thread rolling machine technical parameter:
Rolling thread range Diameter 64mm
Max thread pitch 6mm
Spindle angle ±10°
Max rolling pressure 300kn
Spindle RPM 22/28/35/45/56/70rpm
Roller size range Outside diameter 210mm
Hole 75mm
Max width 150mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9s
Spindle drive power 11kw
Hydraulic transmission power 5.5kw
Cooling pump power 90w
Dimension 1900*1700*1450mm
Weight 2500kg
