2 roll thread rolling machine manufacturer

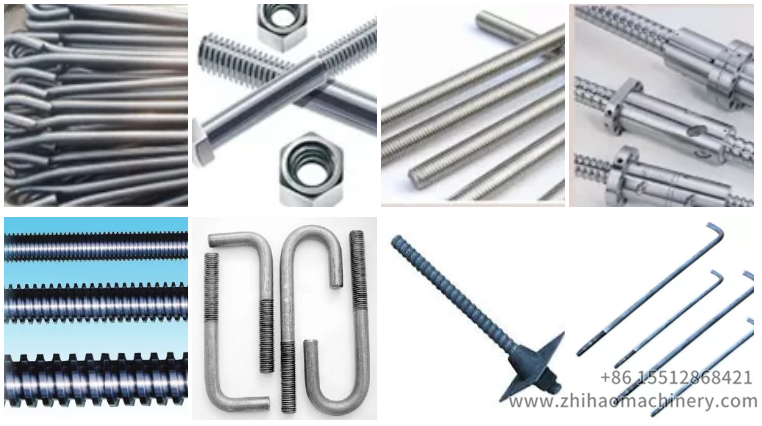

Our 2 roll thread rolling machine used for making thread on bolts, screws, fasteners, threaded rods. Can with antomatic feeding device. It can be processed radially or axially, and it can be processed with the corresponding rolling wheel to process ordinary bolts, special bolts and tie rods etc. We are the manufacturer, good price for you. We have professional sales staff to answer any questions you ask. Help you choose the most suitable models. We have professional technicians. Solve any difficult problems about the operation of the machine for whole day.

Model Z28-150 2 roll thread rolling machine technical parameter:

Rolling thread range Diameter 5-56mm

Max thread pitch 5.0mm

Spindle angle ±8°

Max rolling pressure 180kn

Spindle RPM 37/46/63/79rpm

Roller size range Outside diameter 120-170mm

Hole 54mm Max width 30-100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 5.5kw

Hydraulic transmission power 2.2kw

Cooling pump power 90w

Dimension 1560*1450*1450mm

Weight 1850kg

Any more questions for 2 roll thread rolling machine, pls contact freely
