2D CNC Steel Wire Basket Bending Machine

Applications of 2d cnc steel wire basket bending machine

1.Auto Industry area

2.Metal wire industry

3.Display table and cargo shelf

4.Furniture and Kitchen

5.Hardware industry

6.Mattress, Sofa spring area

7.Architecture area

8.Hardware Artcraft

1. Introduce of 2d cnc steel wire basket bending machine

This automatic ring making and welding machine is composed of automatic feeding, automatic coiling, automatic moving, automatic welding and automatic unloading process.

The steel wire will pass through the feeding plate, and then enter into the wire feeding wheel and wire pressing wheel. The machine will conduct ring coiling. The cutter will cut the wire into certain length, then the robot arm will grab the ring and put it into welding position to conduct butt welding. At last, the robot arm will take out the ring. The whole process will be finished.

2. Technical parameter of 2d cnc steel wire basket bending machine

Equipment name: CNC electric Wire Bending Machine

Processing wire diameter specification)：Φ2-Φ6mm for Ordinary iron wire (customized for increased wire diameter)

Number of control shafts: 4

Power of wire feeding motor: 4.5kw, equipped with 160 Type 1:5 reducer

Bending motor power: 1.8kw with 142 type 1:20 reduce

Inner touch lifting motor powerr: 0.75KW, equipped with 90 type 1: 10 reducer

Cutter motor power: 1.5kw with 120 type 1:10 reducer

Maximum delivery speed: 90m / min), 60m / min (with reduce

Wire feeding accuracy: 9000mm ± 0.1）/ 6000mm ± 0.2 (with reducer)

Maximum bearing capacity of electric wire feeding frame: 1500kg, 3T (large-scale paying off frame

Diameter of outer circle of electric wire feeder:Φ1500mm

Electric feeding rack motor power: 1.5kw with wpwdk080 × 1:60 reducer

Main machine voltage: three-phase 380V

Main machine weight:1300kg

Main machine size: 2500mm x 1650mm x 1800mm

Weight of electric feeding rack: 400kg

Electric feeding frame size: 1500mmx1500mmx940mm

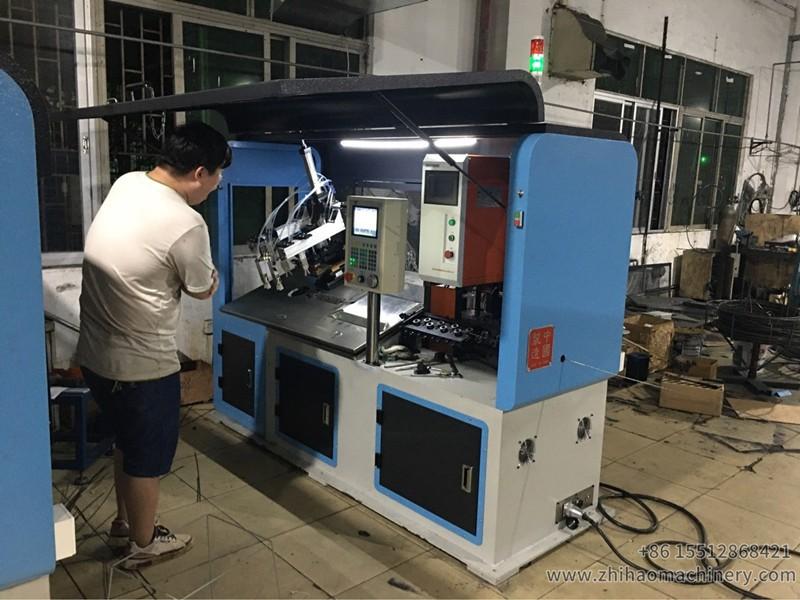

3. Detailed photos of 2d cnc steel wire basket bending machine

4. Technological process:

1. Automatic feeding ( feeding the wire)

2. Automatic coiling ( hydraulic system, wire pressing wheel)

3. Automatic moving (cylinder robot arm)

4. Automatic welding (AC pulse power/MF DC power)

5. Automatic unloading (cylinder robot arm)

6. Sound-light alarm function: the machine will give alarm when the material is used up, the power  is overpressure, the

welding current is abnormal or when the temperature is too high.

7. Counting function: the machine will sum up the number of qualified product, defective product and welding times of

electrode.

8. Monitoring function: the display screen will monitor the whole process of actions and the welding currentof each welding

process. It will give alarm when the monitoring function is abnormal.

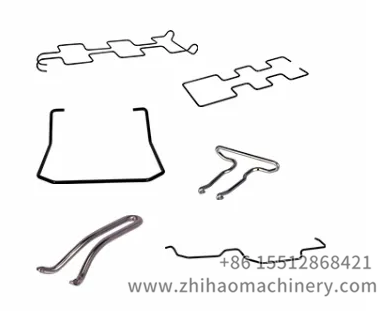

5. Finished workpiece of 2d cnc steel wire basket bending machine
