Mexico Automatic 2D CNC wire bending machine with welding

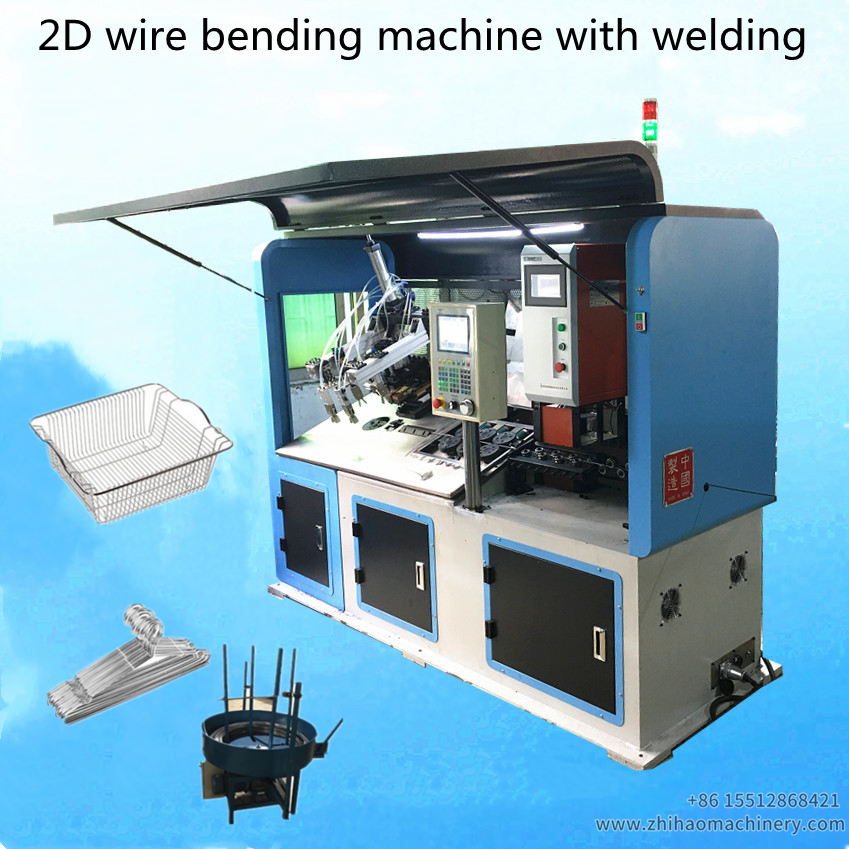

Automatic 2D CNC wire bending machine with welding

This is type machine is our patent product with strong protective cover and butt welding.

Hot sale to Mexico, Ecuador, Peru, Russia, Vietnam etc.

Technical parameter:

Equipment name: automatic cnc control 2D wire rod forming machine

Processing wire diameter specification)：Φ2-Φ6mm for Ordinary iron wire (customized for increased wire diameter)

Number of control shafts: 4

Power of wire feeding motor: 4.5kw, equipped with 160 Type 1:5 reducer

Bending motor power: 1.8kw with 142 type 1:20 reduce

Inner touch lifting motor powerr: 0.75KW, equipped with 90 type 1: 10 reducer

Cutter motor power: 1.5kw with 120 type 1:10 reducer

Maximum delivery speed: 90m / min), 60m / min (with reduce

Wire feeding accuracy: 9000mm ± 0.1）/ 6000mm ± 0.2 (with reducer)

Maximum bearing capacity of electric wire feeding frame: 1500kg, 3T (large-scale paying off frame

Diameter of outer circle of electric wire feeder: Φ 1500mm

Electric feeding rack motor power: 1.5kw with wpwdk080 × 1:60 reducer

Main machine voltage: three-phase 380V

Main machine weight:1300kg

Main machine size: 2500mm x 1650mm x 1800mm

Weight of electric feeding rack: 400kg

Electric feeding frame size: 1500mmx1500mmx940mm

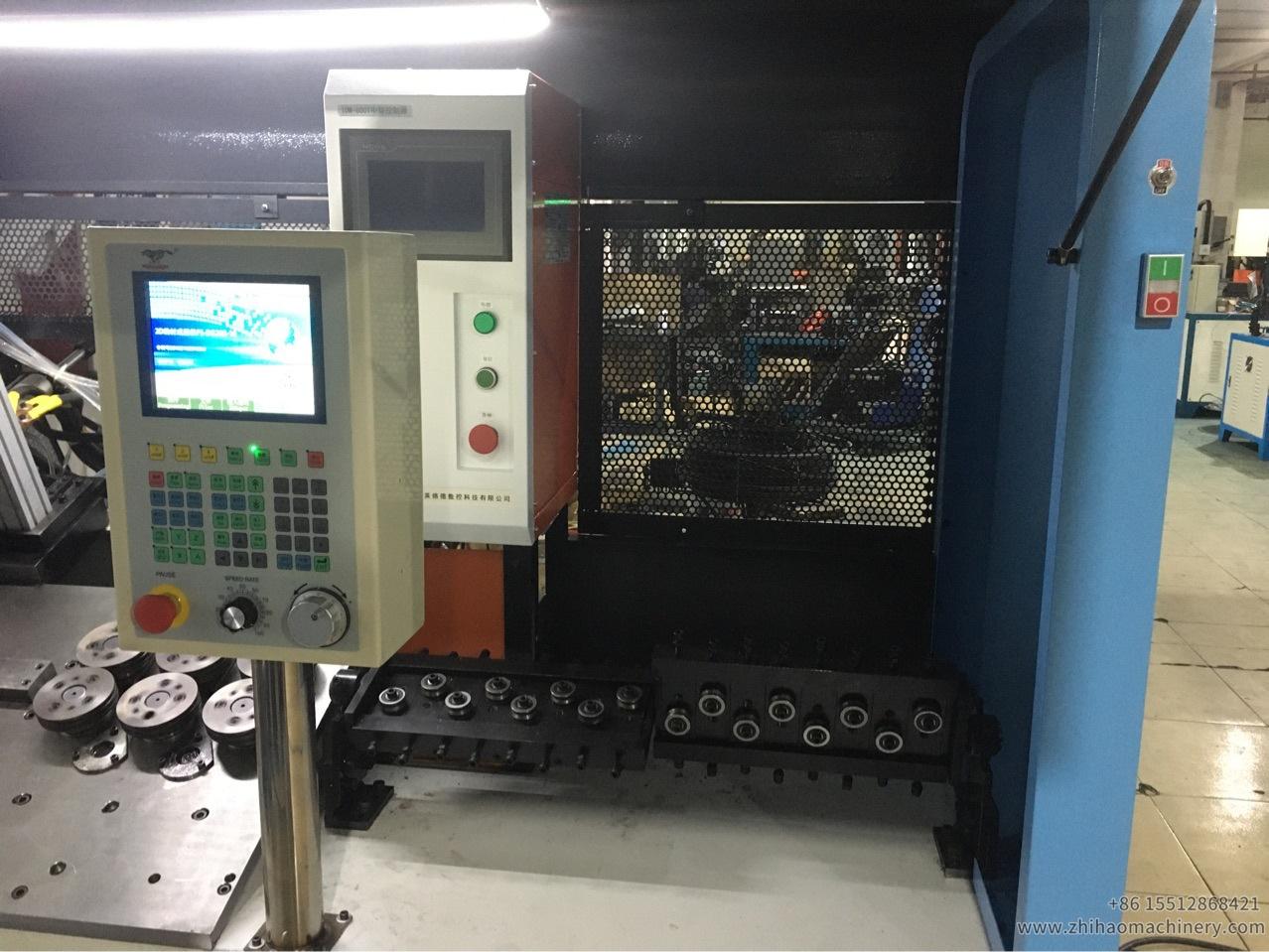

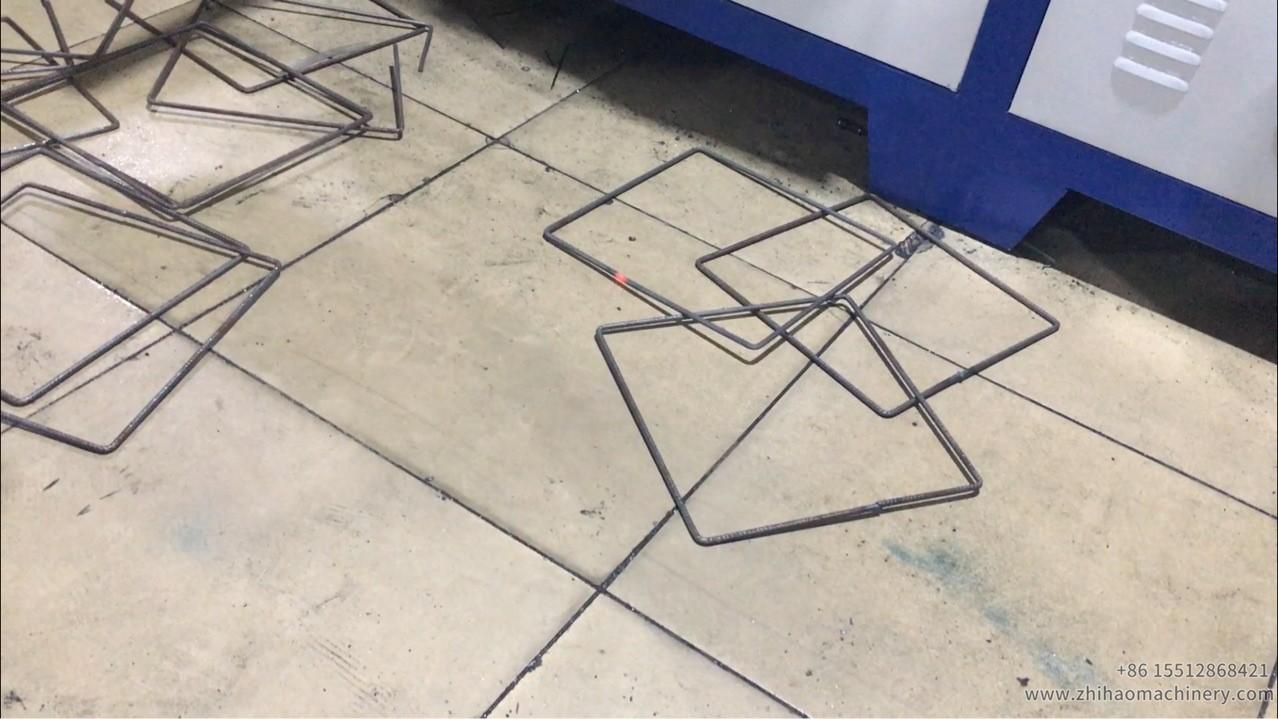

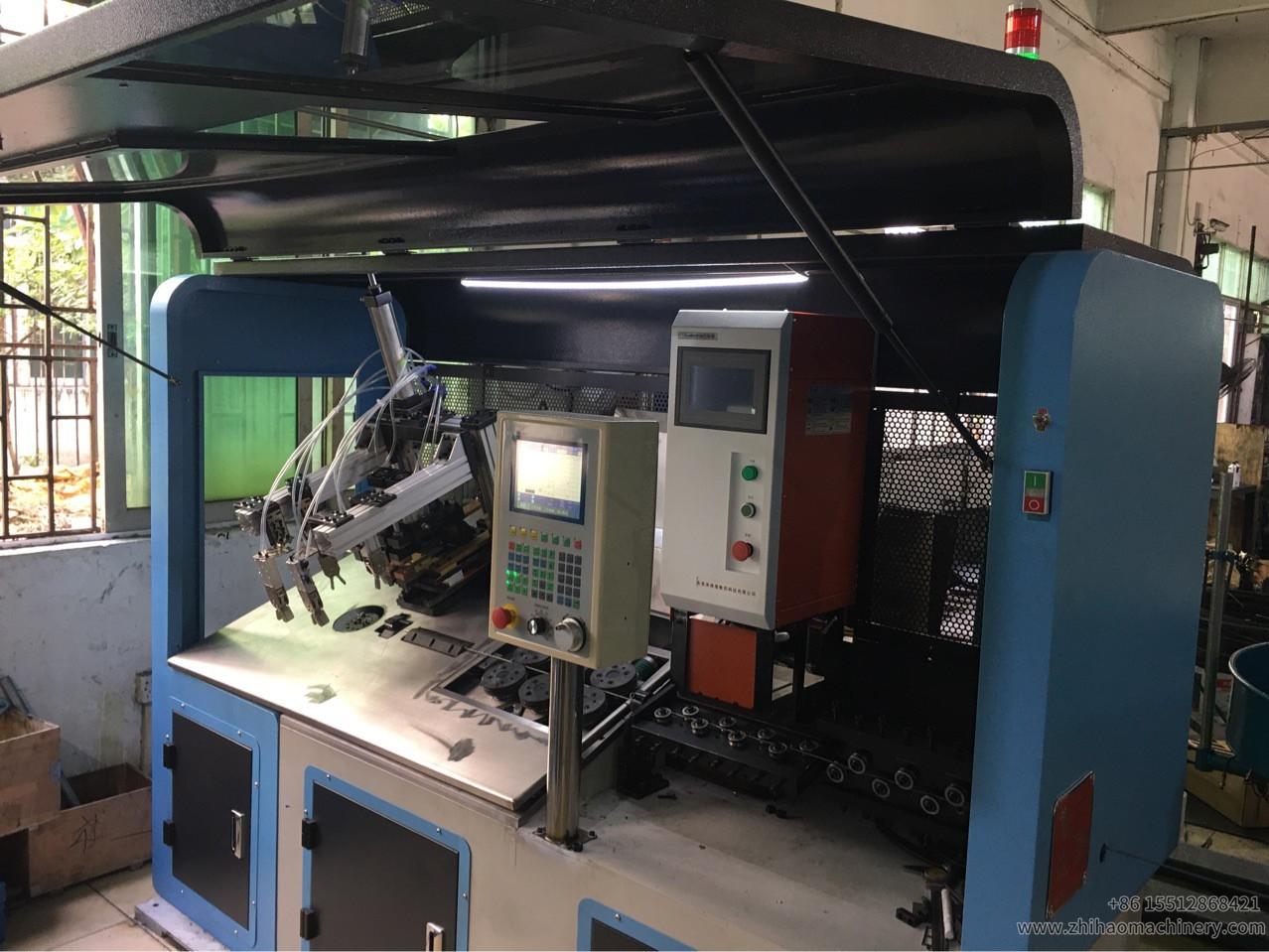

Detailed photos show:

More details of 2D cnc wire bending machine 2mm-6mm pls contact us freely!
