Z28-80 threaded rod automatic threading machine in Mexico

Z28-80 threaded rod automatic threading machine in Mexico

working video: https://youtu.be/7X4noQGngEE

Features of Mexico threaded rod automatic threading machine:

1. Automatic feeding with adjuatable brackets

2. Speed is adjutable for different products

3. 54mm hole diamter for SKD11 thread rolling dies

4. Max. Rolling pressure is about 160KN

5. It is easy to operate and maintain the machine

6. CE

Technical parameter of Mexico threaded rod automatic threading machine:

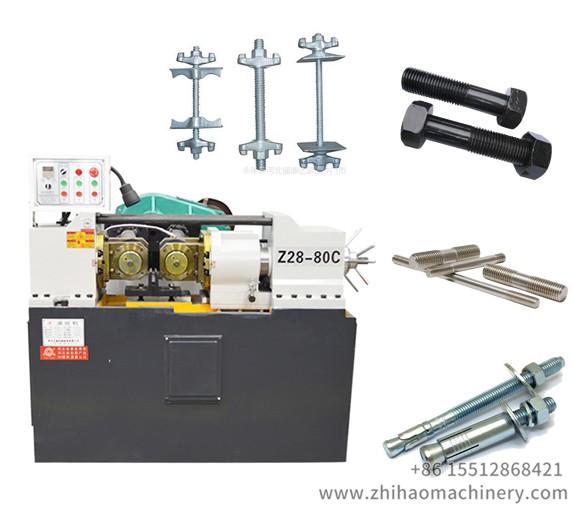

Model Z28-80 two roll threading machine

Rolling thread range Diameter 5-48mm

Roller size range Outdiameter 120-170mm

Hole 54mm Max width 100mm

Thread pitch 0.5-4mm

Spindle Angle ±8°

Max rolling pressure 160kn

Spindle drive power 4.0kw

Spindle RPM 37/46/63/79rpm

Hydraulic transmission power 2.2kw

Dimension 1520*1400*1450mm

Weight 1600kg

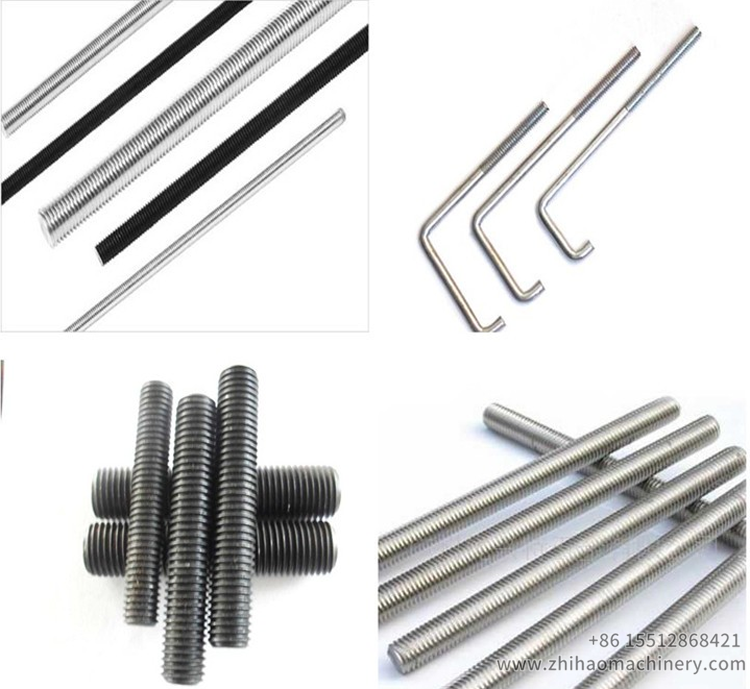

Finished workpiece of Z28-80 threaded rod automatic threading machine:

If have more questions for threaded rod automatic threading machine, pls contact us freely.
