Model: 2-2000 wire chain link fence mesh making machine
Machine width: 2m
Wire mesh width: 0.5-2m
Wearing parts: Moulds, Shear knife, Proximity switch
Brand: ZHIHAO
Description: The automatic chain link fence making machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable. Easy operation and high-speed efficiency.

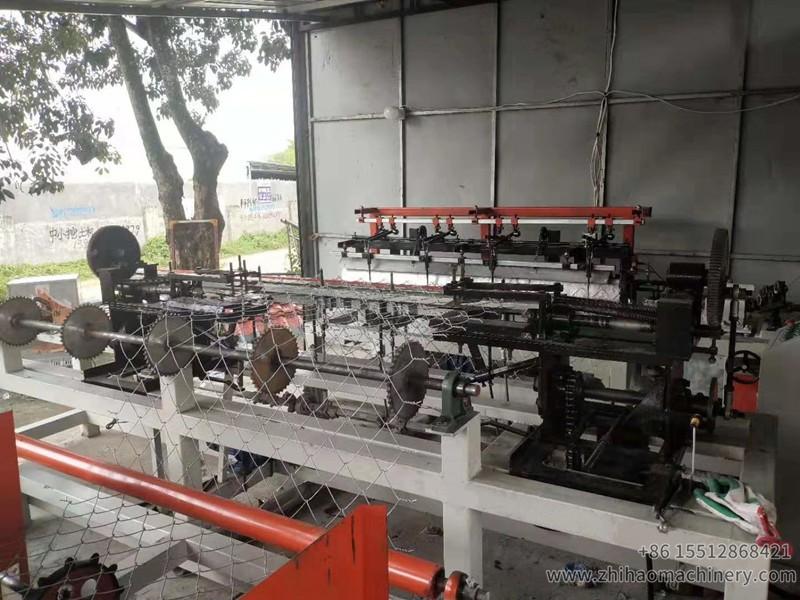

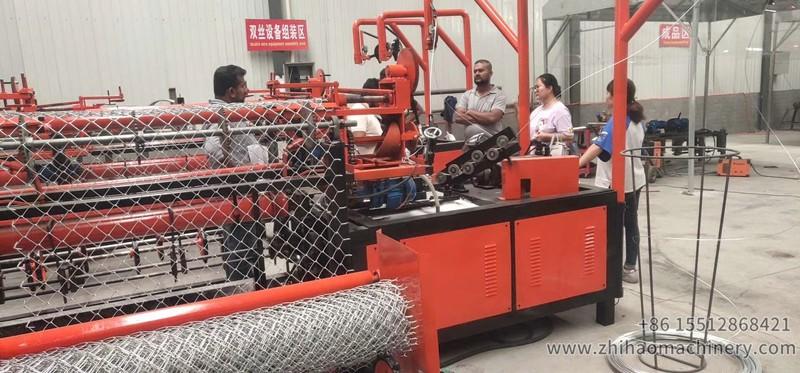

wire chain link fence mesh making machine
Technical parameter:
Model: 2-2000
Machine width: 2m
Wire mesh width: 0.5-2m
Overall dimension: netting: 5.8m *1m *2.2m, Lockrand: 5.7m *1m *1.4m, rolling mesh: 2.7m *1m *0.7m
Machine weight: 1700kg
Wire diameter: 2.0-4.5mm
Grid size: 25-120mm
Capacity: 50-120m2/h
Voltage: 3 phase 380v ( if need other volatge, can custom made)
Power:Major motor: 5.5kw Servo motor 1 setCutter: 2.2kw brake motor;1;set
lockrand: 0.75kw 3 phase motor 2 sets
rolling mesh: 0.75kw 3 phase motor 1 set（rolling mesh machine）
water pump: 30w motor 1 set
Features
Simple structure;
Very low failure rate;
Using high-speed and accurate Serve motor drive
