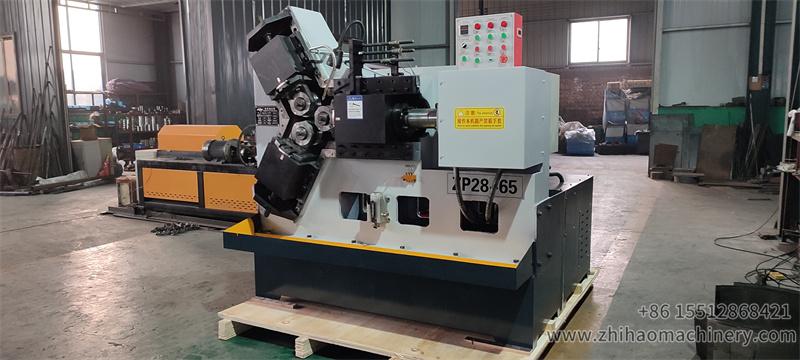

High precision hydraulic thread rolling machine for auto parts, NPT,BSPT pipe,tube,nipple,car plug

1, is specially designed for hollow parts, tubular processing, easy to operate.

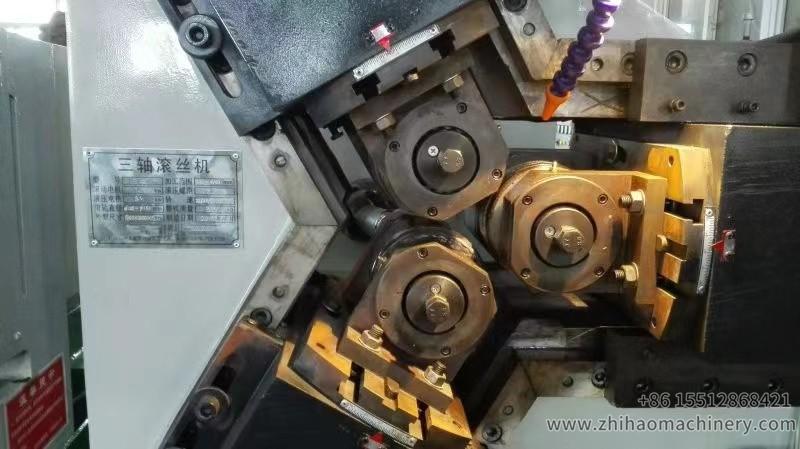

2, Three dies with equilateral triangle supports to ensure the roundness, vertical degree and concentricity.

3, Thru feed and in-feed are both available. The spindle is controlled by frequency converter, the rotation speed can be adjusted as you want.

4, With heating treatment for driving gear,lower noise and high durability

5, Specially suitable for: connectors,auto fittings, oil tube joint, motor vehicle parts, knurling of bathroom handle, NPT/BSPT tube and so on.

Technical parameter of hydraulic thread rolling machine for auto parts

Rolling thread range Diameter 50mm

Max thread pitch 6mm

Spindle angle ±5°

Max rolling pressure 120kn

Spindle RPM CVT

Roller size range Outside diameter 65-140mm

Hole 35/45mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 4.0kw

Hydraulic transmission power 1.5kw

Dimension 1400*1400*1500mm

Weight 1350kg

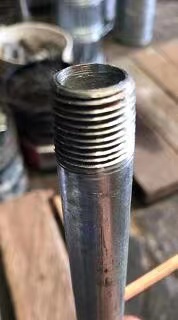

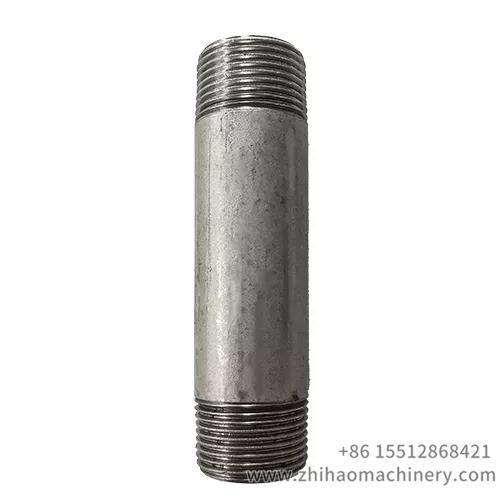

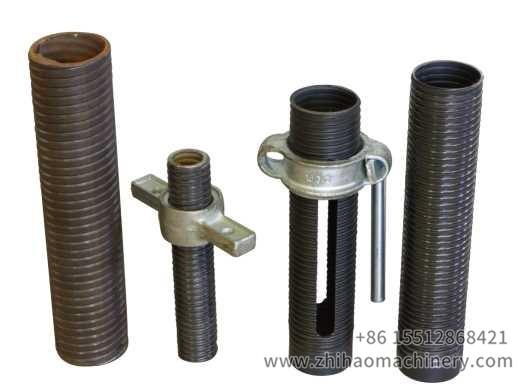

Samples for hydraulic thread rolling machine for auto parts

Delivery and shipping of hydraulic thread rolling machine for auto parts

If have any interesting for hydraulic thread rolling machine for auto parts, pls contact us freely.
