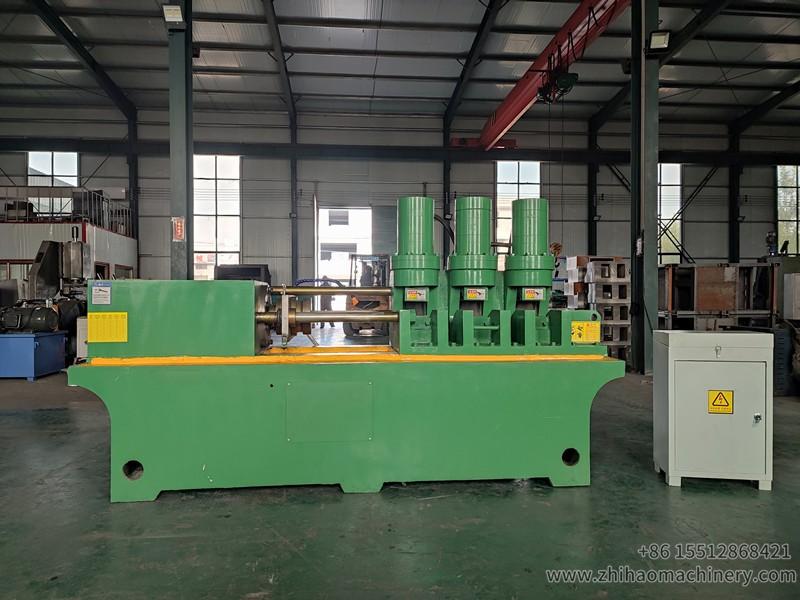

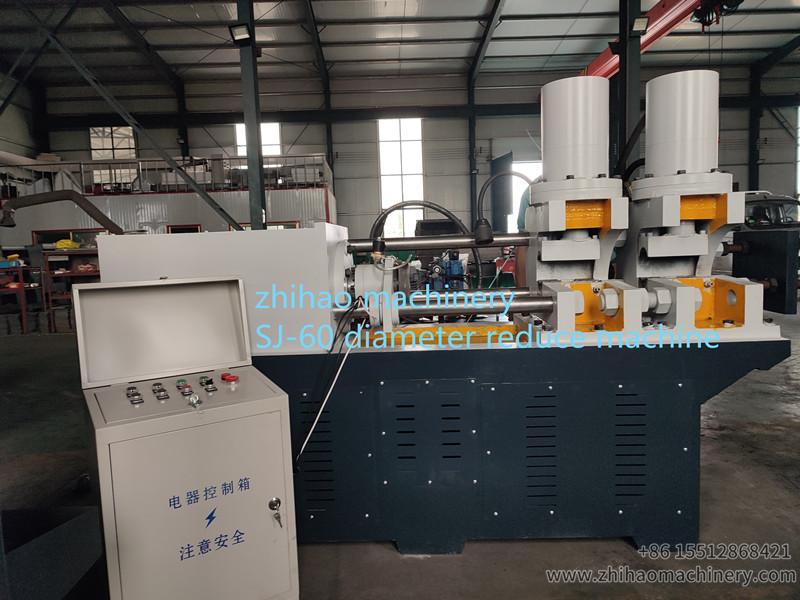

hydraulic steel rod diameter reducing machine

hydraulic steel rod diameter reducing machine

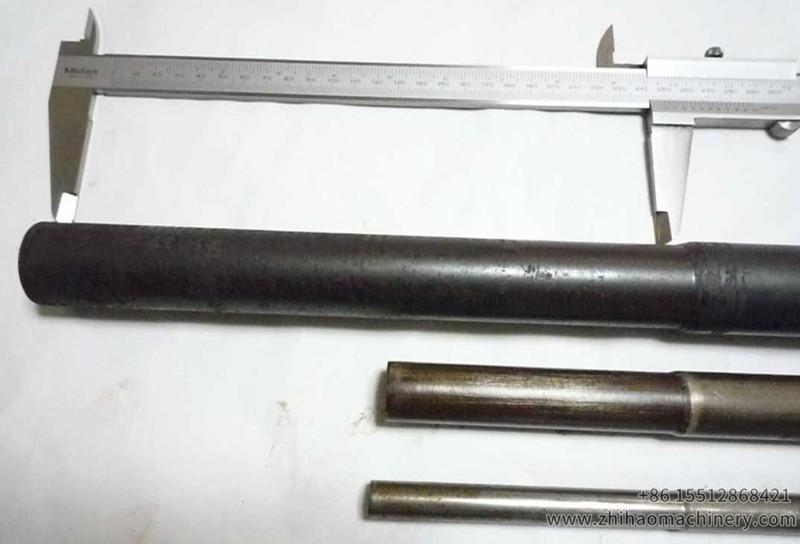

This hydraulic steel rod diameter reducing machine is a chipless maching equipment,has the advantages of high production efficiency, easy operation, saving raw materials, stable quality, it is the round steel shall be reduced diameter portion into a special mould by cold pressing, use hydraulic pressure compressing section steel density can be improved greatly, so as to improve the tensile strength of material. While the plasticity, impact toughness of malpractice. This machine is suitable for 12mm-70mm low power, low cost, high efficiency.

Technical parameter of hydraulic steel rod diameter reducing machine:

Reducing range 12-70mm

Reducing extent ≤4mm

Motor power 22kw

Reducing length 500mm

Capacity 2-6pcs/min

Extension length after reduce 10%-15%

Dimension 3100*1900*1650mm

Weight 4500kg

The working steps of hydraulic steel rod diameter reducing maching and thread rolling machine:

Delivery and Shippment for hydraulic steel rod diameter reducing machine, with strong export wooden package and fast delivery.

Customers visited

If have any interesting for hydraulic steel rod diameter reducing machine, pls contact freely.
