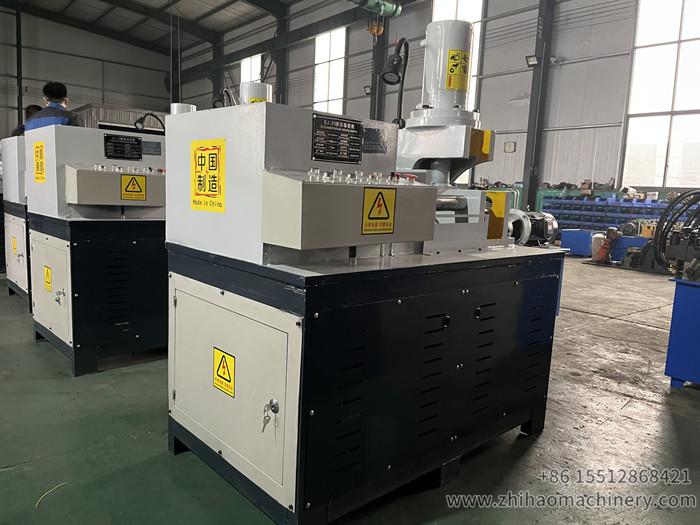

Hydraulic steel rod shrinking machine for diameter reducing

Hydraulic steel rod shrinking machine for diameter reducing

working video: https://youtu.be/5a24UGmXGa4

It is a non-cutting machine for processing which taken the advantage of efficient for production, simple for equipment, easy for operation, saving raw material, stable for quality and so on. it utilizes hydraulic technology to bring required necking parts such as circular steel and thread steel to specialized abrasive tools shrinking and molding which enhance density of pressed steel as well as tensile strength of material. the renained plastic processing and beam toughness make the intensity of shank and bar unanimous which handle the drawback of diminished stretching resistance and beam toughness caused by lathe peeling.

Rods diameter reducing machine diameter necking machine:

Technical parameter:

Model: SJ-25 steel bar stud bolt diameter reducing machine

Brand: ZHIHAO

Reducing range:12-24mm

Reducing extent: ≤2.5mm

Motor power: 11kw

Reducing length: 250mm

Extension length after reduce: 10%-15%

Capacity: 5-8pcs/min

Dimension: 1650*1600*1600mm

Weight: 1400kg

More questions of Hydraulic steel rod diameter shrinking machine and threaded rod thread rolling machine, pls contact zhihaomachinery freely.
