self drilling anchor bolts fasteners screw pipe thread rolling machine

Model: ZP28-65 self drilling anchor bolts fasteners screw pipe thread rolling machine
Max rolling diameter: 80mm
Max rolling thread pitch: 8mm
Rolling pressure: 250kn
Brand: ZHIHAO
Description: The equipment adapt to all kinds of materials, such as carbon steel, alloy steel and non-ferrous metals.These material extension rate is greater than 10% and the compressive strength is less than 100kgf/m²

self drilling anchor bolts fasteners screw pipe thread rolling machine

technical parameter, zhihaomachinery

Model ZP28-65 self drilling anchor bolts fasteners screw pipe thread rolling machine

Rolling thread range Diameter 80mm

Max thread pitch 8mm

Spindle angle ±6°

Max rolling pressure 250kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 180mm

Hole 54mm

Max width 100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss

Spindle drive power 11kw

Hydraulic transmission power 3.0kw

Dimension 1800*2200*1800mm

Weight 3100kg

description, zhihaomachinery

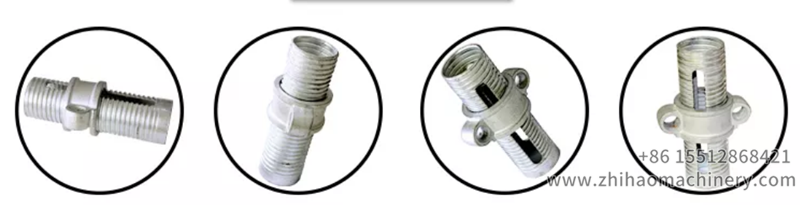

self drilling anchor bolts fasteners screw pipe thread rolling machine is used to thread solid and hollow pipes for making base jacks,solid jacks,u-jacks,outer prop sleeve.It uses three rolls to thread a base jack. Base jacks,solid jacks,outer prop sleeve is then welded on welding fixtures like Base jack welding machine,Outer prop welding machine,Inner prop welding machine. Scaffolding Three Roll Thread Rolling Machine is best suitable to give high production with good quality of thread.Three Roll Thread Rolling Machine is designed specially for scaffolding industry. Arc flow welder is a manufacturer of Standard cuplock welding machine, Automatic vertical cuplock welding machine, Cuplock welding machine, Standard ledger welding machine, Automatic ledger welding machine, Scaffolding ledger welding machine, Scaffolding welding machine, Scaffolding inner prop welding machine, Automatic inner prop welding machine, Automatic Scaffolding inner prop, Inner prop welding machine, Automatic Scaffolding outer prop welding machine, Automatic outer prop welding machine, Scaffolding outer prop welding, Base jack welding machine, Automatic base jack welding machine, U-jack welding machine, Scaffolding base jack machine, Automatic ringlock welding machine, Standard ringlock welding machine, Automatic multidrilling machine, Prop drilling machine, Scaffolding drilling machine, Scaffolding welding machines, Scaffolding welding, Automatic scaffolding welding machines, Scaffolding thread rolling machine, Thread rolling machine, Base jack threading machine, Manufacturer/Exporter/Maker/Makers of Scaffolding welding machines. We provide complete solution to scaffolding plants.Our machines are specially designed to meet the export quality and requirements of our clients.

pipe thread rolling machine, zhihaomachinery

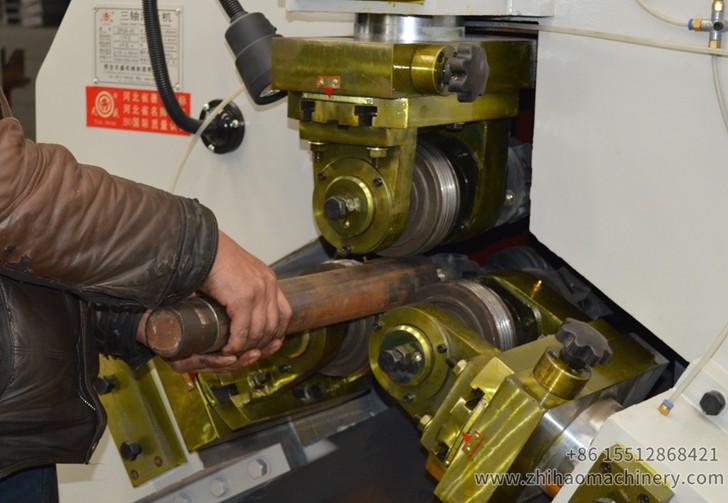

1.Three spindle of the pipe thread rolling machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Three rolling wheels make the work as required and other thread shape by rolling.

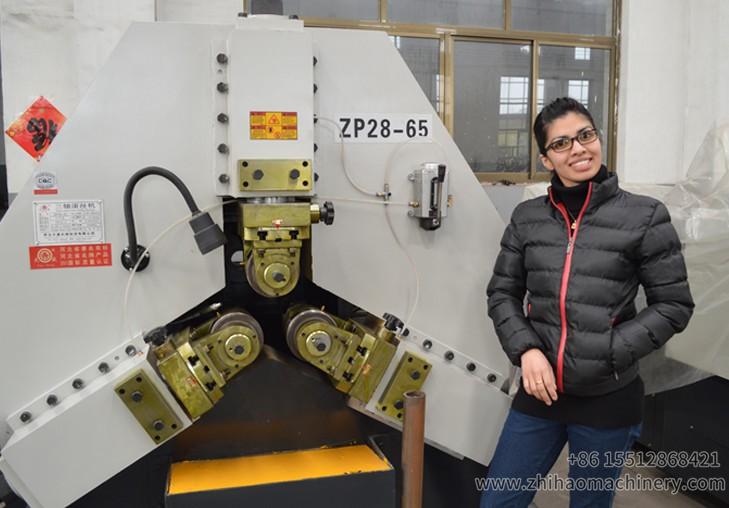

2.This pipe thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat, a movable spindle seat, hydraulic system and electrical parts etc.

3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.

4.This automatic pipe thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .

5.The two spindle seat adjust center respectively. Angle of table axis can be adjusted in the plus or minus 3 degrees. Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.

photos, zhihaomachinery
