pipe diameter reduce tools in Morocco

Model: SJ-42 pipe diameter reduce tools in Morocco
Brand: ZHIHAO
Reducing range:12-45mm
Reducing extent: ≤3mm
Motor power: 15kw
Reducing length: 400mm
Extension length after reduce: 10%-15%
Capacity: 3-6pcs/min
Dimension: 2200*1600*1650mm
Weight: 2500kg

pipe diameter reduce tools in Morocco

Technical parameter of pipe diameter reduce machine:

Reducing range 12-45mm

Reducing extent ≤3mm

Motor power 15kw

Reducing length 400mm

Capacity 3-6pcs/min

Extension length after reduce 10%-15%

Dimension 2200*1600*1650mm

Weight 2500kg

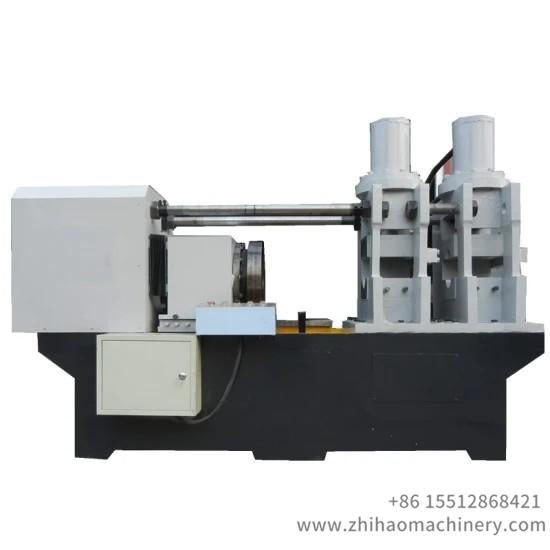

Product Description

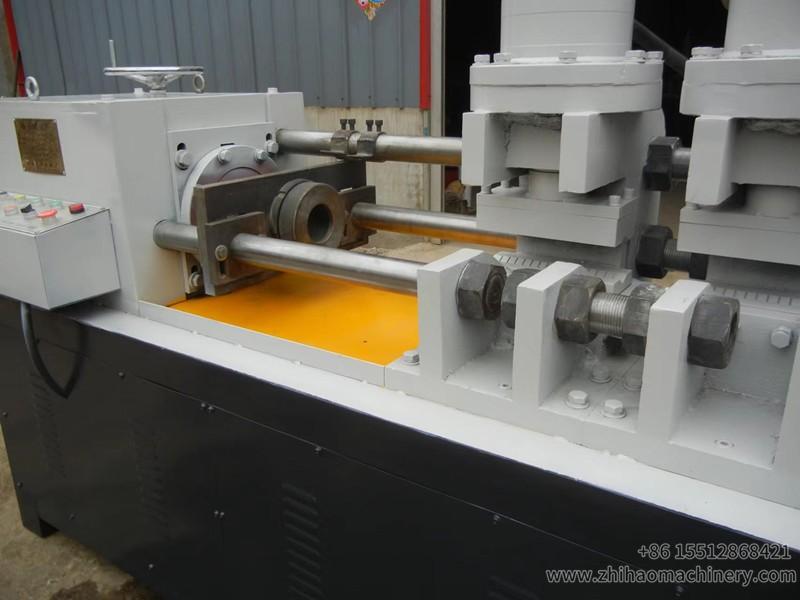

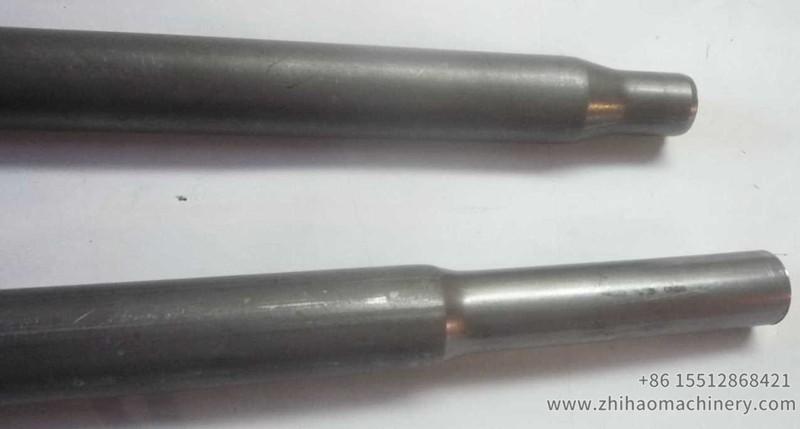

The unique double clamping cylinder design of the reducing mill, open material taking, casting base, external pump station and air-cooled cooler better improve the performance of the equipment, greatly reduce the shortcomings of loose clamping, unstable center and high oil temperature, and truly achieve better, faster and stable use. The diameter reducing machine belongs to non cutting processing equipment, which has the advantages of high production efficiency, simple process, easy operation, saving raw materials, stable quality and so on. It uses hydraulic technology to send the reduced diameter parts such as round steel and deformed steel into special grinding tools for cold shrinkage and compression molding. The steel density of the compressed part can be greatly improved, so as to improve the compressive strength of the material. The plasticity and impact toughness are not reduced, so that the strength of the screw thread part and the rod body part is consistent, which solves the disadvantage of reducing the pressure resistance and impact toughness due to the peeling of the lathe. Hydraulic reducing machine is a non cutting equipment, which has the advantages of high production efficiency, simple process, easy operation, saving raw materials, stable quality and so on. It uses hydraulic technology to send the reduced diameter parts such as round steel and deformed steel into special grinding tools for cold shrinkage and compression molding. The steel density of the compressed part can be greatly improved, so as to improve the compressive strength of the material. The plasticity and impact toughness are not reduced, so that the strength of the screw thread part and the rod body part is consistent, which solves the disadvantage of reducing the pressure resistance and impact toughness due to the peeling of the lathe. It can be used as large-diameter round steel, anchor screw, double head construction screw and high-speed bridge screw. It is an ideal equipment for producing mine anchor bolt, anchor screw and long rod screw. The equipment can compress the material into rolling wire diameter at one time, enhance the density and length of the material, and improve the tensile strength of the anchor rod. It is a replacement product instead of lathe stripping. Compared with the instrument lathe, it has the advantages of fast processing speed, high finish and accurate size. It can prolong the length of material, save material and reduce cost.
