steel bar diameter reduction machine

steel bar diameter reduction machine

Steel bar diameter reduce machine, rod reduce necking machine, Hydraulic steel pipe shrinking machine, reducing diameter machine, Steel rod bar pipe Diameter Reducing Machine, steel bar diameter reduction machine is a non-cutting processing equipment, which has the advantages of low production efficiency, simple process,easy operation, saving raw materials and stable quality. It uses hydraulic technology to send the reduced diameter part of round steel, rebar, etc. into the special grinding tool by cold shrink molding, and the density of the steel in the shrinkage part can be greatly improved, thereby improving the compressive strength of the material. The plasticity and impact toughness are not reduced,so that the strength of the threaded part and the part of the rod are consistent,which solves the disadvantages of reducing the resistance to pressure and toughness due to the peeling of the lathe.The liquid compression boring machine is a non-cutting processing equipment, which has the advantages of high production efficiency,simple process, easy operation, saving raw materials and stable quality. It uses hydraulic technology to send the reduced diameter part of round steel, rebar, etc. into the special grinding tool by cold shrink molding, and the density of the steel in the shrinkage part can be greatly improved, thereby improving the compressive strength of the material. The plasticity and impact toughness are not reduced,so that the strength of the threaded part and the part of the rod are consistent, which solves the disadvantages of reducing the resistance to pressure and toughness due to the peeling of the lathe.

Technical parameter:

Reducing range 12-60mm

Reducing extent ≤4mm

Motor power 18.5kw

Reducing length 500mm

Capacity 2-4pcs/min

Extension length after reduce 10%-15%

Dimension 2450*1800*1650mm

Weight 3800kg

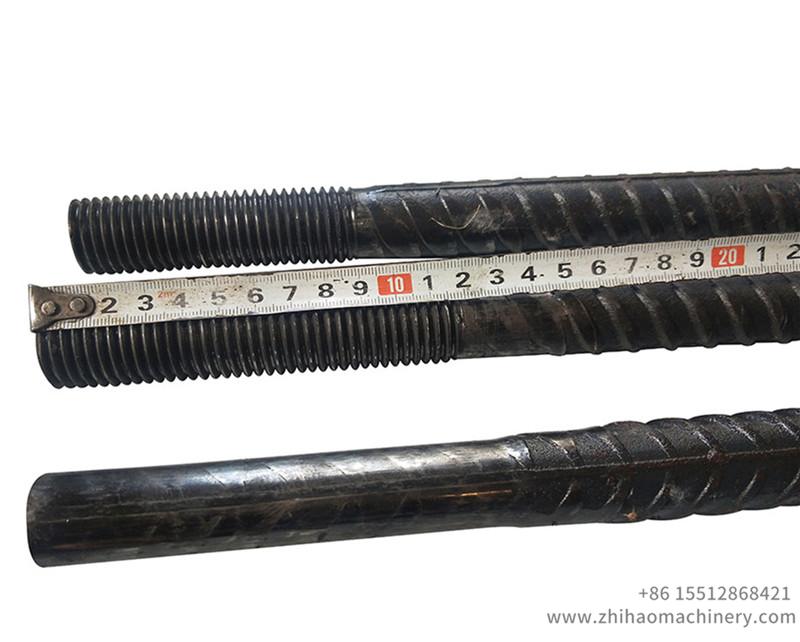

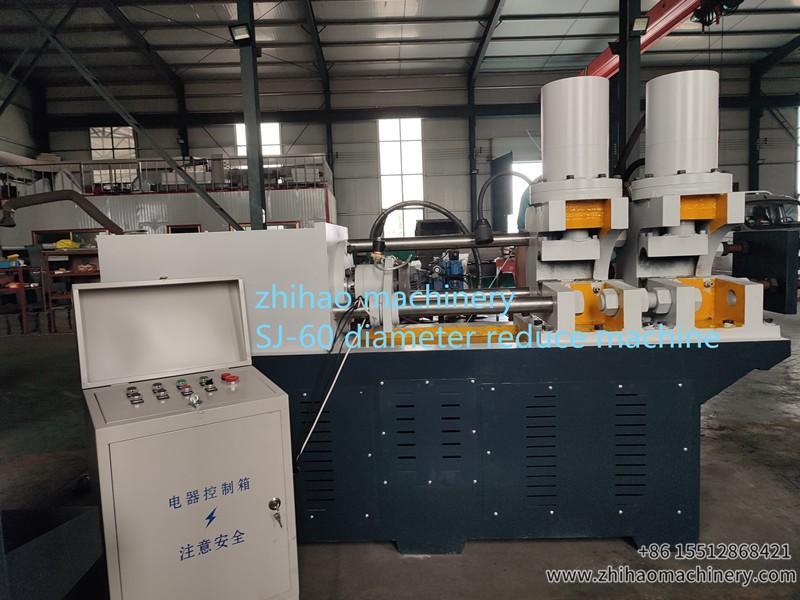

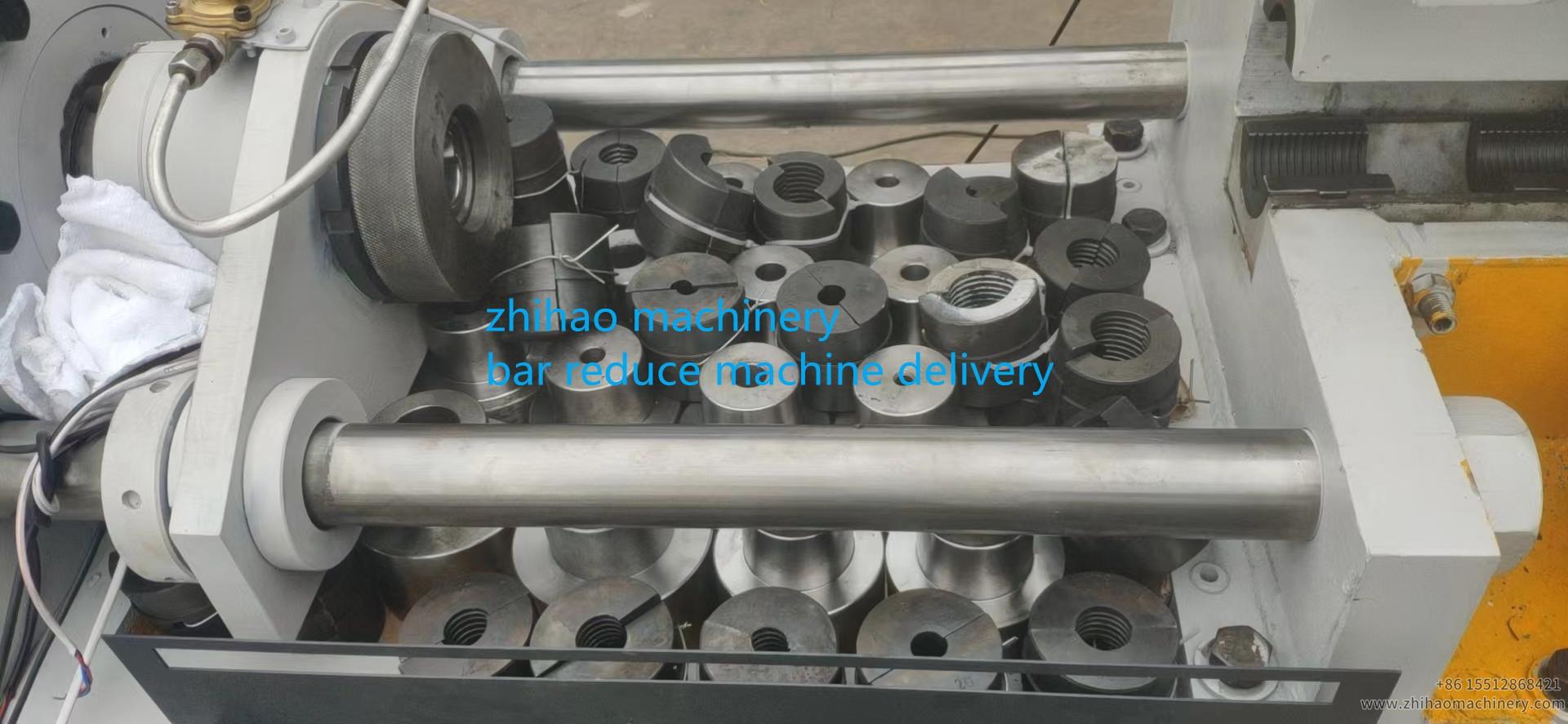

Good quality steel bar diameter reduction machine detailed photos:

If have any interesting for steel bar diameter reduction machine, pls contact zhihaomachinery freely.
