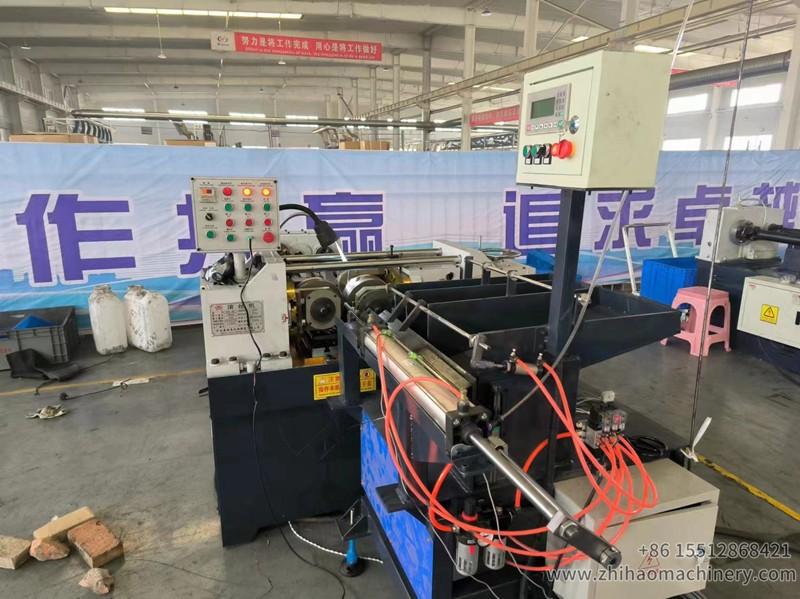

Automatic thread rolling machine for U-shaped Anchor Bolt

This model is widely praised for its rational price, easy maintenance and high quality. besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller embossing roller. the through screw made with this machine in zhejiang standard parts base has been exported to US Canada and Europe.

Technical parameter of automatic thread rolling machine for U-shaped Anchor Bolt:

Model Z28-80 two roll thread rolling machine

Rolling thread range Diameter 5-48mm

Roller size range Outdiameter 120-170mm

Hole54mm Max width100mm

Thread pitch 0.5-4mm

Spindle Angle ±8°

Max rolling pressure 160kn

Spindle drive power 4.0kw

Spindle RPM 37/46/63/79rpm

Hydraulic transmission power 2.2kw

Dimension 1520*1400*1450mm

Weight 1600kg

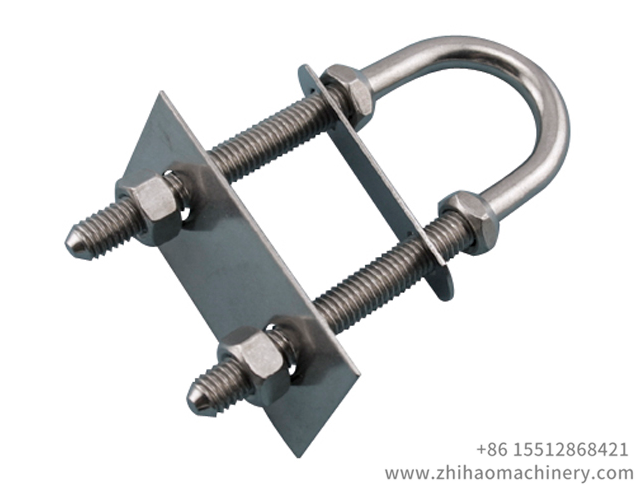

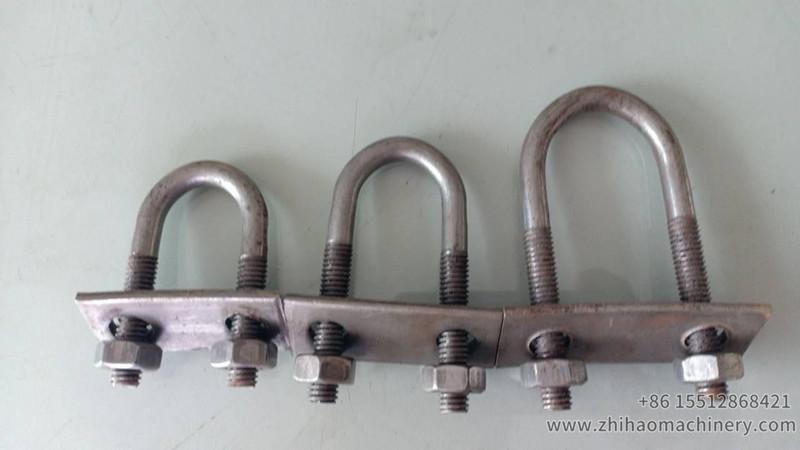

Finished workpiece of automatic thread rolling machine for U-shaped Anchor Bolt:

Any questions for automatic thread rolling machine for U-shaped Anchor Bolt, pls contact us freely.
