2 axis thread rolling machine for Stainless Steel Thread Rod End Bearings
Model: Z28-360
Max rolling diameter: 100mm
Max rolling thread pitch: 10mm
Max rolling pressure: 450kn
Brand: ZHIHAO
Description: Z28-360 metal steel hread rolling machines are used to produce screws, bolts, and studs. Thread rolling is a cold-form forming operation used to form external screw threads in a blank. During the thread rolling process, a hard die is pressed onto a rotating workpiece (also called a blank) that is attached to the tie rod thread rolling machine.
2 axis thread rolling machine for Stainless Steel Thread Rod End Bearings
HIGH PRECISION
HIGH STABILITY
SIMPLE CONTROL
EASY MAINTENANCE
Technical parameter of 2 axis thread rolling machine for Stainless Steel Thread Rod End Bearings:
Items Z28-360
Rolling thread range Diameter 100mm
Max thread pitch 10mm
Spindle angle ±10°
Max rolling pressure 450kn
Spindle RPM CVT
Roller size range Outside diameter 230mm
Hole 75/85mm
Max width 200mm
Rolling time 0.1-99.9s
Rest time 0.1-99.9ss
Spindle drive power 15kw
Hydraulic transmission power 11kw
Dimension 2150*1850*1550mm
Weight 3600kg

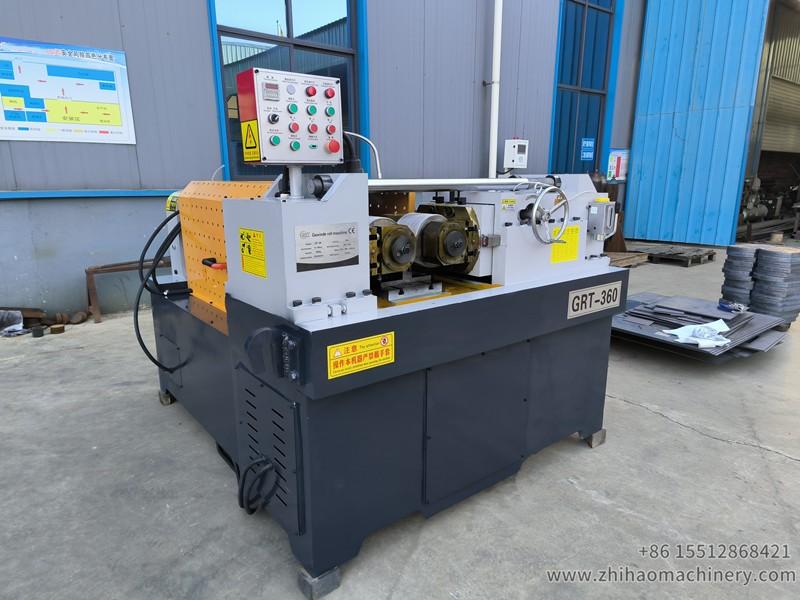

Photos for 2 axis thread rolling machine for Stainless Steel Thread Rod End Bearings:
Any more questions of 2 axis thread rolling machine for Stainless Steel Thread Rod End Bearings, pls contact us freely.
