Anchor Bolt Reduce Diameter Machine

Anchor Bolt Reduce Diameter Machine

Automatic anchor bolt reduce diameter machine is primarily used for manufacture various types of precision external roll thread,

high strength standard parts, the large anchor bolts, T-screw roll thread and so on.

Technical parameter of anchor bolt reduce diameter machine:

Reducing range 12-60mm

Reducing extent ≤4mm

Motor power 18.5kw

Reducing length 500mm

Capacity 2-4pcs/min

Extension length after reduce 10%-15%

Dimension 2450*1800*1650mm

Weight 3800kg

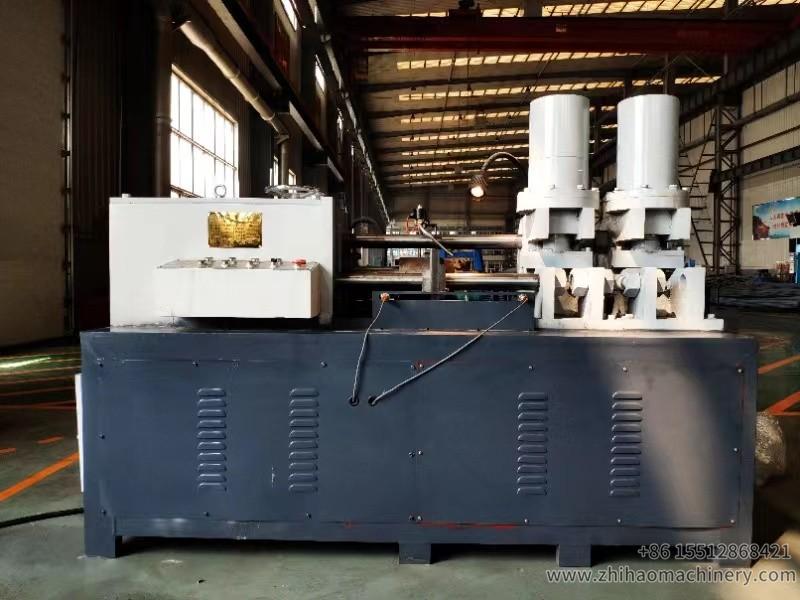

Detailed photos of anchor bolt reduce diameter machine:

Features of anchor bolt reduce diameter machine:

High output and lower noise

No limit with processing length

Manufacture sophisticated, maintenance easily

Adjustable threading speed by invter

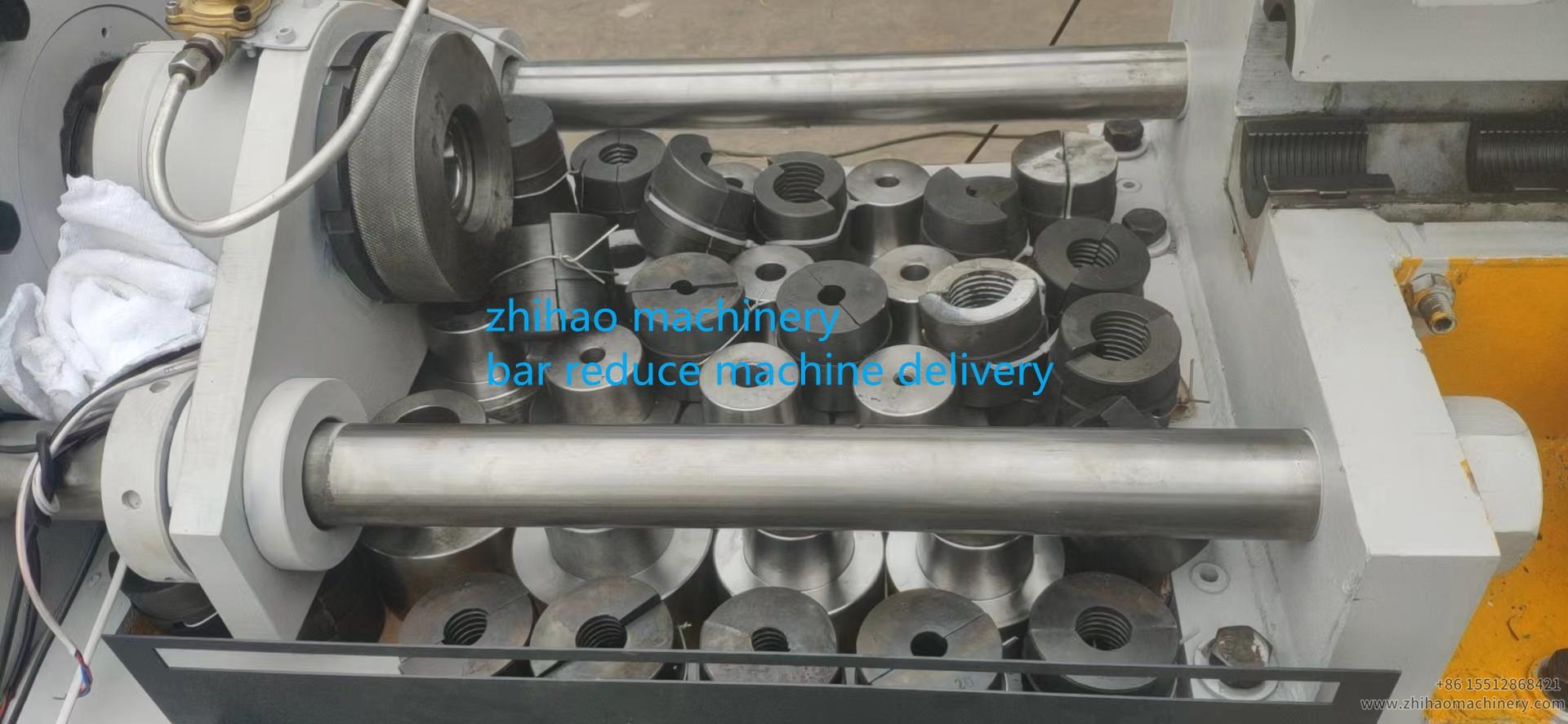

Moulds:

Workpiece after use anchor bolt reduce diameter machine:

We also supply high quality automatic thread rolling machine:

More questions for anchor bolt reduce diameter machine, pls contact zhihaomachinery freely.
