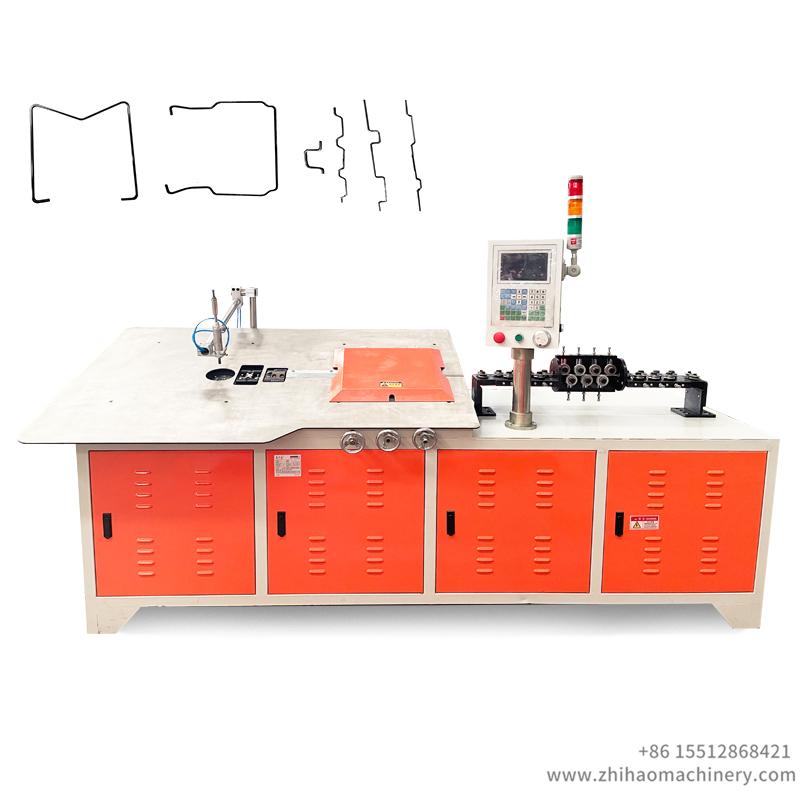

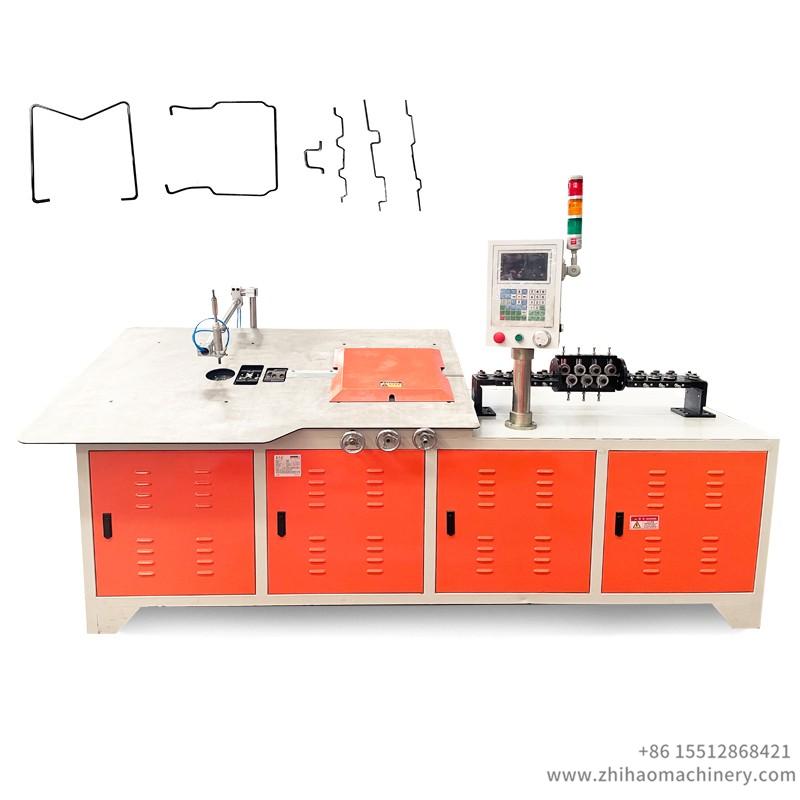

Steel wire 2d bending machine

steel wire 2d bending machine

Advantages and Feature of steel wire 2d bending machine:

3-4 pars feeding roller, 3 groups wire-straightening wheels feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light, turning angle is more precise and stable. Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.

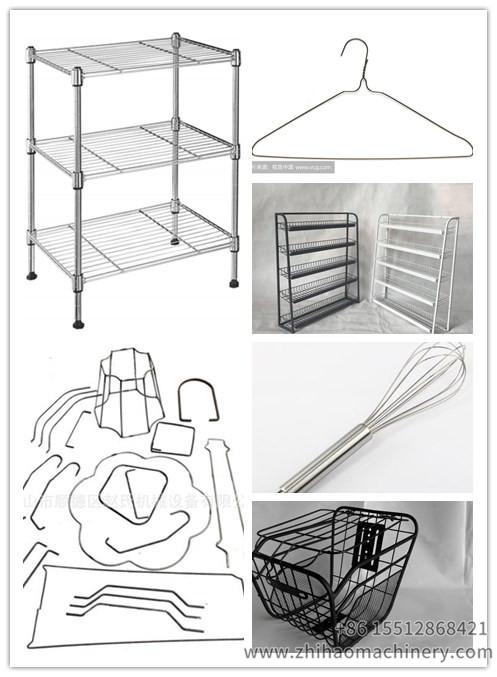

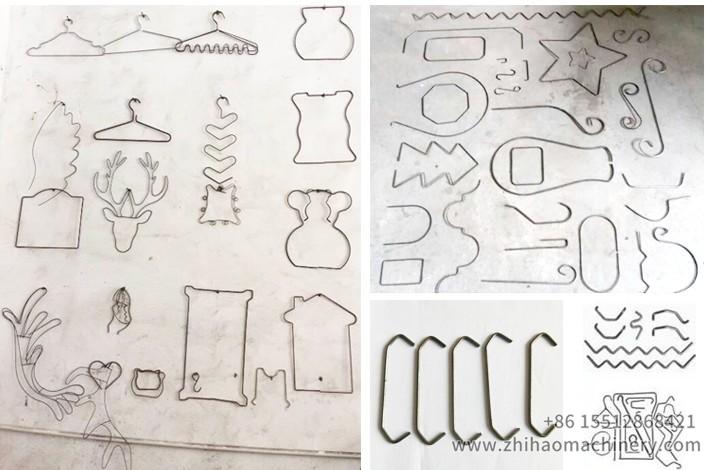

Application field of steel wire 2d bending machine:

1)Auto Industry area

2)Metal wire industry

3)Display table and cargo shelf

4)Furniture and Kitchen

5)Hardware industry

6)Mattress, Sofa spring area

7)Architecture area

8)Hardware Artcraft

Technical parameter of steel wire 2d bending machine:

Axle number 3

steel Wire Diameter 2-6mm

Number of feeder wheels (group): 3

Wire Range: Round line, flat line, square line (suitable for any wire material)

Storage: 10,000 data, 300 actions in a group

Maximum feeding speed (m/min): 100

Servo motor power of feeding shaft (kW) : 2.3

Cutter Shaft Servo Motor Power (kW): 1.5

Power of bending Axis Servomotor (kW)): 2.3

Irection of action: Internal and external die can be lifted and bended in both directions.

Feeding accuracy (mm): ±0.1

Maximum bending speed: 800 rpm, angle (+180)

Capacity 25-30pcs/min, (200*200mm square)

Operating system :32-bit Chinese and English (with upload and download functions)

Woltage 380V,50HZ/60HZ

Weight (KG) 1400KG

Machine size (length * width * height mm) 2500*1000*1680mm

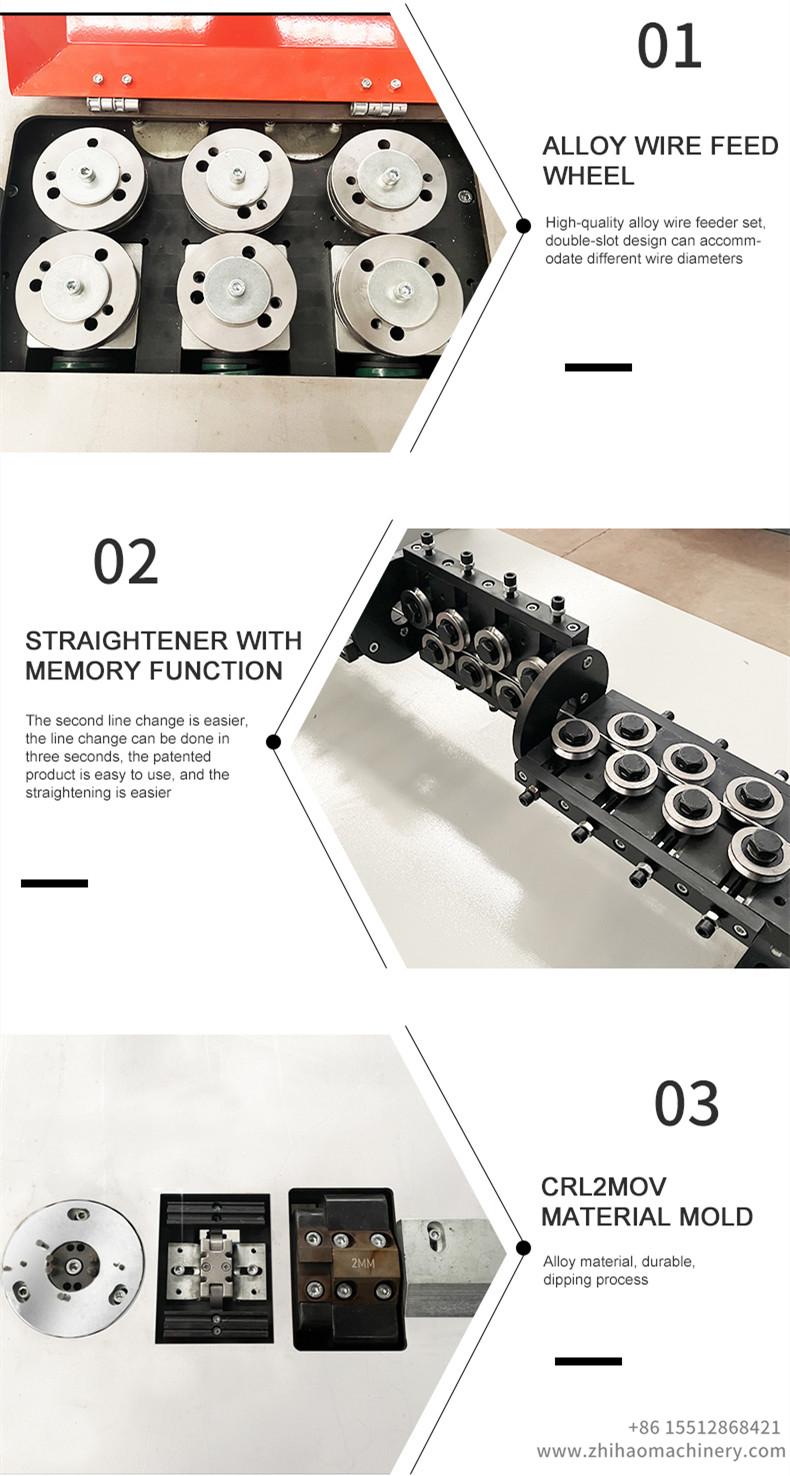

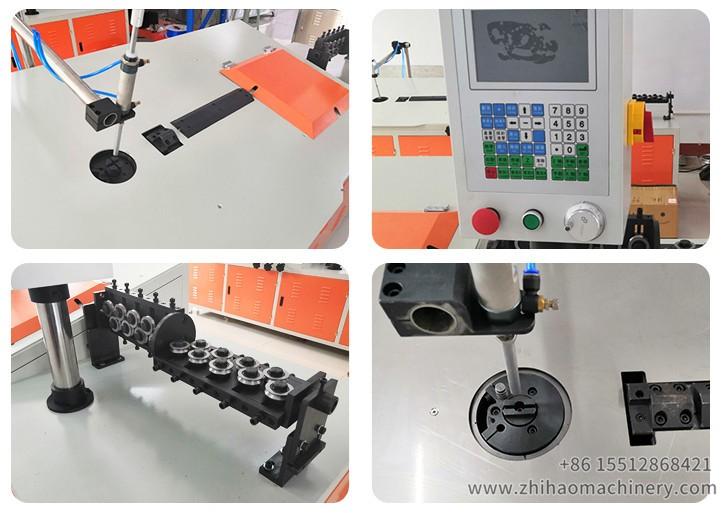

Detailed photos of steel wire 2d bending machine:

If have any interesting for steel wire 2d bending machine, pls coontact us freely.
