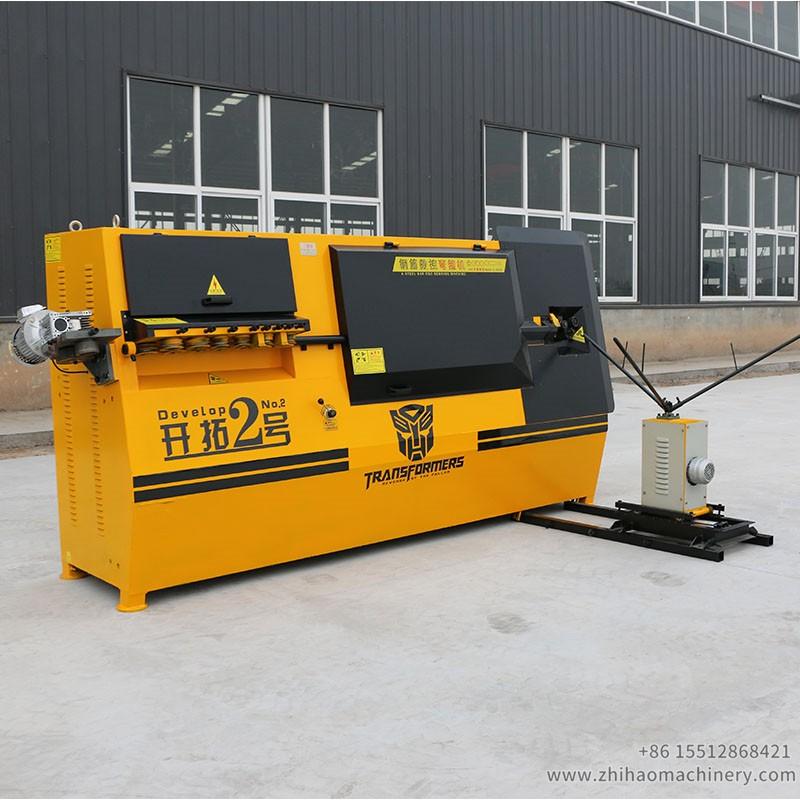

China automatic rebar stirrup bender machine manufacturer

Model: KT2 China automatic rebar stirrup bender machine manufacturer
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 20kw
Brand: ZHIHAO
Description: 1. The automatic stirrup bending machine is used for bending .
2. The automatic stirrup bending machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.
4. widly variety.can produce more than 100 different types wokpiece

China automatic rebar stirrup bender machine manufacturer

stirrup bending machine manufacturer, zhihaomachinery china stirrup bender machine, zhihaomachinery automatic stirrup bender machine, zhihaomachinery

Model KT2 single bending way China automatic rebar stirrup bender machine manufacturer

Single wire Round steel 4-12mm

Ribbed bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Center pin diameter 16/18/20

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3200*1000*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 20kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1350kg

China automatic rebar stirrup bender machine advance:

1.it can bending max diameter 12mm

2.CNC control,PLC opreat system

3.it can automatically complete straighten,size,bend and cut.

4.Large storage capacity can save 900 processing geometric graphics, high degree automation

5.High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs.

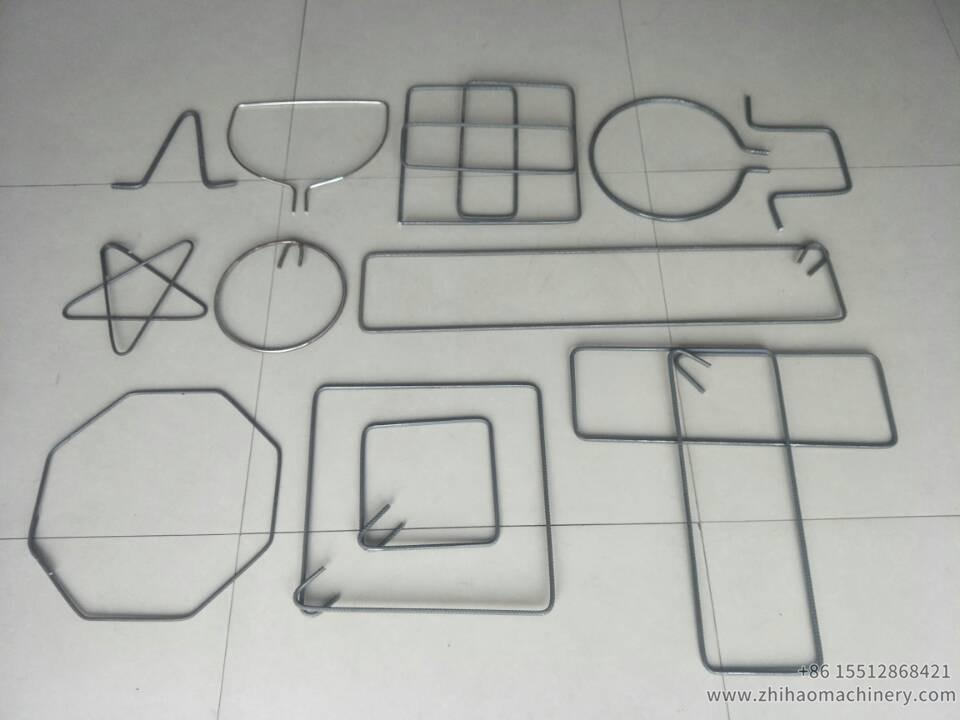

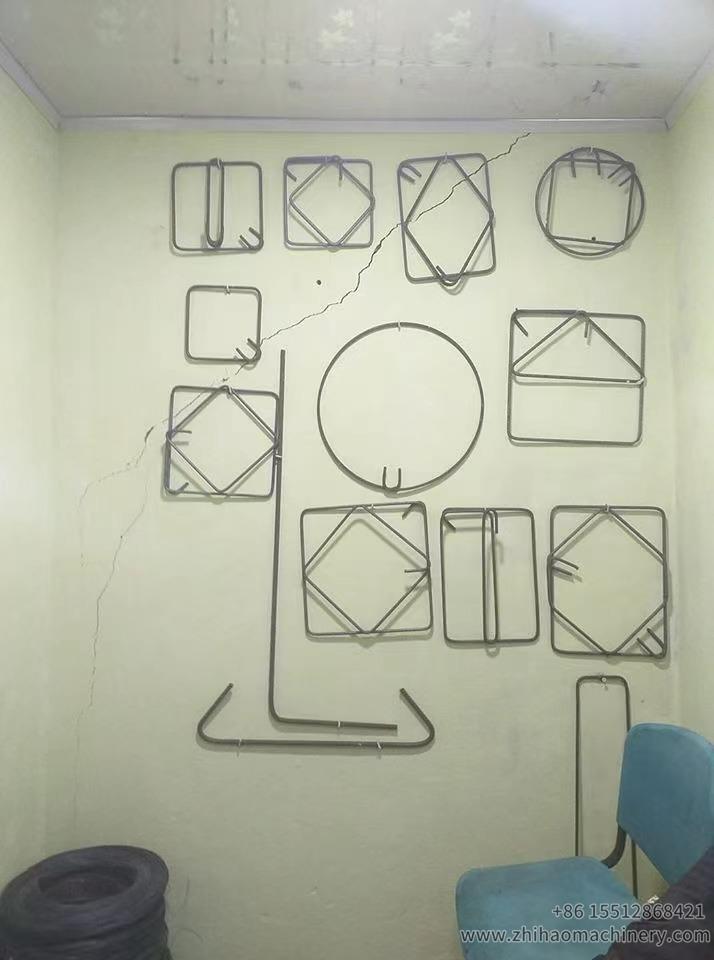

Finished workpieces of china automatic rebar stirrup bender machine:
