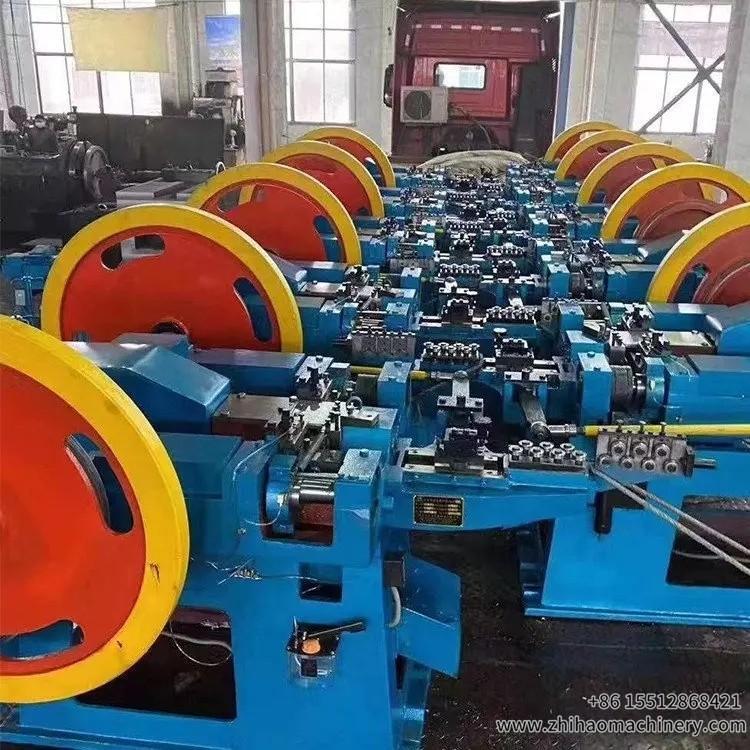

concrete steel iron nail making machine

concrete steel iron nail making machine

Technical parameter:

4C steel nail making machine

Dia of nail : 2.8-4.5mm

Length of nail : 2-4inch

Designed capacity : 280 pcs/min

Motor power :5.5kw

Weight : 2000 kg

Dimensions: 2130*1560*1580mm

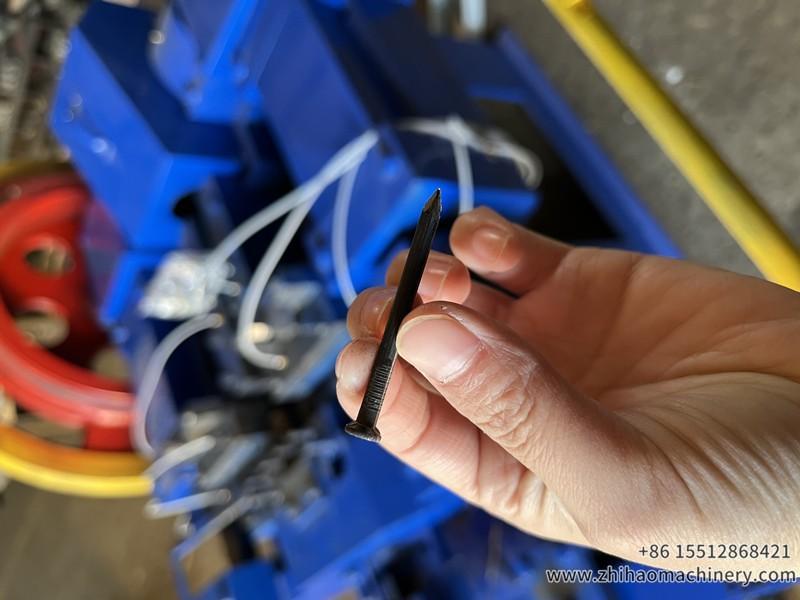

Concrete steel iron nail making machine Process:

1. Wire Straightening: put the wire coil on pay-off rack and input wire to traightening device for straightening.

2. Wire Feeding: The feeding box will grip and feed the steel wire continuously.

3. Nail head Forming: When the steel wire is clamped by the gripping mechanism, the punch system will punch the wire to form the

nail head.

4. Nail Tip Cutting: After the extrusion is completed, the cutting mechanism cuts the wire, and an emergency return mechanism can

be used.

5. Final Step: The gripping die open, the nail is dropped down and the next nail will be made continuously.

Free moulds for Z94 automatic galvanized wire nail making machine:

Package and delivery:

Load in container directly:

24 hours online service

1.Help you choose the most suitable machine.

2.customize the machine according to your request.

3.give you machines details and video for help you use the machine more better.

4.Normally the service life of our machines can be 3-5 years.

5.We offer full set of easy-spoiled spare parts and tools for back up.

6.We can send our engineer abroad to training customers to operate the machine.

7.Normally we can resolve any problem online together with our customers.

Any more question pls contact zhihaomachinery freely.
