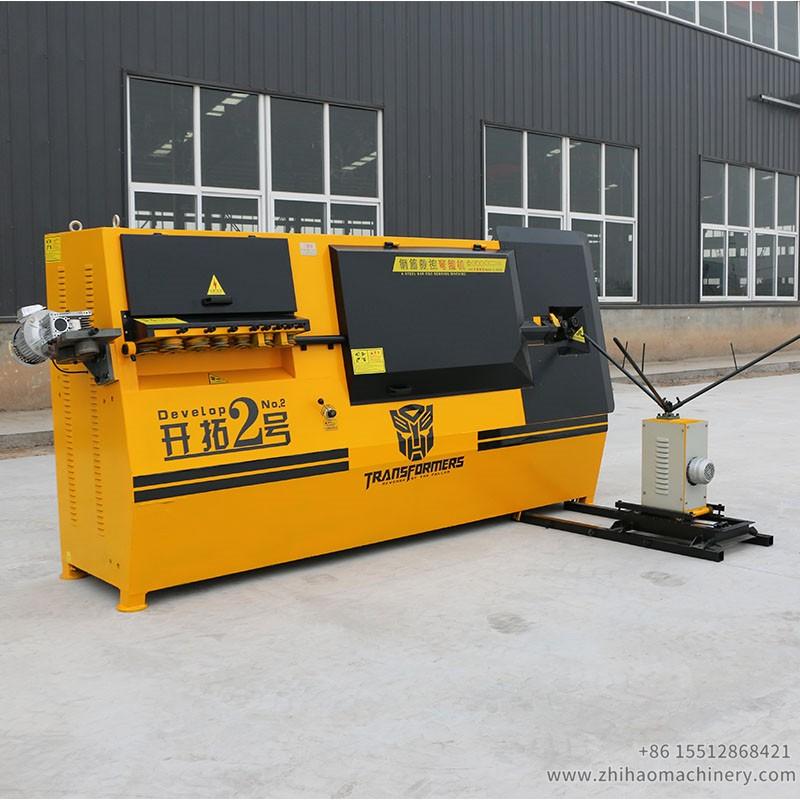

CNC stirrup bender doblador de estribos

Model: KT2 cnc stirrup bender
Max single bending diameter: 12mm
Max double bending diameter: 8mm
Total power: 20kw
Brand: ZHIHAO
Description: 1. The automatic stirrup bending machine is used for bending .
2. The automatic stirrup bending machine uses high-quality, fast, energy-saving steel construction process, ensuring efficiency and effective.
3. But also provides the premise for the low price and high quality.
4. widly variety.can produce more than 100 different types wokpiece

CNC stirrup bender doblador de estribos

Model KT2 single bending way cnc stirrup bender technical parameter

Single wire Round steel 4-12mm

Ribbed bar 4-10mm

Double wire Round steel 4-8mm

Ribbed steel bar 4-8mm

Max bending angle ±180°

Center pin diameter 16/18/20

Max towing speed 60m/min

Max bending speed 800°/sec

Dimension 3200*1000*1700mm

Machine color Yellow (customized)

Process piece ≤ 2

Air system pressure ≥ 0.8mpa

Total power 20kw

Work temperature -5℃---40℃

Length accuracy ±1mm

Angle accuracy ±1°

Average power 5kw/h

Weight 1350kg

rebar bending machine, zhihaomachinery stirrup bender, zhihaomachinery

Description of cnc stirrup bender:

Automatic Stirrup Bending Machine is an extension of the steel bending machine duo to its multi-functions. It is integrated steel processing equipment with straightening, bending and cutting functions. Therefore, steel bars can be processed into various angles and radius used to construction, such as triangle, quadrangle, pentagram, ring, many other polygons, etc. Our Zhihao machinery Automatic stirrup bending machine with factory price directly, is very popular with our clients at home and abroad for its features of high efficiency, precise cutting, fast speed and low price with high quality.

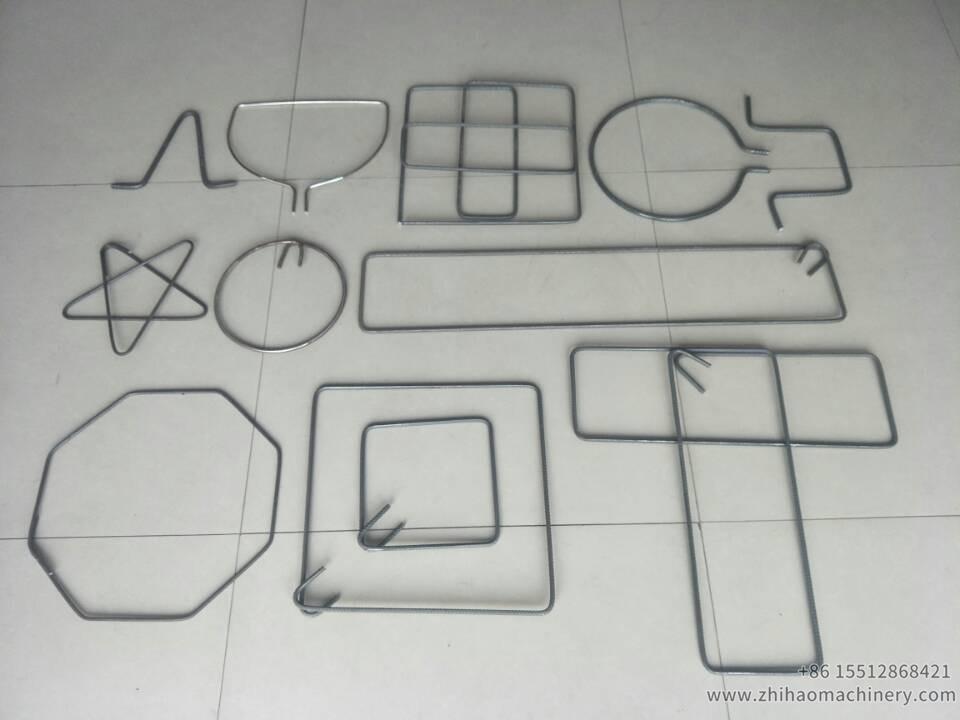

Finished workpieces of cnc stirrup bender:

cnc stirrup bender, zhihaomachinery
