threaded rods bar threading machine in Brazil

threaded rods bar threading machine in Brazil

Features:

1.Thread rolling machine with automatic feeder can save labor and cost.

2.Thread rolling machine with automatic feeder have high productivity.

3.Operation of thread rolling machine with automatic feeder are more safe.

Technical parameter:

Model Z28-150 bar threading machine

Rolling thread range Diameter 5-56mm

Max thread pitch 5.0mm

Spindle angle ±8°

Max rolling pressure 180kn

Spindle RPM 37/46/63/79rpm

Roller size range Outside diameter 120-170mm

Hole 54mm Max width 30-100mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 5.5kw

Hydraulic transmission power 2.2kw

Cooling pump power 90w

Dimension 1560*1450*1450mm

Weight 1850kg

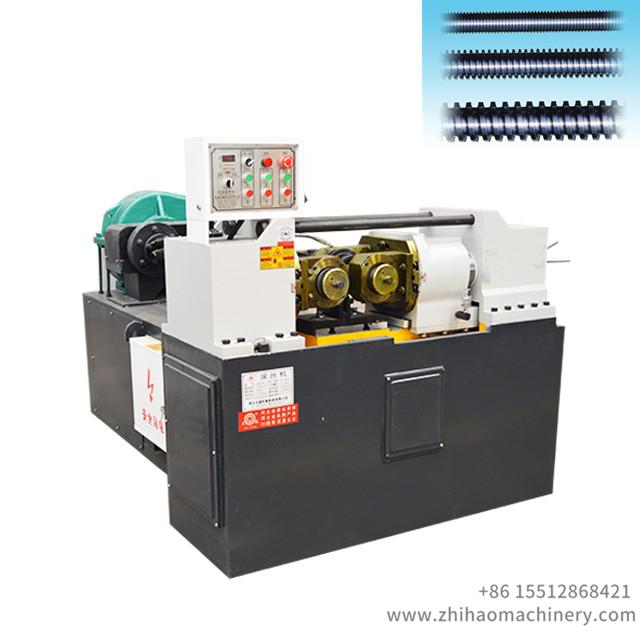

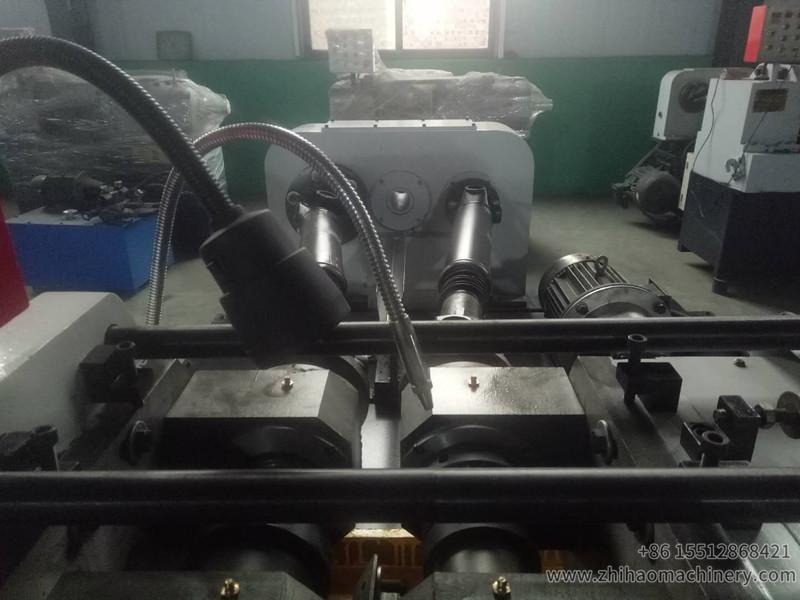

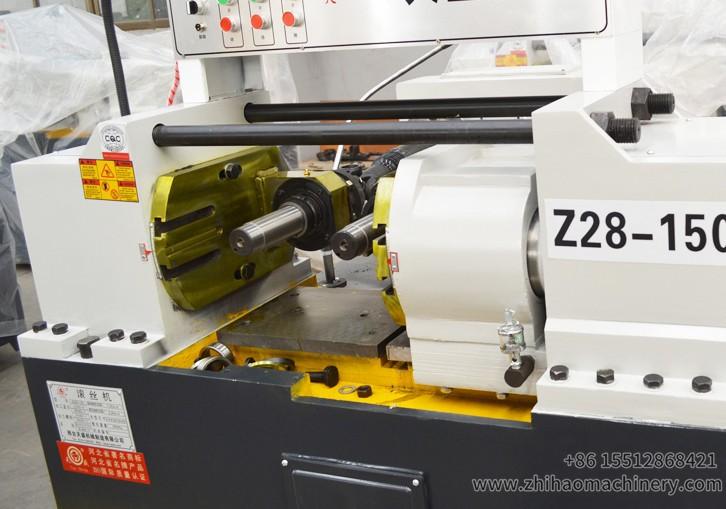

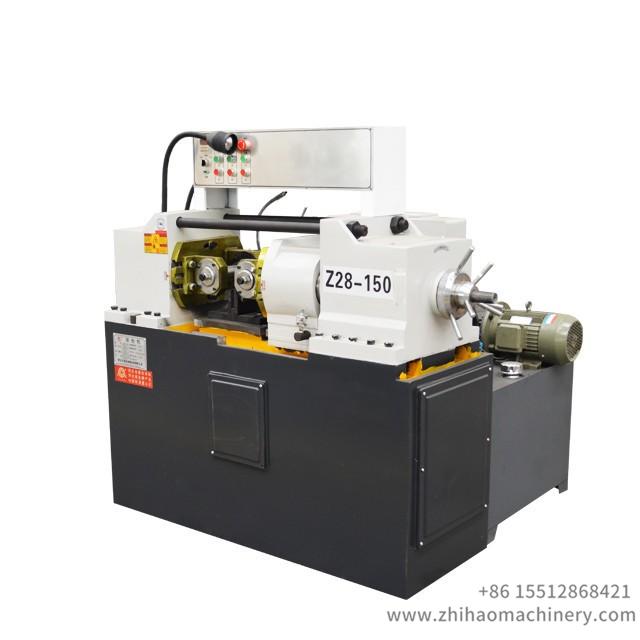

Detailed photos of threaded rod bar threading machine:

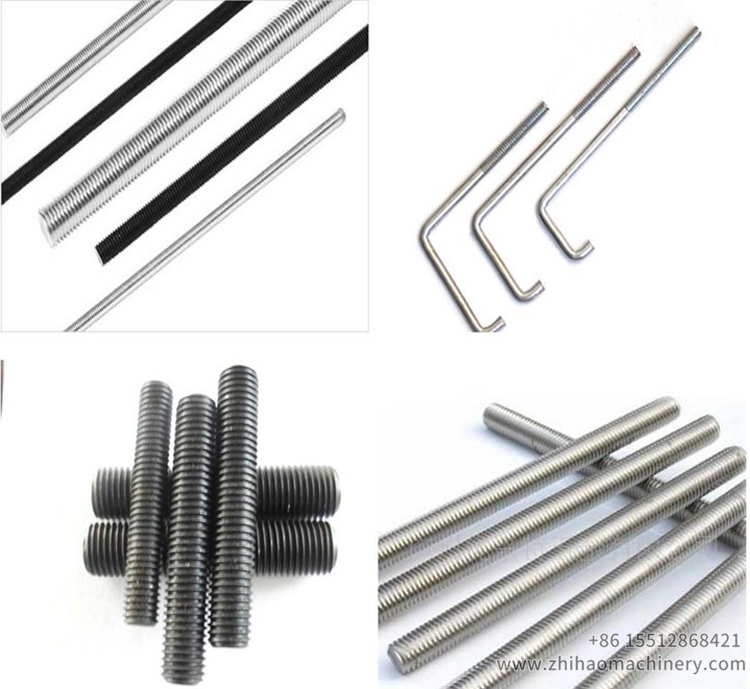

Finished workpiece:

If have more questions for threaded rod bar threading machine, pls contact us freely.

Email: sales@zhihaomachinery.com

Whatsapp: +8615512868421
