Thread rolling machine for 2-head bolts

Thread rolling machine for 2-head bolts

Lubrication system

Electronic lubrication, automatic setting, automatic refueling

Stroke adjustment

Easy to adjust, strong stability

Synchronous drive shaft

Adjustable mounting bracket

Can be installed at any angle

The rolling wheel bracket adopts double-disk bearings, heat treatment in the air, high hardness and durable

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

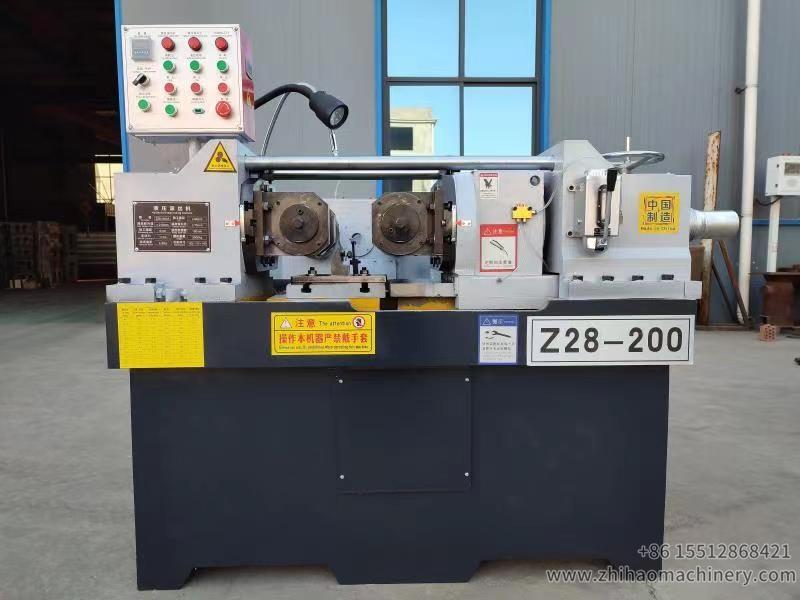

Model Z28-200 Thread rolling machine for 2-head bolts:

Rolling thread range Diameter 64mm

Max thread pitch 6mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 210mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9s

Spindle drive power 11kw

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1900*1700*1450mm

Weight 2500kg

Package and Delivery:

If have more questions for Thread rolling machine for 2-head bolts, pls contact zhihaomachinery freely.
