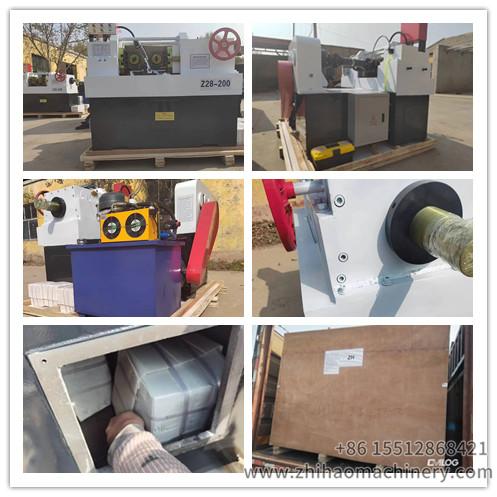

Z28-200 heavy type hydraulic 2 axis thread rolling machine for Mexico customer

Technical parameter for model Z288-200 heavy type thread rolling machine:

Rolling thread range Diameter 80mm

Max thread pitch 8mm

Spindle angle ±10°

Max rolling pressure 300kn

Spindle RPM 22/28/35/45/56/70rpm

Roller size range Outside diameter 220mm

Hole 75mm

Max width 150mm

Rolling time 0.1-99.9s

Rest time 0.1-99.9ss

Spindle drive power 11kw/6 grade

Hydraulic transmission power 5.5kw

Cooling pump power 90w

Dimension 1950*1700*1550mm

Weight 2800kg

Advantages for hydrualic thread rolling machine:

Thread Rolling Machine Roller Type are with two-die or three-die. It is regarding to the infinite work surfaces. They generally run through the combination of radial and while thread feeding. It is different from Thread Rolling Machine Flat type, the Roller Type thread the metal through multiple passes by rolling it. Usually, there will be a roller support or rest bar set in the middle to hold the stock on the two-die thread rolling machine. As for three-die one, rollers set 120 degrees between each other. All rollers can move radially so the work piece is maintained at the center during threading process.

If have any more request, pls contact zhihaomachinery freely.

our 2 axis thread rolling machine with high quality and low price.
